Tactile Switches: Wiring, Debouncing, and PCB Design

Quick Answer: A tactile switch is a momentary, normally open push button that uses a metal dome for physical click feedback. Two-pin switches close one connection when pressed; four-pin switches pair two internally connected terminals that bridge together on actuation.

Correct wiring needs a pull-up or pull-down resistor, and correct operation needs debouncing to filter the brief contact chatter each press produces.

Key Takeaways

• A tactile switch closes a normally open contact only while pressed, and its click comes from a flexing dome, not a separate electrical mode.
• Four-pin tactile switches pair terminals internally, so a quick multimeter check before wiring prevents a rotation error from creating a permanent short.
• Debounce methods trade response time against component count, and the right choice depends on the specific switch, not one fixed value.

Selecting and wiring a tactile switch seems simple until pin configuration, pull resistors, and contact bounce start affecting reliability. A tactile switch, sometimes called a tactile push button, is the small momentary control behind most reset buttons and compact user interfaces on a circuit board. This guide covers how it works, how to wire and debounce it, and what to check when selecting a footprint for production.

What Is a Tactile Switch and How Does It Work?

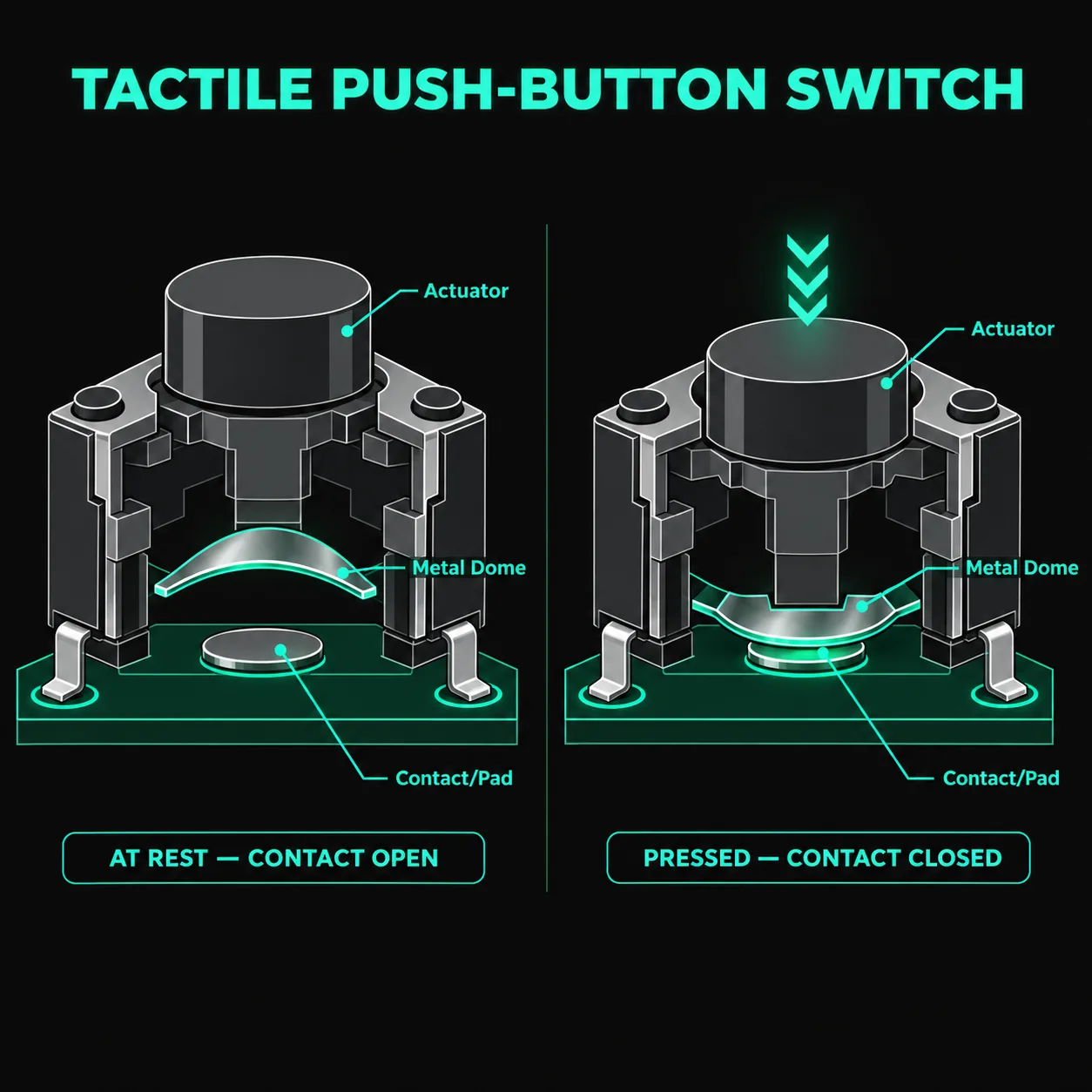

A tactile switch is a momentary, normally open push button. Under the cap sits a curved metal dome that snaps downward when pressed. The movement closes the circuit and creates the click associated with a tactile switch.

Tactile feedback describes the physical sensation of the dome flexing, not a separate electrical mode. Electrically, a tactile switch is simply a contact that stays open when idle and closes only while actuated.

A few specifications distinguish one tactile switch from another:

• Actuation force: the force needed to trigger the dome, in grams-force (gf); light switches sit around 100 to 160 gf, while stiffer switches run 260 gf or higher.
• Travel: the actuator's movement before the dome snaps, typically a fraction of a millimeter.
• Electrical ratings: the voltage and current the contacts carry directly, usually modest values suited to logic-level signals.
• Mechanical life: the rated actuation cycles before contact resistance or feel degrades, from roughly 100,000 to over 1,000,000 depending on the part.

A latching switch stays in its new state until pressed again, while a tactile switch returns to open as soon as the finger lifts. The momentary switching action suits reset pulses and single presses rather than persistent on/off states.

Tactile Switch Pinouts and Wiring

Tactile switches ship in two-pin and four-pin arrangements, and misreading the internal pin relationships is a frequent wiring mistake.

Two-Pin and Four-Pin Switches

Two-pin and four-pin tactile switches differ mainly in their internal terminal connections.

• A two-pin switch has one leg on each side of the dome. The connection stays open while the switch is idle and closes when the button is pressed.
• A four-pin switch has two legs on each side. The two legs on the same side are internally connected at all times. Pressing the button connects one side to the other. The extra legs primarily provide mechanical stability.

Before wiring an unfamiliar four-pin switch, check the pairing with a multimeter: whichever adjacent leg pair already reads continuous with the button unpressed is the internally bonded side.

Rotating a four-pin footprint by 90 degrees is a common layout mistake. An internally connected pair can then land across the input and reference lines, so the connection reads closed regardless of actuation. Always confirm pin numbering against the datasheet before finalizing rotation.

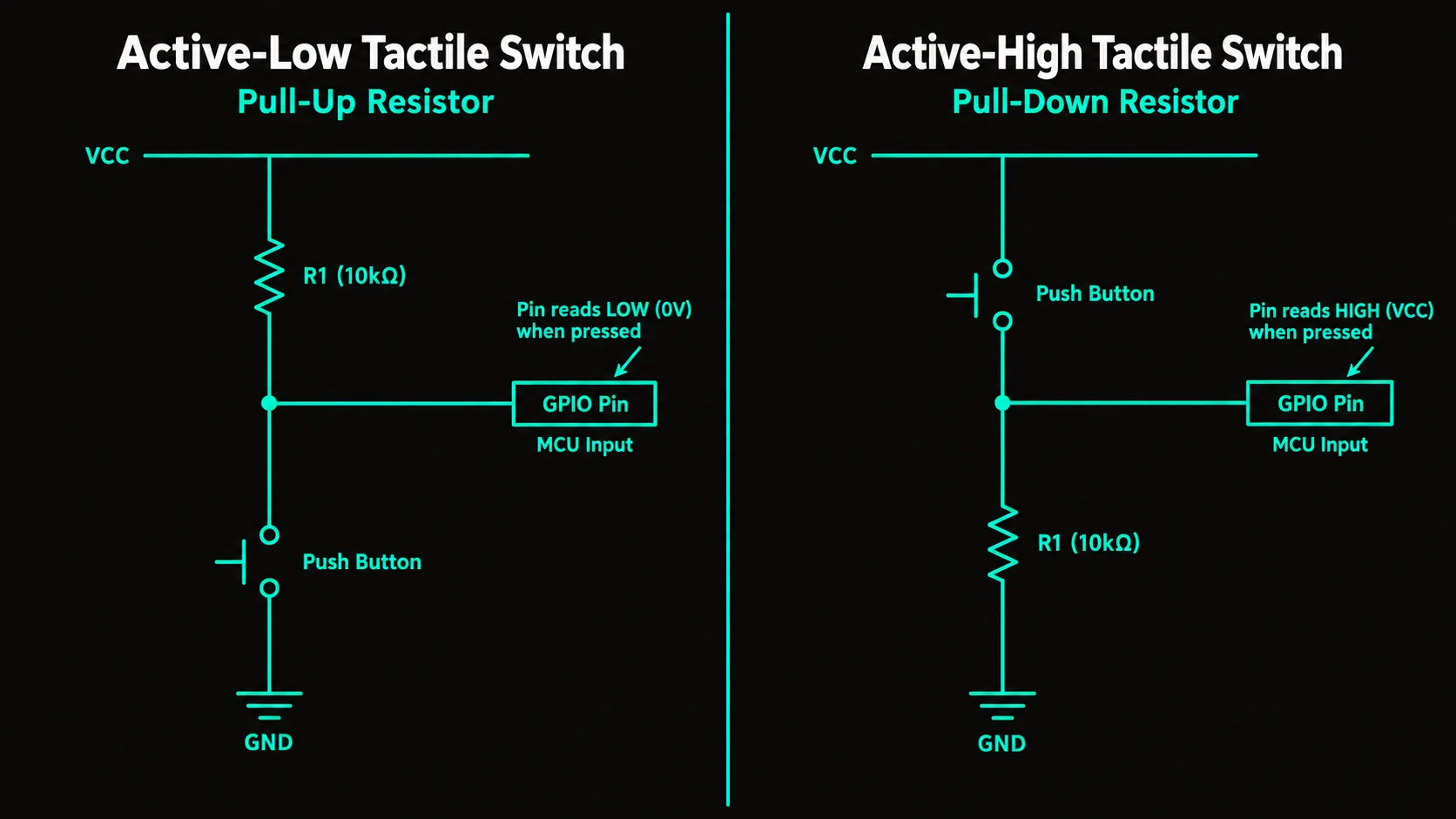

Active-Low vs. Active-High Tactile Switch Wiring

Active-low is the more common style, since many microcontrollers, including Arduino boards and ARM Cortex-M boards, offer a configurable internal pull-up resistor that removes the need for a discrete external part.

How to Debounce a Tactile Switch

A mechanical contact does not close cleanly. The dome bounces against the pad several times before settling, and a microcontroller can register one press as several if left unfiltered.

Tactile Switch Debouncing Methods

Software methods cost no extra parts and suit a single prototyping button. Hardware methods remove debounce timing from the microcontroller. Such methods become more useful as the number of buttons or production volume increases. The right resistor, capacitor, and delay values depend on the specific switch, so treat any figure as a starting point to verify on the bench.

Choosing a Tactile Switch for a PCB

Selecting a tactile switch is a mechanical decision as much as an electrical one, since the footprint, enclosure cutout, button cap, and PCB location all depend on each other.

Tactile Switch Selection Criteria for PCB Design

Use the manufacturer's published footprint rather than a generic reference drawing. Pad spacing and courtyard dimensions can differ between switch series with the same nominal package size. An incorrect footprint can cause poor solder joints, mechanical movement, or assembly problems.

PCB Layout and Testing Best Practices

Good tactile switch placement starts with the enclosure, not the schematic. A few habits catch most switch problems before a board reaches manufacturing:

• Placement: align the switch beneath the enclosure opening so the actuator travels straight without binding.
• Trace routing: keep the switch trace short and away from noisy nets like switching regulators.
• ESD protection: add a series resistor, a capacitor to ground, or a TVS diode on any user-accessible switch.
• Test points: add one on the switch signal line for easier test access.
• Clearance: verify courtyard and actuator height against neighboring parts and the enclosure boss in 3D.
• Orientation: confirm the footprint matches the datasheet pinout, especially on four-pin switches.
• Debounce testing: confirm bounce settles within the expected window on a scope or logic analyzer.
• 3D review: compare the board model against the enclosure CAD before fabrication.

Flux can combine several of the PCB checks above in one workflow: search the parts library for a switch, drop its symbol and footprint onto the canvas during schematic capture, then let automated rule checks and the 3D view catch common PCB design mistakes before fabrication.

Build Your Tactile Switch Circuit in Flux

A working tactile switch circuit depends on the pinout, pull resistor, debounce approach, and footprint all fitting together. Flux brings schematic capture, verified footprints, and collaborative PCB review into one browser-based environment to check that work before fabrication. Start your next tactile switch layout in Flux.
