How to Design a PCB Footprint (Step-by-Step Guide)

PCB footprints define the physical layout of components on a printed circuit board. They specify pad sizes, spacing, hole diameters, and component outlines so parts can be soldered correctly during assembly.

Even with a correct schematic and routing, an inaccurate footprint can lead to poor solder joints, misalignment, or components that cannot be assembled at all. Footprint design requires matching manufacturer datasheets, accounting for tolerances, and following industry standards to ensure reliable assembly.

This guide explains how to create accurate PCB footprint designs that align with component specifications and manufacturing requirements.

Key Takeaways

• Accuracy is key: A footprint must exactly match the physical dimensions of a component to ensure proper soldering and mechanical fit.
• A footprint is a multi-layer asset: Beyond copper pads, a standard footprint includes a silkscreen for orientation, a courtyard to prevent component collisions, and a 3D model for mechanical fitment checks.
• Follow the standards: IPC-7351 is the industry benchmark for land patterns, providing formulas that account for manufacturing variances.
• Verification is the final step: Check your footprint against a 1:1 printout or a 3D model before finalizing the design.

What Is a PCB Footprint?

A PCB footprint, often referred to as a "land pattern," is a collection of copper pads and mechanical markings on a circuit board. It defines the physical area a component will occupy and provides exposed copper areas (not covered by solder mask) where solder can bond the component leads to the board.

While the footprint defines the copper pads (the "land") where the pins of a component will attach, it also includes non-conductive layers like the silkscreen for identification and a courtyard to prevent parts from bumping into each other.

Footprint vs Schematic Symbol

It is easy for beginners to confuse these two assets, but they serve entirely different purposes:

• Schematic Symbol: Used in the schematic, this is a logical representation of a component. It shows electrical connections (pins like VCC, GND, or signals) without reflecting the physical shape.
• PCB Footprint: This is a physical representation. It must match the actual dimensions of the component's body and pins.

A single component, like a common resistor, will have one schematic symbol but could have dozens of different footprints depending on whether it is a surface mount footprint (SMD) or a through-hole type.

Key Elements of a PCB Footprint

Every professional land pattern design consists of several layers that provide information to the manufacturer and the assembly house:

1. Pads: The copper areas where component leads are soldered. These are designed based on the pin dimensions plus extra space around the lead to form a solder fillet: a small, curved buildup of solder at the joint (heel, toe, and sides) that improves mechanical strength and ensures a reliable electrical connection.
2. Silkscreen: The ink layer that shows the component outline and often a "Pin 1" indicator. This helps technicians or robots place parts in the correct orientation.
3. Courtyard: An invisible boundary that defines the minimum clearance required around a component. It acts like a placement keepout in PCB design software to prevent components from being placed too close together, and is also used in assembly data to ensure there is enough space for pick-and-place machines, rework tools, and inspection.
4. Assembly Layer: A detailed drawing used for assembly instructions, often including a simplified 3D body outline.

How to Create a PCB Footprint Design

Creating a component footprint PCB asset requires a systematic approach to ensure mechanical accuracy. Follow these steps to create a PCB footprint design in Flux.

1. Datasheet Analysis and Unit Setup

Before opening your editor, identify the manufacturer's "Recommended Land Pattern." Note the units used; while most modern components use millimeters (mm), legacy parts may use mils or inches. Professional tools allow you to enter coordinates in any unit (e.g., "0.5mm" or "20mil"), automatically handling the conversion to ensure precision.

2. Initialize the Footprint and Add Pads

In modern, object-oriented editors, footprints are organized hierarchically.

• Create the Node: In the "Objects" tab of the right-side panel, locate the "Footprint" node. If it doesn't exist, click on the three dots of the "Root" object and add a Footprint.
• Add Pads: Right-click the footprint object and select Add \> Pad. Click to place a pad on the canvas for every terminal defined in your schematic.
• Naming for Connectivity: To ensure the footprint links correctly to your schematic symbol, match the pad designators (e.g., #1, #GND, #VCC) exactly to the pin names in the schematic.

3. Precise Pad Positioning and Selection

Alignment is the most common failure point in design of land patterns.

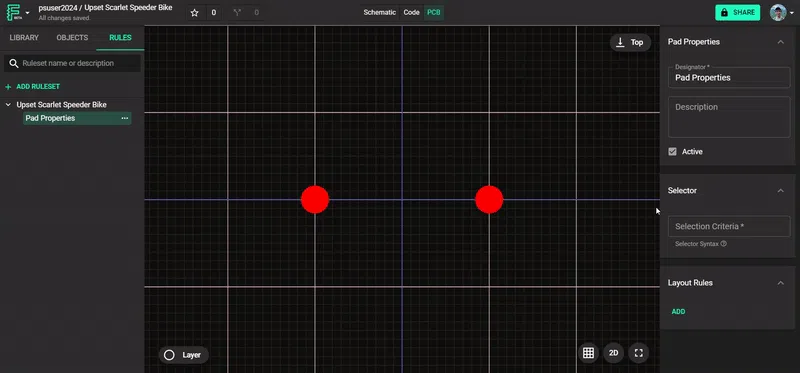

• Precise Placement: While you can drag and drop, for high-accuracy parts (like fine-pitch QFNs), select the pad and navigate to Object Specific Rules. Enter exact X and Y coordinates into the Position rule.
• Batch Editing with Selectors: If you need to move or modify a group of pads, use selectors. Use the "pad" selector to target every pad in the footprint, or use the "#Designator" syntax (e.g., #1, #2, #3) to apply rules to specific pins simultaneously.

4. Defining Pad Geometry and Type

Once positioned, define the physical copper area.

• Size and Shape: Select your pads and add the Pad Size and Pad Shape rules. Shapes typically range from rectangular and circular to "oblong" for specific SMT requirements.
• SMD vs. Through-Hole: For surface-mount designs, the Pad Type rule is usually set to top or bottom copper. For through-hole components, adding the "Pad Type" rule allows you to define the drill hole size and plating requirements.

5. Adding Silkscreen and Mechanical Markings

The silkscreen provides orientation data for assembly.

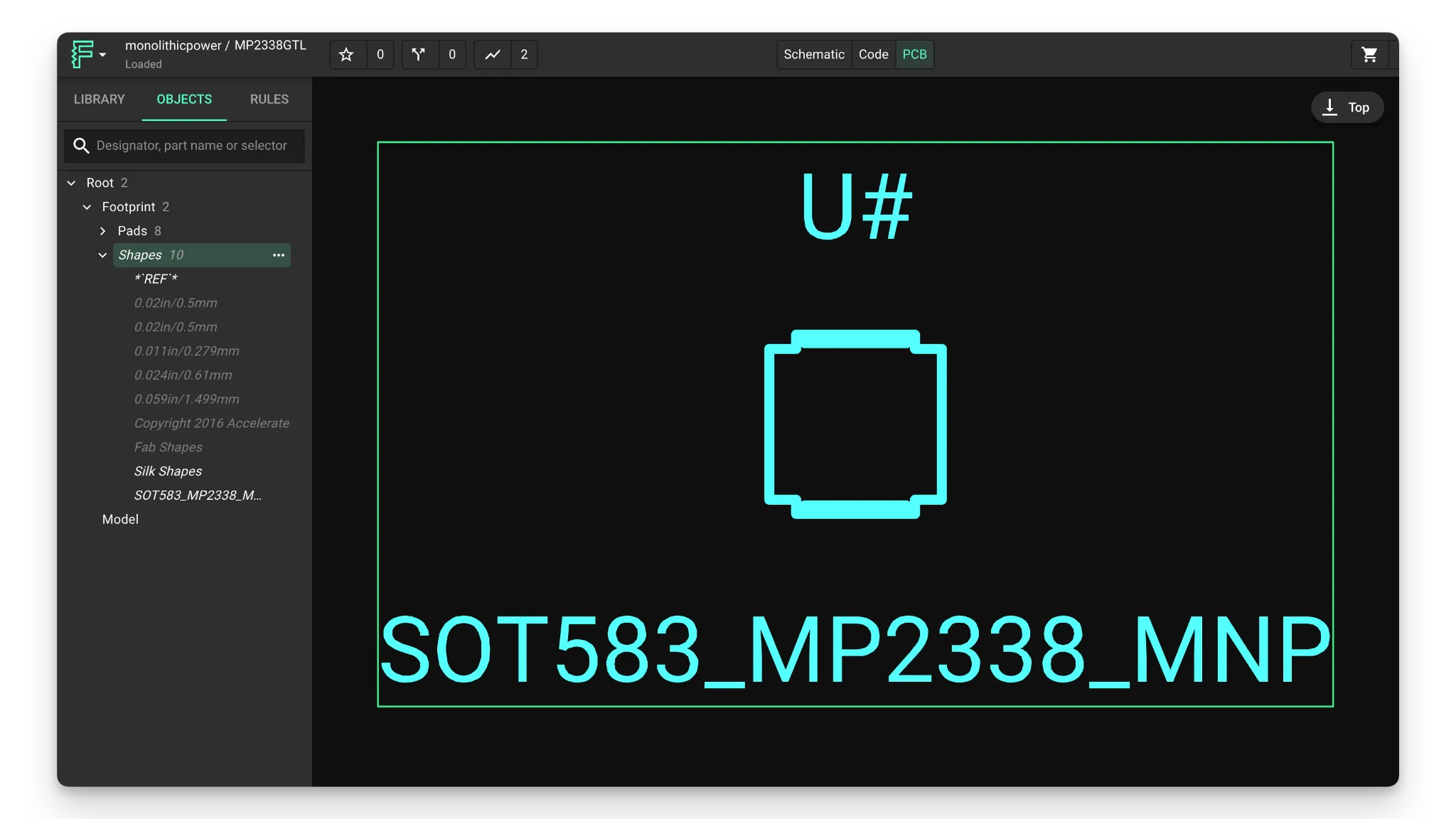

• Drawing Outlines: Add a Silk line object. Use the Shape Start and Shape End rules to define the exact coordinates of the component body outline. This ensures the ink does not overlap copper pads, which could cause soldering issues.
• Add Text: To add a Text object, right-click on the footprint, hover over "Add", and select "Text." Add the Content rule, enter the desired text, and position the text appropriately.

6. Setting the Footprint Origin

The origin point (indicated by the intersection of two blue lines) is the reference position used when placing the component on a board.

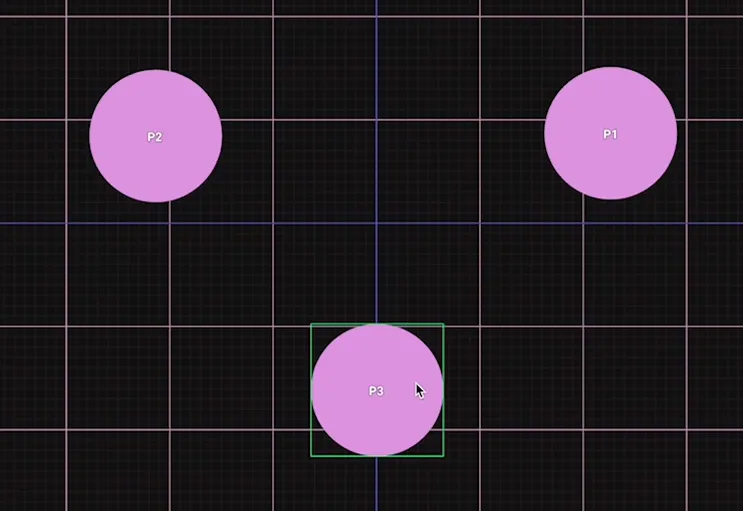

• Centered Origin: Position the pads symmetrically around the (0,0) coordinate. This is standard for most multi-pin ICs. This makes the component's location rule correspond to the center of the component.

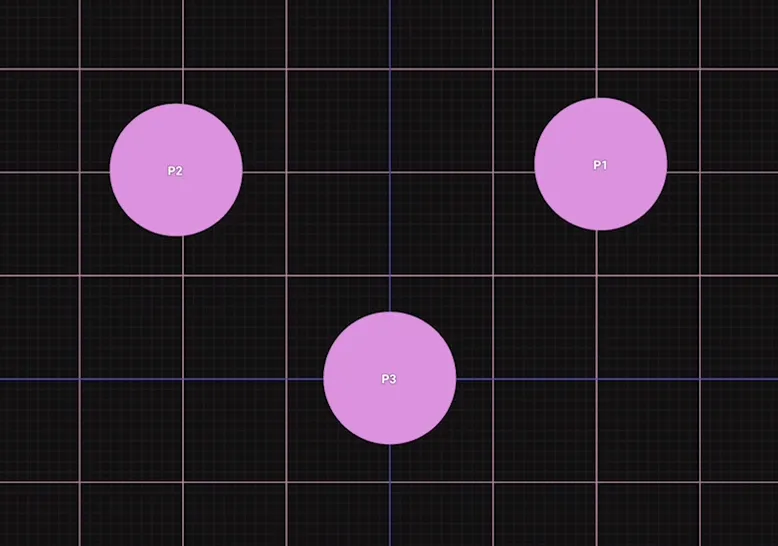

• Pin-Centered Origin: Position a specific pad (usually Pin 1) exactly at the origin. This is often preferred for specialized connectors or mechanical components where a specific mounting point is the primary reference.

IPC Standards for Footprint Design

The industry standard for land patterns is IPC-7351. This standard provides three different "density" levels for footprints:

• Density Level A (Maximum): Used for rugged or low-density designs where there is plenty of board space.
• Density Level B (Nominal): The most common choice, offering a balance between solder joint strength and board density.
• Density Level C (Minimum): Used for extremely high-density boards, such as smartphones, where space is at a premium and solder fillets must be tiny.

Most footprint creation guide tools follow Level B by default.

Common Footprint Design Mistakes

• Ignoring the Courtyard: Always define a courtyard layer. Without this boundary, components may be placed too close for the assembly robot's nozzle to operate.
• Incorrect Hole-to-Lead Ratio: For through-hole parts, the drill hole must be large enough to accommodate the lead plus plating, but small enough to allow for a strong capillary solder action. A common rule of thumb is to size the finished hole about 0.20–0.30 mm larger than the lead diameter (roughly 8–15% larger), which accounts for plating thickness, manufacturing tolerances, and ensures proper solder flow through the hole.
• Pad-to-Mask Mismatch: Ensure the solder mask expansion (the gap in the green coating) is slightly larger than the copper pad to account for manufacturing misalignments.

How Modern PCB Tools Simplify Footprint Creation

Manually drawing every pad and line is slow and prone to human error. Modern design platforms like Flux are changing PCB footprint design by focusing on reuse and community-driven verification.

In Flux, engineers can access a vast library of pre-verified, high-quality footprints. Because the tool is browser-based and collaborative, if an error is found in a footprint, it can be corrected for the entire community. Furthermore, Flux's built-in design rule checks (DRC) work with a footprint's courtyard to prevent placement collisions in real-time, allowing you to focus on the circuit architecture rather than the microscopic details of pad geometry.

FAQs

What is the difference between a footprint and a land pattern?

Technically, a footprint is the physical area a part takes up, while a land pattern is the specific copper pad arrangement. In general conversation, engineers use the terms interchangeably.

Should I use millimeters or mils for footprint design?

Always use the units provided in the component datasheet. Most modern components are designed in metric (mm). If you must convert, use a high-precision calculator to avoid rounding errors.

What is a "Pin 1" indicator?

It is a dot, notch, or triangle on the silkscreen and the physical component package that identifies the first pin. This is vital for the correct orientation of integrated circuits.

How do I verify my PCB footprint design before ordering?

A popular "low-tech" trick is to print your layout on paper at a 1:1 scale and physically place the components on the paper. If the pins align with the drawing, your footprint is likely correct.
