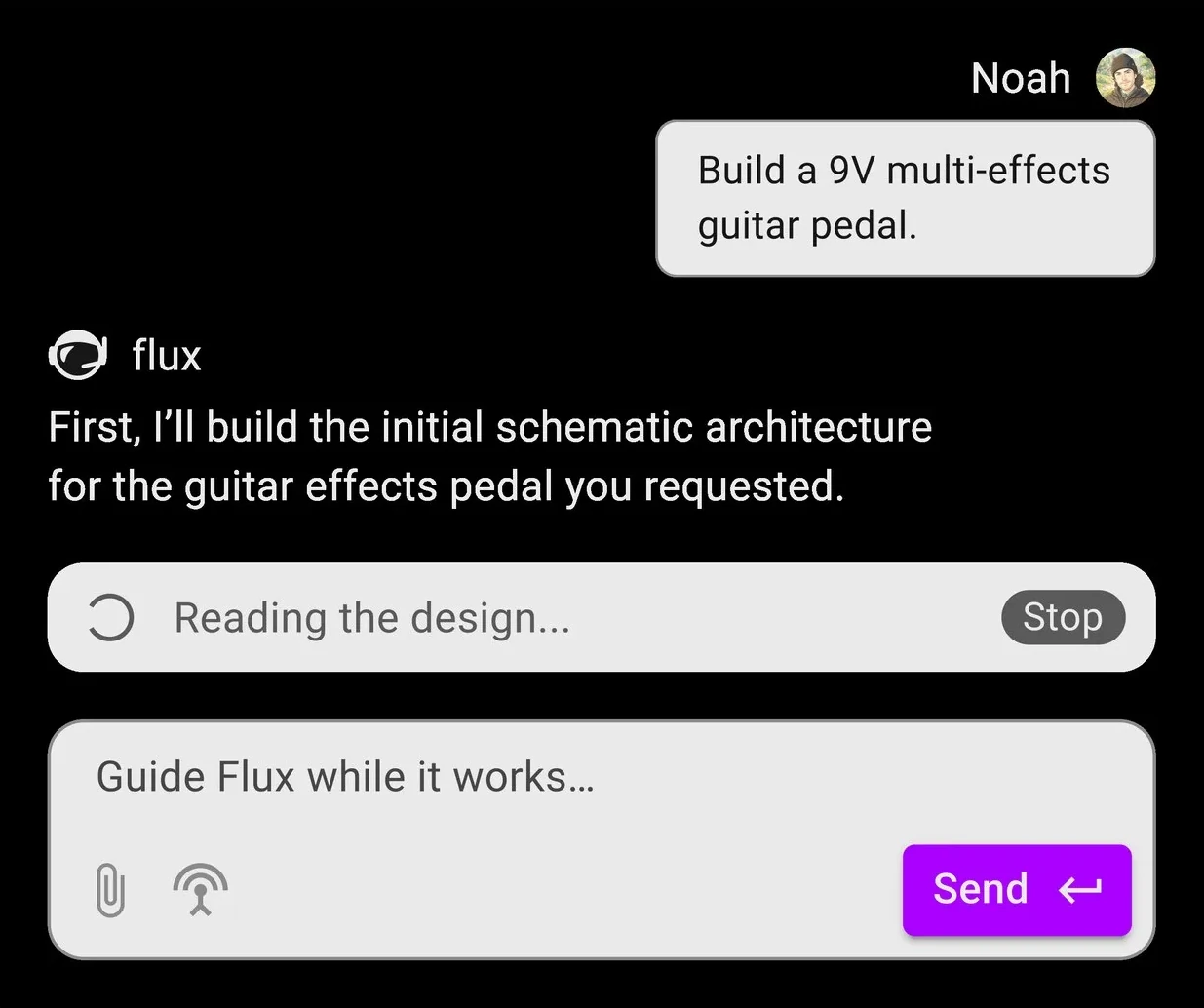

AI & Prompt Engineering for Hardware

Staring at a monitor while tracing tiny lines and cross-referencing blurry PDF datasheets consumes hours of engineering effort. In short, designing hardware typically takes a significant amount of time, but that’s starting to change. Today, LLM-driven schematic generation is transforming the schematic design workflow entirely. Flux Copilot generates schematics from basic descriptions, suggests component values based on specific design constraints, and runs automated reviews to catch errors humans sometimes miss. The quality of the output schematic depends entirely on the input quality. Consequently, knowing how to prompt and direct Flux Copilot well isn't optional, it's what determines whether engineers actually capture the speed and efficiency gains the tool promises.

Who This Is For

• Hardware engineers looking to speed up the schematic capture process.
• PCB designers wanting to automate repetitive placement tasks.
• Firmware developers needing quick breakout boards for testing code.
• Engineering students learning how to read datasheets and select components.

What You Will Learn

• Writing structured instructions that produce usable schematics quickly.
• Using iterative refinement for complex multi-block circuits.
• Applying automated assistants for component research and documentation.
• Evaluating artificial intelligence claims from electronic design automation vendors.

The Rules of AI & Prompt Engineering for Hardware

Circuit boards operate based on strict physical rules. As a result, writing prompts for electronic design automation requires precision. A vague request produces a vague schematic. Conversely, precise instructions generate designs very close to production readiness. For example, requesting a temperature sensor circuit requires specific details, such as:

• Target IC part numbers
• Exact power rail voltages
• Specific interfaces (like SPI or I2C)
• Design intent (such as prototype vs. production)

Specific constraints keep the design grounded in reality. For instance, a prototype board usually prioritizes easy-to-solder components, whereas a cost-sensitive production run requires cheaper parts. The guides provide templates and worked examples for exactly such scenarios. Beyond templates, they also walk through the common mistakes engineers run into, from under-specifying requirements to mixing schematic rules with physical layout concerns inside a single prompt. Learning to avoid these pitfalls, and to write instructions correctly from the start, saves hours of frustration down the line.

Walking Through the Full Workflow

Every great project starts with a basic idea, but moving from a bare concept to a finished printed circuit board requires multiple steps. The guides below trace the complete Flux Copilot workflow, start to finish. A typical AI-assisted design process includes:

1. Generating the initial schematic from a text description
2. Refining the circuit iteratively block by block
3. Selecting specific components using real-time supply chain data
4. Running automated design reviews to catch errors
5. Placing components and auto-routing the board with AI Auto-Layout
6. Finalizing the bill of materials (BOM) ahead of manufacturing

Component selection and BOM deserve special attention here: pricing, availability, and lead times shift constantly, and finding an in-stock microcontroller often takes longer than designing the sub-circuit around it. Pulling in real-time supply chain data during the design phase, rather than after, helps designers avoid late-stage revisions. Breaking complex architectures into manageable blocks makes this easier still, since large systems become far simpler to source and validate once divided into smaller sections. Before committing to a physical layout, engineers should validate the generated schematic against the original design intent; catching a wiring error on-screen costs minutes, but catching it on a fabricated board costs weeks.

Why Iteration is the Secret to Success

Writing instructions for hardware requires a conversational approach. Rarely does a single sentence produce a flawless motherboard. Instead, engineers build circuits piece by piece.

For example, a designer might start by requesting a power management IC, and once the power supply looks correct, request the microcontroller. Such a step-by-step method mirrors traditional engineering workflows perfectly. The only difference is the speed of execution. Instead of drawing wires manually, the user types a command, and the assistant handles the repetitive drawing tasks. Consequently, engineers can redirect that saved time toward system architecture decisions instead of manual drafting.

Sometimes the generated circuit contains errors. Finding such issues is part of the normal review process. Common output mistakes include:

• Incorrect pull-up resistor values: the model tends to default to a generic value (often 4.7kΩ or 10kΩ) without accounting for bus speed or the number of devices actually on the line, since that depends on the physical board rather than the logical connection.
• Floating pins that require grounding: enable, mode-select, and other "don't care" pins are easy to omit because the schematic's logical netlist works without them. However, the assistant has no way to know they need a defined state unless you say so.
• Missing decoupling capacitors on power rails: decoupling isn't part of a component's logical connectivity, so it's a detail very likely to get dropped unless it's explicitly requested rather than assumed as implied best practice.

Artificial intelligence does not replace the engineer; rather, the technology is simply a very fast drafting assistant. The human designer retains full responsibility for the final product, so checking the output against the original datasheet is required. The included guides show exactly how to use automated design reviews to catch such common mistakes early.

Avoiding Common Formatting Mistakes

Formatting plays a surprisingly large role in output quality. More specifically, vague prompts lead to hallucinations, which occur when the software invents a component or a connection that does not exist. Providing specific constraints prevents such errors. To structure inputs for maximum reliability, engineers should apply a few standard rules:

• Separate power requirements from signal routing instructions clearly
• Use bulleted lists inside the prompt to break down complex ideas
• Provide one single constraint per bullet point

The assistant reads each bullet point as a specific rule. Accordingly, the generated circuit aligns closer to the original vision. The AI & Prompt Engineering hub details exactly how to structure such inputs for better results.

An Example: Vague vs Specific

Consider two ways of asking for the same circuit:

• A vague prompt like "add a temperature sensor to my board" forces the assistant to guess at nearly every parameter: which interface, which voltage domain, which package, even which failure mode matters most. Flux Copilot will still generate something, but it fills every gap with a default assumption, and those assumptions rarely match the rest of the design.
• A specific version of the same request looks more like the following: "Add a TMP117 temperature sensor. Connect to the 3.3V rail with a 100nF decoupling capacitor placed within 5mm of VDD. Use I2C on the existing bus (address pins tied for 0x48), with 4.7kΩ pull-ups already present on SDA/SCL. Package: SOT-563 for a prototype build; note if a DFN alternative fits within a 2mm keep-out from the board edge."

None of that extra length is filler. Every added phrase closes off a specific guess the model would otherwise make: the exact part rather than a category, the rail and its decoupling, the bus address and existing pull-up state, and a footprint constraint tied to the mechanical envelope. The specific values will change with every circuit, but the pattern doesn't. So read the datasheet before you write the prompt, not after you see the output. That's the difference the guides below are built around.
