PCB Constraint Management: How Engineers Control Layout Rules

Quick Answer: PCB constraint management is the process of defining and enforcing design rules that govern routing, spacing, impedance, manufacturability, and signal integrity requirements throughout PCB layout.

Key Takeaways

• By setting numerical boundaries for a routing engine, constraint management prevents errors in real time rather than just reporting violations after layout completion.
• Common constraint failures such as creating conflicting hierarchical rules, omitting physical manufacturing limits, and overusing design exceptions frequently lead to false errors and unbuildable boards.
• Integrating automated rule validation directly into the active layout workflow prevents expensive redesign cycles by continuously enforcing physical and electrical limits as the board is routed.

What Is PCB Constraint Management?

When you lay out a printed circuit board (PCB), the software needs a map of what is physically and electrically allowed. PCB constraint management is that map. It is a systematic method for assigning numerical limits to different nets, components, and board regions.

Engineers define PCB layout constraints to establish boundaries for the routing engine and the human designer. Instead of manually checking trace widths or clearance gaps, designers program the Electronic Design Automation (EDA) tool to enforce specific parameters automatically. Such an approach forms a major part of the constraint-driven design. The constraints relate directly to Design Rule Checks (DRC), yet they operate differently. In contrast, A standard DRC scans the board after routing to find errors, whereas a constraint-driven system guides the design process in real time. It prevents violations during layout instead of reporting them afterward.

Why Constraints Matter in Modern PCB Design

Hardware engineers face shrinking board real estate and densely packed components. Tracking clearances by eye or relying on memory inevitably fails.

Consider, for example, how a simple FR4 substrate behaves at high frequencies.

• Dielectric losses and parasitic capacitance turn basic traces into complex RF systems.
• High-speed interfaces make strict rules basic requirements.
• Protocols like DDR memory, PCIe, and USB operate at incredibly high frequencies.
• At gigahertz speeds, copper traces act as transmission lines.
• A millimeter of length mismatch on a PCIe differential pair can wreck signal timing.
• DDR buses require precise length matching across dozens of data lines so signals arrive simultaneously.

Forcing limits into the layout software ensures the final design aligns with the factory's physical capabilities.

Further manufacturing requirements also dictate strict boundaries. A fab house can only reliably etch traces down to a specific width or drill vias of a certain diameter.

Common Types of PCB Constraints

PCB design constraints fall into several categories based on their function. Notably, however, modern designs blur the lines between mechanical engineering and electrical performance.

• Electrical constraints: Control the behavior of signals. Such parameters govern propagation delay and maximum trace lengths. If a signal travels too far, the voltage drop might cause logic errors at the receiver.
• Routing constraints: Define the physical geometry of the copper. To enforce routing constraints PCB layout engines use minimum trace widths and clearance gaps to guide the tool. PCB routing rules protect traces from arcing or shorting.
• Differential pair constraints: Keep paired signals tightly coupled. Such guidelines manage phase tolerance and the exact distance between the two lines, ensuring noise rejection works properly.
• Length matching: Ensures multiple signals travel the exact same distance to prevent timing skew on parallel buses.
• Impedance constraints: Force traces to maintain a specific target resistance, such as 50 ohms for single-ended RF lines or 90 ohms for USB.
• Manufacturing constraints: Protect the board's physical production. Such limits define minimum drill hole sizes, solder mask clearance, and annular ring requirements. Fab houses require exact tolerances, and failing to meet them guarantees rejected boards.

PCB Constraint Example Applications

Constraint-Driven PCB Design Workflows

Adopting a constraint-driven workflow changes how engineering teams approach layout.

1. Define rules: The engineer sets electrical and physical limits in the schematic phase.
2. Layout design: The PCB designer places components and begins routing traces. The software actively restricts invalid geometry.
3. Automated validation: The design tool continually compares the layout against the established rules.
4. Review violations: Engineers review any flagged errors and either adjust the layout or document a valid exception.

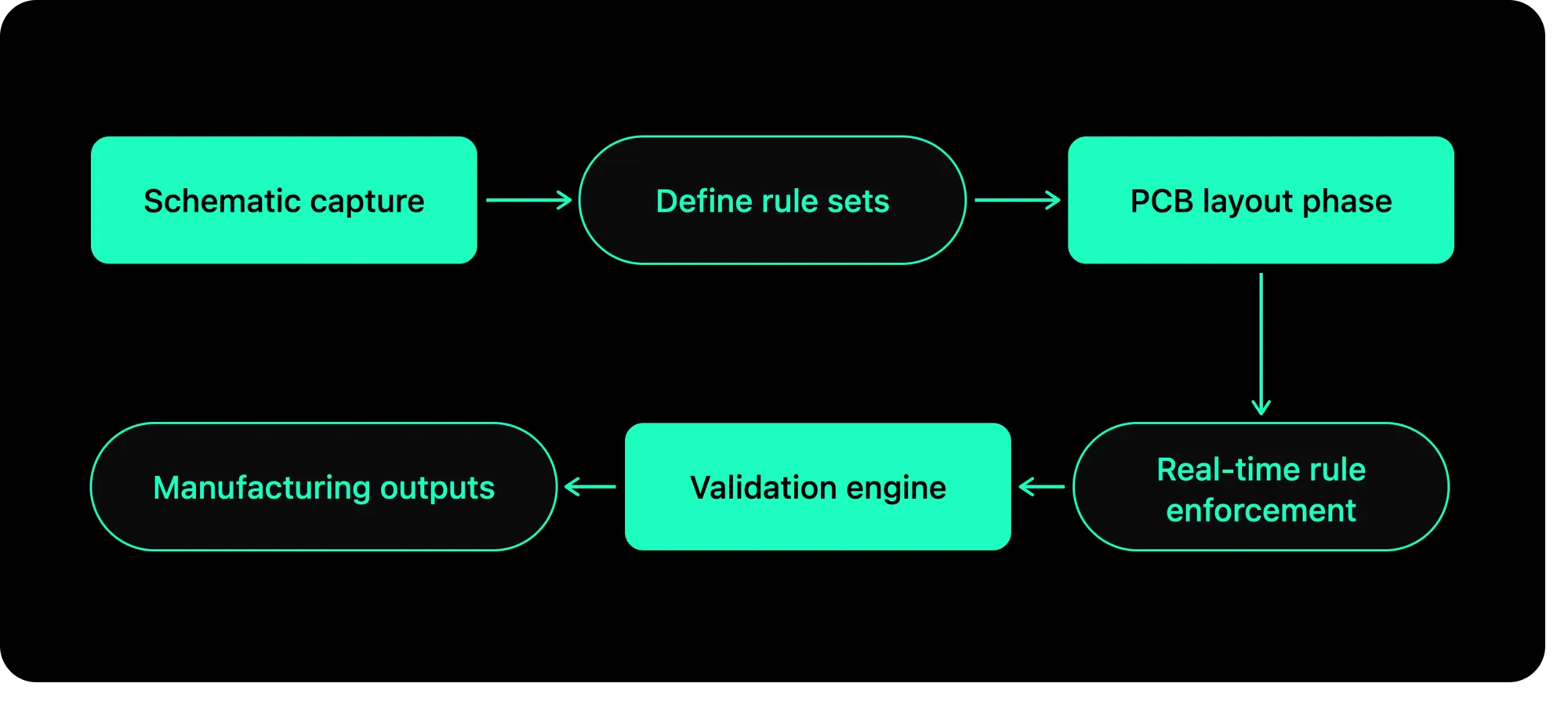

Workflow Diagram

Constraint Management Guidelines

To get the most out of a constraint manager, engineers follow specific guidelines.

• Establish rules early: Define spacing and high-speed requirements during schematic capture. Waiting until the layout phase just causes confusion.
• Use hierarchy: Group nets into specific classes. Apply rules to the entire net class rather than individual nets. For example, a DDR data bus class simplifies management.
• Document exceptions: Sometimes a rule must be broken for a valid mechanical reason. Always record why the exception was approved.
• Validate continuously: Do not wait until the board is finished to run the checker. Catch errors while routing.

Common Constraint Management Mistakes

Even experienced designers stumble when managing complex rule sets.

One frequent mistake is creating conflicting rules. For example, if a global routing constraint demands a 10-mil clearance, but a specific component footprint requires a 5-mil clearance, the software engine might freeze or flag hundreds of false errors.

Another common mistake involves excessive exceptions. Approving too many DRC violations trains the designer to ignore the warning system entirely. If a rule constantly generates false positives, fix the rule itself rather than ignoring the output.

Finally, engineers sometimes focus heavily on electrical requirements while missing manufacturing constraints. A perfectly tuned PCIe trace is useless if the fab house lacks the etching resolution to physically create it.

How Modern PCB Tools Manage Constraints

Modern EDA platforms use rule engines to enforce routing, spacing, differential pair, and length-matching requirements in real time. Additionally, there are cloud-native tools that enable multiple engineers to manage constraints simultaneously, making collaboration easier.

When teams need a modern approach to collaborative design, they turn to platforms like Flux. Flux brings schematic capture, layout, and simulation into the browser. Engineers define specific PCB design rules that sync instantly across the entire team. Such instant updates eliminate version control headaches.

Ready to take control of your next hardware project? Flux provides a modern, browser-based EDA platform designed for collaborative engineering. PCB constraint management becomes straightforward with real-time syncing and automated design checks. Build faster and catch errors early by starting your next schematic in Flux today.
