SMA Connectors Explained: Types, Applications, and PCB Design Considerations

Written by Gabriel Hacohen

Published - 7 min read

Illustration of SMA connectors and RF PCB mounting styles used for high-frequency signal connections.

An SMA connector is a threaded coaxial radio frequency (RF) connector commonly used for antennas, test equipment, and high-frequency PCB interfaces. Most systems utilize a 50 ohm SMA connector. Designers should verify the exact connector type, standard or reverse polarity, frequency rating, mounting style, PCB thickness, footprint grounding, and controlled-impedance transition requirements before final assembly.

Key Takeaways

  • The SMA family includes multiple genders and polarities; standard SMA and RP-SMA components lack physical compatibility.
  • An accurate SMA connector PCB footprint requires exact matching with the manufacturer's mechanical drawing and board thickness.
  • The RF launch, where the physical connector pin meets the PCB trace, is the most common source of impedance mismatch.

What Is an SMA Connector, and What Is It Used For?

SMA stands for SubMiniature version A. The SMA connector is a threaded coaxial RF connector utilized for high-frequency RF and microwave signals. Inside the housing, the center conductor carries the signal, while the outer conductor provides the return path and electromagnetic shielding. Engineers design the connector and a corresponding transmission line for a defined characteristic impedance. Common applications of the SMA connector include:

  • Wi-Fi and Bluetooth systems that use an antenna require an SMA antenna connector
  • Cellular and GPS tracking modules
  • Software-defined radios
  • RF development boards
  • Spectrum analyzers, oscilloscopes, and signal generators
  • Radar, telemetry, and industrial RF systems

SMA describes a broad connector family rather than one universal part. Frequency capabilities, mounting styles, gender, and polarity vary significantly between products. Consequently, visually similar connectors may lack mechanical and electrical compatibility.

SMA vs RP-SMA and Common Connector Types

Selecting the correct component requires understanding SMA vs RP-SMA configurations.

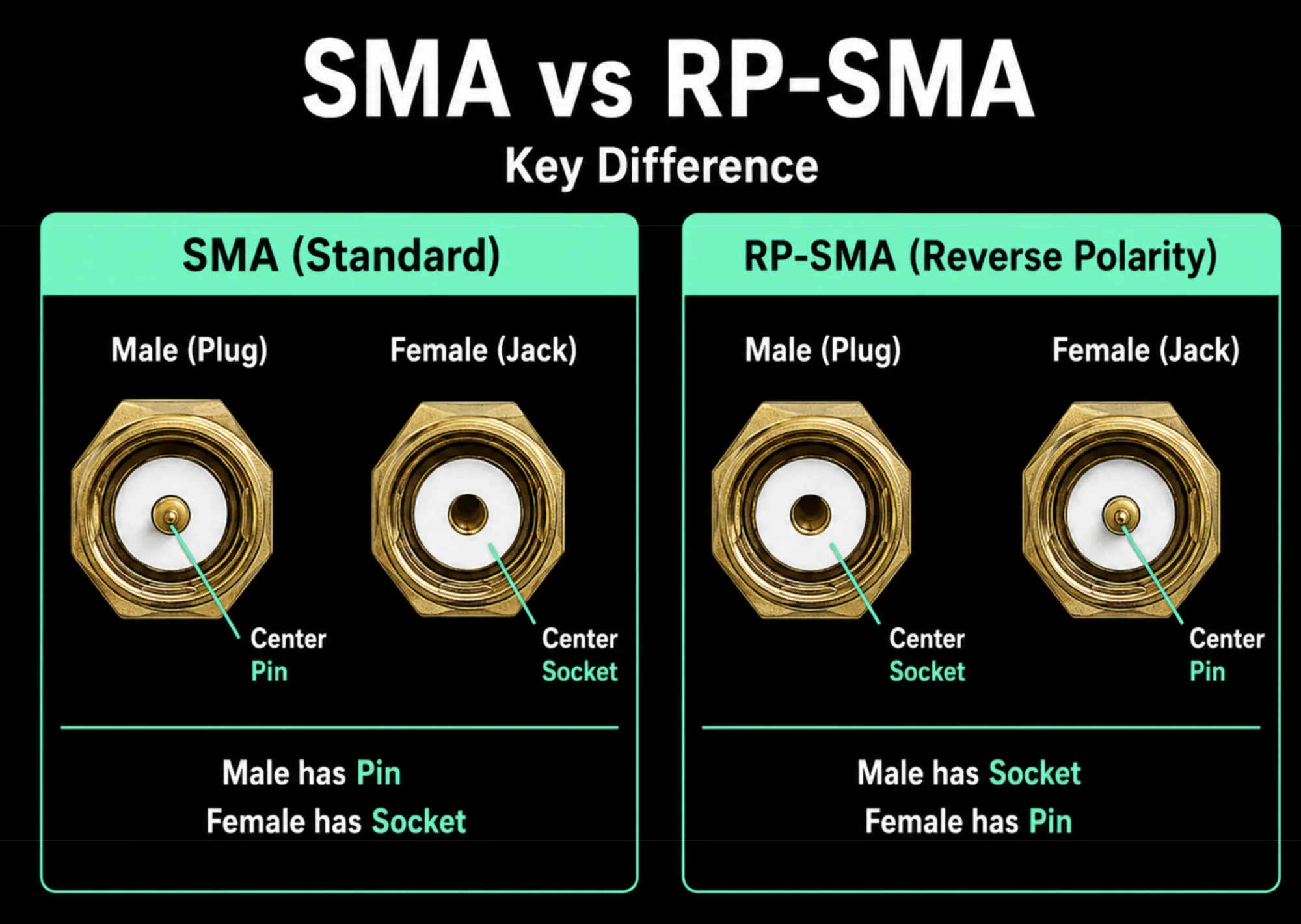

Key Difference of SMA vs RP-SMA connectors
Key Difference of SMA vs RP-SMA connectors

Standard SMA

Standard SMA utilizes the standard center-contact arrangement. A standard plug features inside threads and a male center pin. Standard connectors appear frequently in RF test equipment, cellular modules, and generic coaxial systems.

RP-SMA (Reverse Polarity SMA)

RP-SMA utilizes reverse-polarity center contacts. While the threaded body resembles standard SMA, an RP-SMA plug features inside threads with a female center receptacle (socket). Manufacturers originally developed RP-SMA for consumer wireless equipment to prevent users from attaching high-gain standard SMA antennas. RP-SMA and standard SMA lack interoperability. To avoid confusion, engineers should verify:

  • Plug (inside threads) versus jack (outside threads)
  • Standard polarity versus reverse polarity
  • Pin (male contact) versus socket (female contact)

Various SMA connector types exist for specific hardware integrations.

Common Connector Types and Mounting Styles

Mounting Method Typical Use Advantage Limitation
Cable-Mount Coaxial cable assemblies Connects external antennas Requires specialized crimping tools
Edge-Mount RF development boards Excellent high-frequency transition Must match PCB thickness exactly
End-Launch High-performance test boards Lowest insertion loss Requires precise board tolerances
Vertical Through-Hole Low-frequency RF modules High mechanical strength Poor performance at microwave frequencies
Surface-Mount High-density PCB mount SMA connector applications Automated assembly compatibility Vulnerable to mechanical shear stress
Bulkhead / Panel Metal enclosures Provides environmental sealing Requires internal cable routing to PCB

How to Choose the Right SMA Connector

Hardware engineers follow a strict selection workflow to ensure the chosen SMA PCB connector meets system requirements.

Selection Workflow Checklist:

Define the maximum operating frequency.
Confirm the required characteristic impedance (typically a 50 ohm SMA connector).
Choose standard SMA or RP-SMA based on the connector type already used by the device or antenna you're mating with
Verify plug or jack and pin or socket configuration.
Select cable, PCB, or panel mounting.
Confirm PCB thickness and connector geometry for edge-launch styles.
Review insertion loss, return loss, and VSWR limits.
Check power handling and voltage ratings.
Review operating temperature and environmental requirements.
Confirm enclosure and cable clearance constraints.
Check mating-cycle durability requirements.
Verify distributor availability and lifecycle status.

Furthermore, engineers must verify the SMA connector impedance, insertion loss, return loss, and VSWR using the exact manufacturer datasheet. The complete signal path includes the connector, the PCB launch, the coaxial cable, and the mating interface.

SMA Connector – PCB Footprint and Layout Best Practices

Designing an accurate SMA connector PCB footprint requires adherence to the manufacturer-recommended land pattern. Designers must verify the exact mechanical drawing and match an edge mount SMA connector to the intended PCB thickness. Proper footprint creation includes signal pads, ground pads, mechanical supports, courtyards, and keepout features. Furthermore, designers must check specific solder mask and solder paste recommendations. Reusing a generic SMA connector footprint without verification invites manufacturing failures. Implementing an optimal RF PCB layout requires specialized routing techniques. The signal must route using a controlled impedance PCB transition. Maintaining a continuous reference plane beneath the signal trace prevents impedance discontinuities.

RF Layout Considerations

Common transmission-line structures include microstrip, grounded coplanar waveguide, and stripline geometries. Depending on the frequency, the SMA PCB connector launch (the transition where the connector's center pin meets the PCB trace) requires an impedance calculation that factors in the stackup, field-solver analysis, and/or electromagnetic simulation.

  • Keep the connector transition trace short.
  • Avoid abrupt trace-width changes between the connector pad and the transmission line.
  • Use short, low-inductance ground connections.
  • Add ground stitching vias near the connector launch.
  • Avoid routing the RF signal across reference-plane gaps.
  • Prevent excess solder from altering the launch geometry during assembly.

Common SMA Connector Design and Assembly Mistakes

Hardware failures frequently stem from layout oversights and incorrect part selection. For example, installing an edge-launch connector designed for a 1.6 mm board onto a 1.0 mm board causes severe misalignment and impedance mismatch. Similarly, ordering a standard SMA antenna for an RP-SMA wireless device prevents physical mating. Common mistakes include:

  • Confusing SMA and RP-SMA polarities.
  • Selecting the wrong plug, jack, pin, or socket.
  • Using an incorrect generic footprint.
  • Ignoring PCB thickness requirements for edge-mount components.
  • Failing to maintain controlled impedance routing.
  • Using insufficient ground connections or narrow ground traces.
  • Routing the RF signal over a reference-plane gap.
  • Creating a long center-pin stub on a vertical through-hole connector.
  • Placing the connector incorrectly at the PCB physical edge.
  • Allowing excess solder to change the RF launch impedance.
  • Ignoring enclosure or mating cable clearance.
  • Failing to check frequency limits or power ratings.
  • Assuming connector specifications automatically guarantee complete PCB-launch performance.

Design Review Checklist

Connector standard (SMA vs RP-SMA) verified.
Gender and center contact polarity verified.
Characteristic impedance verified.
PCB thickness verified for edge-mount styles.
Footprint checked directly against the manufacturer datasheet.
Grounding strategy and stitching vias reviewed.
Mechanical clearance checked against enclosure constraints.
RF launch simulated or measured where required.

How Modern PCB Tools Support SMA Connector Design

Modern PCB platforms support high-frequency design by linking component discovery directly with electrical and mechanical metadata. Such platforms provide access to shared approved libraries, linked datasheets, and accurate mechanical drawings. Engineers utilize built-in tools for PCB stackup configuration, layout review, and controlled-impedance routing. Additionally, collaborative RF and mechanical reviews ensure proper footprint management, revision tracking, and substitution tracking throughout the hardware development lifecycle. Try Flux now to streamline your SMA connector selection and RF routing workflow.

FAQs
