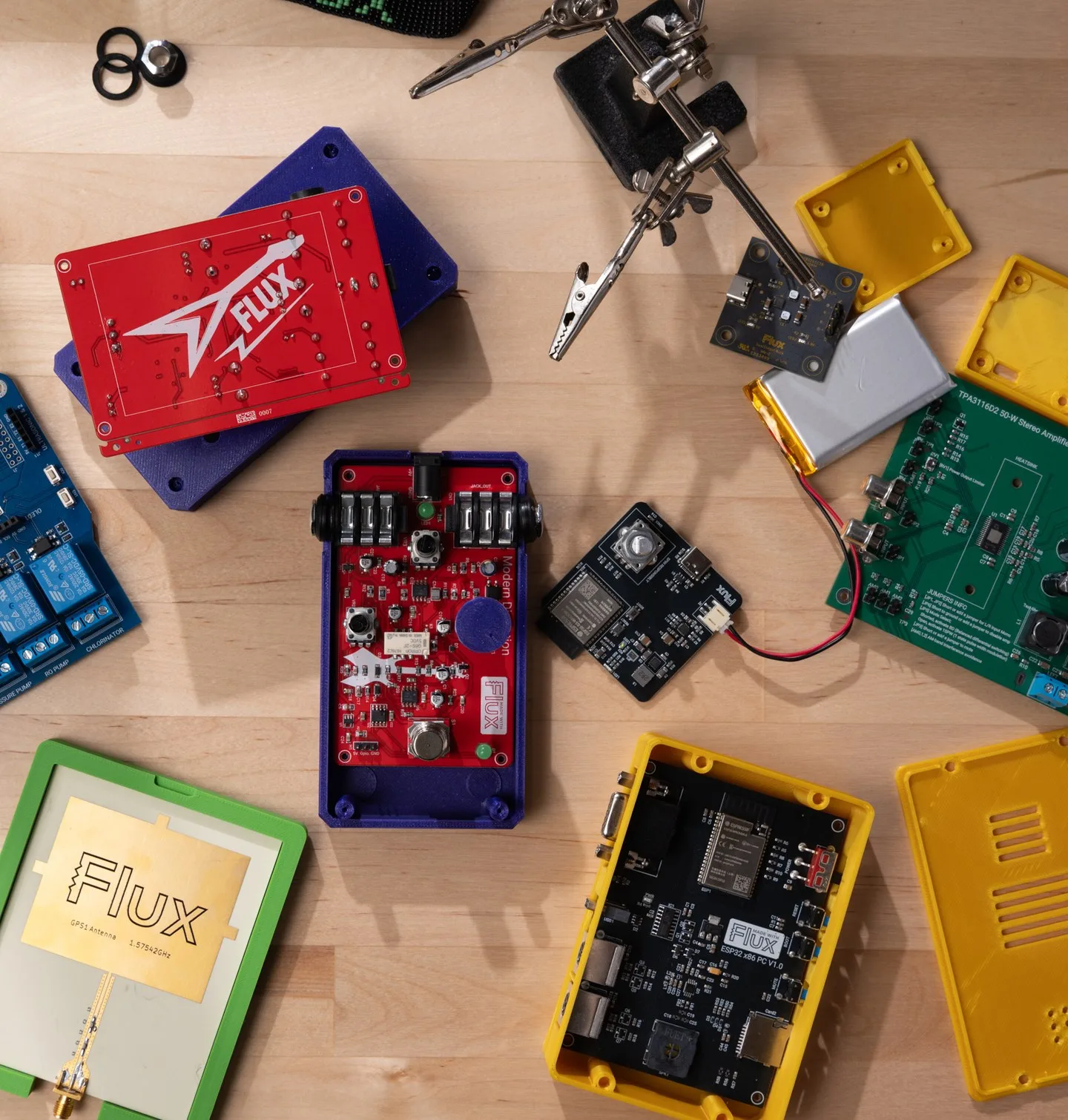

Hardware 101 Development

A feasibility study asks the broad question: can this concept realistically be built and sold at a price the market will bear? Cost engineering is how teams answer that question in practice, by calculating power budgets and estimating bill of materials (BOM) costs before a single schematic is finalized. Selecting core chips during this stage, rather than after the architecture is locked in, is what keeps the rest of the feasibility study grounded in real numbers instead of assumptions.

For example, choosing between a high-end microprocessor and a basic microcontroller alters the trajectory of a project. Such an architectural decision impacts battery life, thermal management, and final retail pricing. A prototype is to confirm that the circuit works, so keep in mind that an over-budget processor long-term can make the product commercially impractical.

Accordingly, early validation prevents teams from designing a technically perfect board that the business simply cannot afford to produce. Teams must evaluate component availability and volume pricing immediately. Establishing clear product requirements upfront provides a stable foundation for the entire engineering phase.

Selecting specific hardware architectures involves reviewing reference designs for embedded systems, robotics, wearables, and Internet of Things (IoT) devices. Such structural choices determine future performance metrics and dictate how the device will eventually scale. Engineers cannot easily swap out the main architectural framework halfway through the design phase.

Notably, different industries require different design approaches. Evaluating specific vertical frameworks before finalizing the primary system architecture prevents severe design limitations. For example, architectural demands vary across these specific sectors:

• IoT sensor nodes require highly specialized low-power management techniques.
• Industrial robotics demand heavy-duty motor controllers and isolated power rails.
• Wearable technology mandates ultra-compact layouts alongside flexible substrates.

Furthermore, leveraging established reference designs accelerates the development timeline. Semiconductor manufacturers provide tested layouts for complex components. Applying known-good architectural patterns allows designers to focus energy on the unique features of the new product rather than reinventing standard power delivery networks.

Prototypes exist to answer specific engineering questions, not only to test if a piece of hardware is functional. First builds move from an initial breadboard to the functional printed circuit board prototype. Validation then confirms the physical hardware meets the original design intent. Testing verifies signal integrity, thermal dissipation, and basic power delivery.

Surprisingly, a working prototype only marks the middle of the development cycle. Prototyping is an inherently iterative process. A proof-of-concept board might look incredibly messy with jumper wires flying everywhere. This low-fidelity, jumper-wired build confirms basic functionality before the engineering team commits valuable time to a dense layout. Answering questions quickly via rough prototypes prevents over-engineering early in the project.

Consequently, design iterations refine the product based on real-world testing. Discovering a flaw during the prototyping phase costs a few hundred dollars. In contrast, discovering the exact same flaw during mass production costs hundreds of thousands of dollars. Therefore, engineers actively hunt for potential failures by:

• Probing sensitive voltage rails to verify stable power delivery.
• Measuring clock frequencies to ensure exact timing requirements.
• Inducing extreme thermal stress to identify localized hotspots.

Modern electronic product development requires synchronized efforts between electronic computer-aided design (ECAD), mechanical computer-aided design (MCAD), and firmware specialists. Fitting the board into the mechanical enclosure only works if electrical and mechanical teams stay in sync. Furthermore, mapping pinouts with code ensures software developers can actually interface with the physical hardware. Hardware teams simply cannot work in isolated silos.

Consequently, design reviews and revision management become increasingly valuable as products mature. Failing to communicate board outline changes often results in a PCB that cannot fit inside the molded plastic case. An electrical engineer moving a tall capacitor three millimeters to the left might accidentally block a mechanical mounting boss. Such a small oversight could force a complete plastic tooling redesign.

Therefore, establishing a unified source of truth keeps teams aligned. Frequent cross-functional communication prevents late-stage integration failures and accelerates the transition to manufacturing. Proper alignment requires specific data accessibility across departments:

• Firmware developers need immediate access to schematic netlist updates.
• Mechanical engineers require accurate 3D models of the fully populated board.
• Electrical designers rely on precise physical constraints imported from the mechanical enclosure files.

Passing regulatory pre-compliance involves adhering to strict layout rules for electromagnetic compatibility (EMC) and electromagnetic interference (EMI). Compliance planning must begin during the initial design phase. Delaying compliance planning until late-stage prototypes increases the risk of failure during Federal Communications Commission (FCC) or Conformité Européenne (CE) testing. Because regulatory laboratories charge substantial fees per testing session, a failure at this stage doesn't just cost time; it means paying to book and repeat the entire test.

As a result, mitigating risk early saves thousands of dollars. For example, proper grounding techniques and impedance-controlled trace routing prevent excess radiation. A poorly placed high-speed clock trace acts exactly like a broadcasting antenna, causing the device to fail emissions testing. Understanding return paths and implementing appropriate decoupling strategies reduces emission risk before the board ever reaches a test chamber.

Moreover, pre-compliance testing allows teams to identify red flags using standard spectrum analyzers in the office. Discovering an EMI issue in-house provides time for layout corrections. Treating compliance as a continuous design requirement rather than a final hurdle ensures a much smoother certification process.

Running Design for Manufacturability (DFM) checklists is how engineering decisions get translated into a repeatable manufacturing process. Since fabrication facilities work within tight tolerances and specific material constraints, a pilot build is used to confirm the factory can assemble and test the product consistently before committing to full volume.

Moreover, complete manufacturing documentation eliminates ambiguity on the factory floor. A machine placing microscopic components at high speed relies entirely on the accuracy of the provided engineering files. Preventing assembly delays requires submitting an organized release package containing:

• Clean Gerber files defining precise layer stackups and trace geometries.
• Accurate BOM documents specifying approved alternate parts.
• Precise pick-and-place coordinate data for automated assembly machines.

Anticipating manufacturing defects during the layout phase is what protects yield at scale. Correct component spacing prevents solder bridges, and proper pad geometry keeps parts from tombstoning during reflow. Designing around the specific capabilities of the assembly partner, rather than a generic set of rules, is ultimately what separates a smooth production run from one derailed by rework.

Long-term production success hinges on keeping components available years after launch, not just at first shipment. Component lead times determine how quickly a factory can turn a purchase order into a finished board, so sourcing volume parts means actively dodging end-of-life (EOL) shortages and market fluctuations before they stall a run. A single hard-to-source part can be enough to derail an otherwise successful product, which is exactly why supply chain resilience has to be planned for.

BOM management and lifecycle planning are what turn that resilience from a goal into a practice. Every part on the board carries a support status, and once a component is marked obsolete, teams are often forced into a costly redesign just to keep the line running. Global silicon shortages only raise the stakes, since they can disrupt schedules industry-wide rather than affecting a single company. Selecting components with active support and lining up drop-in replacements before a shortage hits is what keeps production timelines intact.

Furthermore, engaging with suppliers establishes clear delivery expectations. Procurement teams monitor global inventory levels and purchase essential silicon well in advance. Hardware engineering does not end when the design files are sent to the factory; engineering continues throughout the entire life of the physical product.
