PCB Enclosure Design: How to Design an Enclosure
Share
A working circuit board still needs a housing before the hardware can be used or tested as a complete device. PCB enclosure design accounts for the board outline, component heights, connectors, mounting points, internal clearance, airflow, cable access, and assembly method.
A good enclosure design starts by considering the PCB and enclosure together. In some products, the enclosure is designed around an existing PCB; in others, the PCB must be shaped and laid out to fit within a predefined enclosure. Either way, the goal is to turn the electrical design into a physical prototype that can be printed, assembled, tested for fit, and refined before production.
PCB enclosure design is the process of creating a mechanical housing around a printed circuit board. The enclosure protects the electronics, holds the PCB in a fixed position, and provides access to the parts that need to interact with the outside environment. A PCB enclosure usually needs to account for:
Thermal requirements can affect vents, material selection, internal spacing, and component placement. The enclosure therefore needs to work with the overall PCB thermal management strategy. Prototype and production enclosures also solve different problems.
| Consideration | Prototype enclosure | Production enclosure |
|---|---|---|
| Main purpose | Test fit, handling, assembly, and basic function | Manufacture the final product at the required volume |
| Common process | 3D printing or other low volume fabrication | Injection molding, machining, sheet metal, or another production process |
| Iteration | Frequent design changes are expected | Changes become more expensive after tooling or production setup |
| Design focus | Speed, fit, access, and functional testing | Manufacturing constraints, durability, finish, compliance, and cost |
| Tooling | Usually little or no dedicated tooling | May require molds, fixtures, or other production tooling |
This guide focuses mainly on the prototype enclosure. Prototype housings help hardware teams test the mechanical design before committing to a production process.
Learning how to design an enclosure for a PCB starts with a simple rule: the enclosure should follow the board. A typical workflow is:
PCB → mechanical requirements → enclosure design → fabrication → assembly → fit testing
The process starts with accurate board data and ends with a physical test. Each step checks whether the electrical and mechanical parts work together.

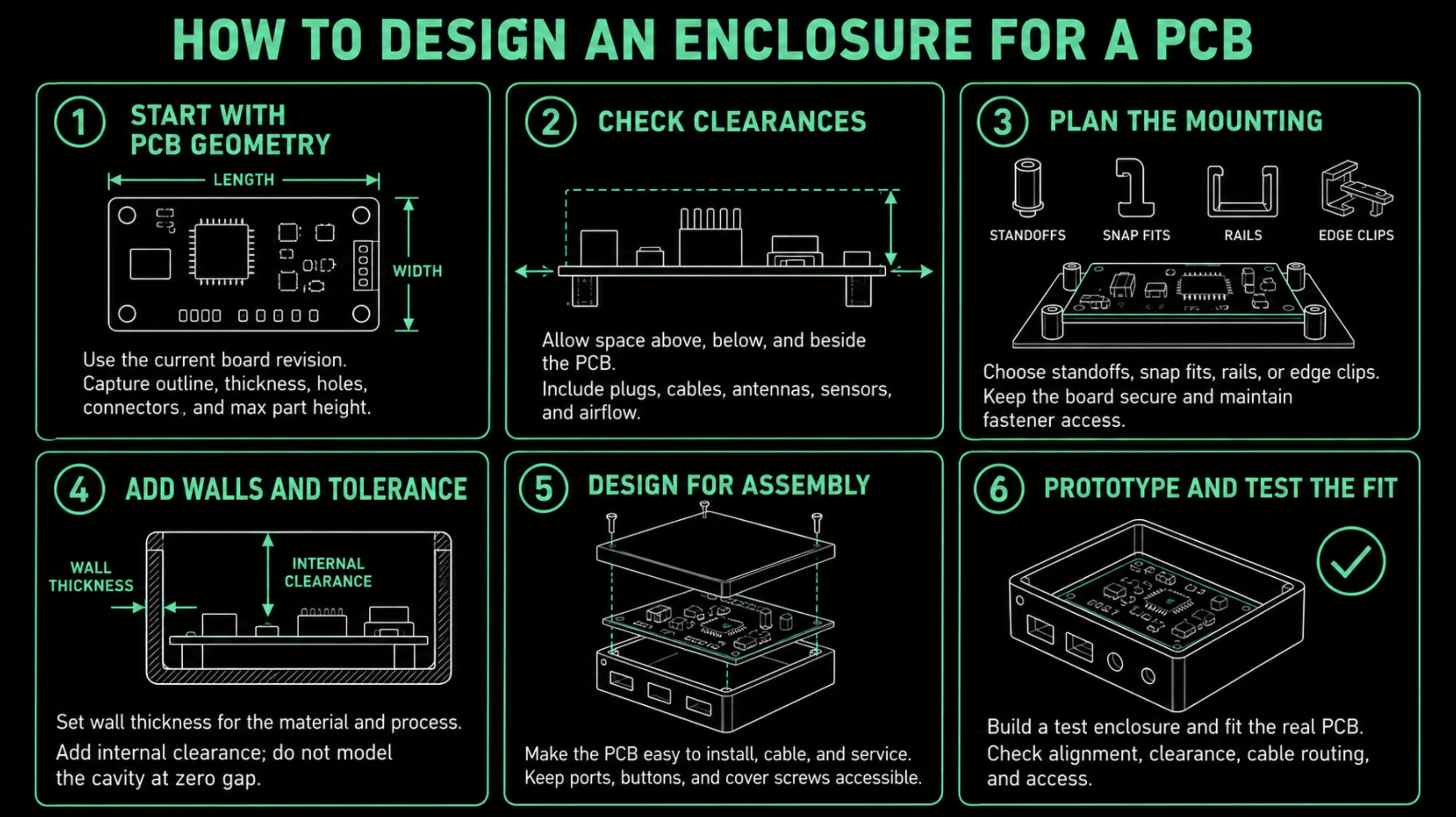

How To Design An Enclosure For A PCB
The PCB geometry determines the basic limits of the enclosure. Start with the current board revision rather than dimensions copied from an early drawing or specification.
Collect the following information:
Accurate component models also matter. An incorrect PCB footprint design can create a mechanical collision even when the board outline is correct. The enclosure should match the actual PCB geometry. Approximate dimensions can create problems later when ports, bosses, and internal walls need exact alignment.
Component clearance determines how much internal space the enclosure needs. Check all parts that extend above, below, or beyond the PCB, including connectors, switches, buttons, displays, antennas, sensors, heat sinks, fans, and internal cables.
Connector openings also need enough clearance for the external plug or cable housing, not only the connector mounted on the board. Functional clearance matters too. Antennas may need open space around the radiating area, environmental sensors may need exposure to outside air, and high power components may need an airflow path. The enclosure should account for both mechanical fit and the operating requirements of each component.
The mounting method controls the PCB position inside the enclosure. A well-engineered mounting strategy also prevents the board from moving when cables are connected or buttons are pressed.
| Mounting method | How it works | Useful for |
|---|---|---|
| Standoffs and screws | Enclosure bosses align with PCB mounting holes | Secure prototypes that may need repeated access |
| Snap fits | Flexible enclosure features hold the PCB edges | Tool free assembly |
| Slots or rails | PCB edges slide into internal grooves | Rectangular boards and compact housings |
| Edge clips | Small retention features hold selected PCB edges | Simple prototypes with limited mounting space |
PCB standoffs are common because mounting holes provide predictable board positioning. Bosses inside the enclosure can align with those holes and support the PCB above the enclosure floor.
Fastener clearance needs attention as well. Components should not block screws or assembly tools. Metal fasteners should also stay clear of exposed electrical features where contact could create a short circuit.
The enclosure walls can be designed once the board position and component envelope are known. Wall thickness depends on the material, fabrication method, part size, expected loads, and intended use.
Internal dimensions also need manufacturing tolerance. A PCB cavity should not match the board outline with zero clearance.
The required gap depends on:
A fit check provides better information than a universal clearance value. Printer and material guidance can provide an initial range, then a physical prototype can confirm whether the selected tolerance works.
Assembly planning should happen before the enclosure shape is finalized. A case that fits all components can still fail if the PCB cannot be installed. Check the intended assembly sequence:
Connector placement can change the required enclosure structure. A board with ports on opposite edges may be difficult to install in a deep one piece shell. A two part design can provide easier access around protruding components.
Cable routing also needs enough space for bends and connector bodies. Wires should not become trapped between enclosure parts during final assembly. A good custom PCB enclosure should allow normal installation without bending the PCB or forcing components through undersized openings.
A physical prototype checks details that can be difficult to judge from CAD alone. Fabricate the enclosure and assemble the actual PCB inside. Designers should check:
The first enclosure often exposes small mechanical issues. For example, a connector opening may need more clearance. A cable may need additional bend space. A screw may be difficult to reach. The next enclosure revision should address those findings before the design moves toward production.
A 3D printed enclosure for PCBs provides a practical way to test a custom housing without production tooling. The process works well during early PCB prototyping because mechanical changes can follow PCB revisions. 3D printing works especially well for fit checks and functional prototypes because each enclosure can use geometry created for a specific board.
Printed parts have dimensional variation. PCB cavities, connector openings, mating surfaces, and fastener features therefore need intentional clearance.
Suitable tolerance depends on the printer, process, material, geometry, and desired fit. A small test feature can help confirm dimensions before printing the complete case.
Print orientation affects dimensional accuracy, surface finish, part strength, and support requirements.
Important connector openings and mounting features should be considered when choosing the print orientation. Excessive support inside narrow openings can make cleanup difficult and can affect the finished dimensions.
Wall thickness should match the enclosure size, material, printing process, and expected use. A case used for a short fit test may need less mechanical strength than a prototype that will be carried, dropped, opened repeatedly, or exposed to heat.
Material choice depends on the conditions the prototype will experience. Useful factors include:
PLA, PETG, ABS, and other printable materials have different mechanical and thermal properties. Material selection should match the purpose of the prototype rather than follow one default recommendation.
The enclosure closure method should also match the expected number of assembly cycles. Threaded inserts can provide durable fastening points for enclosures that need frequent opening. Directly formed plastic threads may be sufficient for short term prototypes with limited assembly cycles. Snap fits can reduce hardware and simplify access. Snap fit geometry needs to account for material flexibility, print direction, repeated use, and feature thickness.
PCB enclosure problems often come from missed mechanical details rather than the overall enclosure shape. Traditional electrical and mechanical workflows can make these errors harder to catch. A typical hardware design workflow moves board information between PCB design and mechanical design tools. Every transfer creates another place where revisions need to stay synchronized.
| Mistake | Why It Causes Problems | What to Do Instead |
|---|---|---|
| Designing from approximate board dimensions | Nominal dimensions can miss cutouts, mounting holes, edge connectors, and other mechanical details. | Use the current PCB geometry whenever possible. |
| Forgetting component height | Tall components such as capacitors, heat sinks, connectors, or inductors can prevent the enclosure from closing. | Check the full component envelope, not only the PCB outline. |
| Misaligning connector openings | Ports may not line up correctly, or the external plug may not fit through the opening. | Check connector position in three dimensions and allow space for the cable or plug. |
| Leaving too little clearance | Manufacturing variation can cause the real PCB to interfere with enclosure walls. | Add appropriate clearance based on the fabrication process and desired fit. |
| Forgetting mounting hardware | Screws, inserts, standoffs, bosses, and assembly tools all require space. | Include mounting hardware and tool access during enclosure planning. |
| Blocking buttons, LEDs, sensors, or antennas | Enclosure features can restrict user access, sensor exposure, or antenna performance. | Verify access and functional clearance for exposed components. |
| Ignoring cable routing | Cables may be pinched or lack enough room for connectors, bends, or strain relief. | Plan cable paths and internal routing before finalizing the enclosure. |
| Making assembly difficult | A case may fit mechanically but still require excessive force or awkward PCB positioning. | Check the complete assembly and disassembly sequence. |
| Designing the enclosure before the PCB is stable | Changes to connectors, mounting holes, board outline, or component height can require enclosure revisions. | Base the enclosure on a reasonably stable PCB revision. |
| Skipping the physical fit test | CAD alone may not reveal alignment, clearance, or assembly issues. | Test the enclosure with the actual PCB before moving toward production. |
Traditional enclosure development often starts after PCB design. Board geometry needs to move into a mechanical design tool before enclosure modeling can begin. Flux reduces that handoff by adding prototype enclosure creation to the PCB project.
The enclosure workflow starts with a description of the required housing. Requirements can be entered directly in Flux.
Flux creates the prototype enclosure from the project's actual board geometry. The enclosure starts from the PCB data already present in the design instead of geometry recreated manually in another tool.
The enclosure appears as a 3D asset inside the project. Material previews help show the physical design, and individual enclosure parts can be toggled on or off during inspection.
The generated enclosure can be exported as a printable 3D asset. The exported design can then move into fabrication and physical fit testing.
Flux also creates manufacturing and assembly instructions in a project document alongside the enclosure.
The enclosure workflow connects PCB design with a later stage of physical prototyping. Hardware teams can move from the board design toward an assembled prototype without starting the enclosure process from a separate blank mechanical model.
Use this checklist before sending a prototype enclosure to the printer:
Skip the extra mechanical handoff. Generate a prototype enclosure from your PCB geometry, preview the fit in 3D, and export the enclosure for printing directly from your Flux project. Start your PCB enclosure design in Flux
PCB enclosure design is the process of creating a housing around a printed circuit board. The design accounts for board dimensions, components, connectors, mounting points, clearances, assembly, and operating requirements.
Enclosure design starts with the actual PCB geometry. The next steps identify component clearances, connector openings, mounting features, internal spacing, assembly requirements, and manufacturing tolerances. A physical prototype then confirms the fit.
Yes. 3D printing is commonly used for prototype PCB enclosures because custom geometry can be fabricated without production tooling. Printed cases can support fit testing, assembly testing, demonstrations, and functional prototypes.
A PCB enclosure should account for the board outline, component heights, mounting points, connector openings, accessible controls, cable paths, internal clearances, assembly requirements, and thermal needs.
Accurate PCB geometry provides the starting point. The enclosure then needs suitable clearance around the board, components, connectors, and mounting hardware. A physical prototype should confirm the selected tolerances.
Yes. Flux can generate a prototype enclosure from the board geometry in a Flux project. The enclosure becomes a 3D asset that can be previewed and exported for 3D printing. Flux also generates manufacturing and assembly instructions alongside the enclosure.
