What Is Solder Mask? Materials, Colors, and PCB Design Rules
Share
Early printed circuit boards (PCBs) consisted of bare copper traces routed across an insulating substrate. During wave soldering operations, the exposed copper frequently oxidized or allowed molten solder to bridge across adjacent traces, causing catastrophic short circuits. To prevent these failures, manufacturers introduced liquid polymer coatings that hardened into a protective insulating layer. This coating became known as solder mask. Today, precise solder mask application helps determine whether a board can withstand high-density automated assembly.

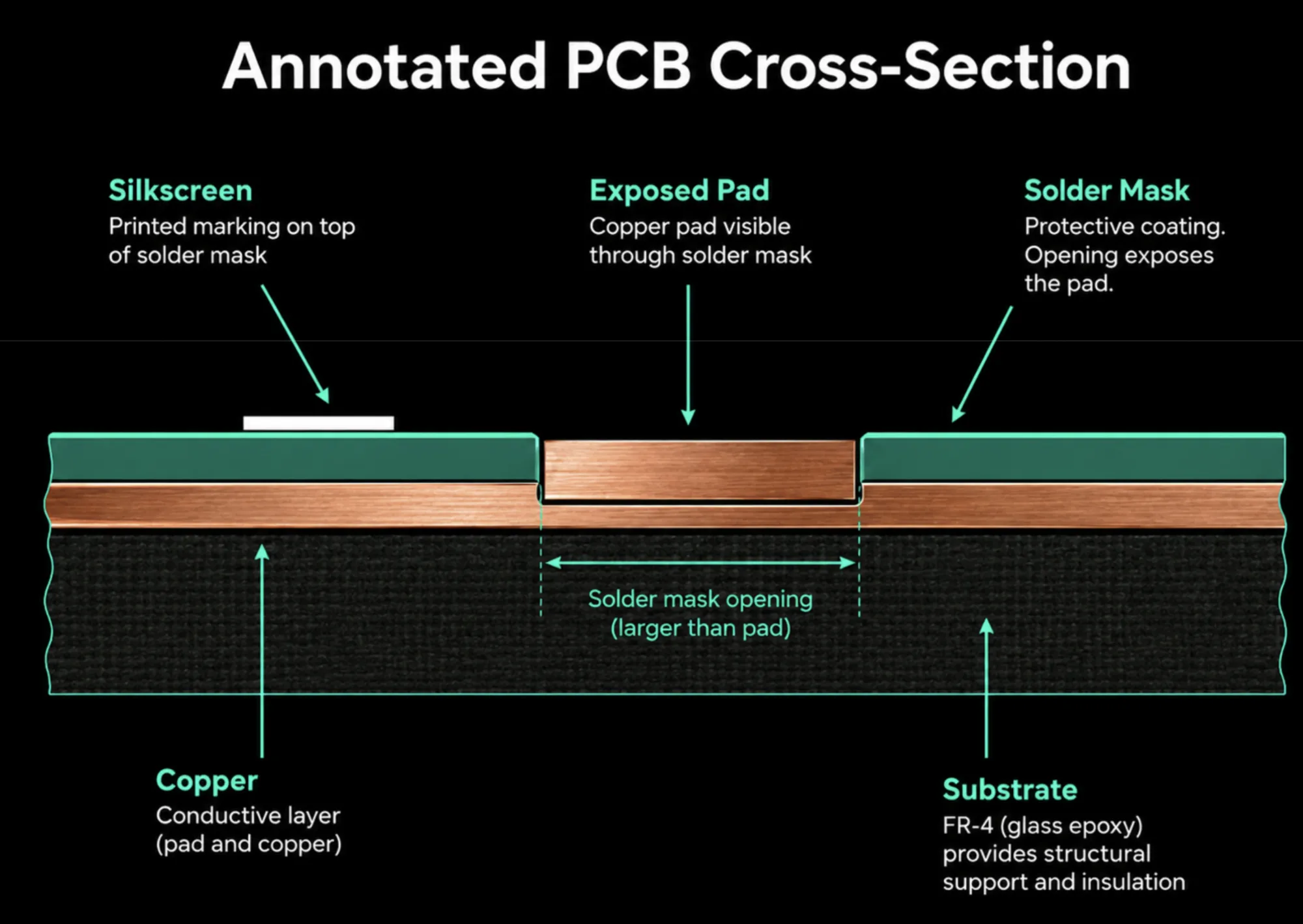

Solder mask is a protective polymer coating applied over a PCB's copper surfaces. This coating prevents oxidation, reduces accidental solder bridging, and leaves selected pads exposed for component assembly. Designers control solder mask openings, clearances, and dams to ensure the board can be fabricated and soldered reliably. Notably, a solder mask layer differs from a silkscreen (used for text labels) and solder paste (a temporary metallic bonding agent). Furthermore, such a coating does not replace proper electrical clearance rules for high-voltage isolation.
Designing a PCB solder mask involves specific geometric definitions around every exposed copper pad.
Fabrication machinery inherently possesses alignment tolerances. Consequently, openings are sized slightly larger than the copper pads. However, excessive solder mask expansion removes the protective solder mask dam between adjacent pins. Without such a barrier, molten solder easily bridges across fine-pitch IC pins during reflow.
Footprint design relies on two primary methodologies for exposing copper pads to the assembly process.
Beginners frequently confuse solder mask vs paste mask (e.g., solder paste) export layers. Understanding the difference between solder mask vs solder paste ensures fabrication and assembly files route to the correct machinery.
| Attribute | Solder Mask | Solder Paste |
|---|---|---|
| Primary Purpose | Protects traces and prevents solder bridging | Forms the physical and electrical joint |
| Manufacturing Stage | Applied during bare PCB fabrication | Applied during PCB assembly |
| Application Method | Photoimaging or screen printing | Deposited via stainless steel stencil |
| Remains on PCB | Yes, permanent polymer | No, melts into solid metal joints |
Fabricators apply different mask materials based on cost and precision requirements. Liquid Photoimageable (LPI) mask represents the standard, offering high resolution for fine-pitch components. Dry-film masks provide uniform thickness across flat surfaces, while screen-printed epoxy is a cost-effective option for low-density boards. Regarding aesthetics, traditional green remains standard because the specific chemical pigment offers optimal contrast for Automated Optical Inspection (AOI) cameras and has predictable curing properties. However, PCB solder mask colors also include black, blue, red, white, yellow, and purple. Pigment selection typically affects visual inspection contrast and curing resolution rather than electrical performance. Designers must also specify how the mask interacts with vias. Options include open vias (exposed copper), plugged vias (filled with non-conductive epoxy), filled and capped vias, and via tenting (where the polymer covers the via hole entirely to prevent shorts during wave soldering).
Poor mask design directly causes solder mask defects during the manufacturing stage. Common errors include missing openings over surface-mount pads, excessive expansion values that eliminate fine-pitch mask dams, and accidentally covering required test points with polymer.
Modern PCB platforms streamline the design and verification workflow. Cloud-native tools help engineers define what is a solder mask within the stackup, validate footprint geometries, and run automated design-rule checks. By keeping footprint validation, layer management, and manufacturing outputs connected in a single collaborative environment, hardware teams catch clearance errors before initiating fabrication. Try Flux now to define precise solder mask geometry, validate footprint layers, and prepare manufacturing deliverables in a unified collaborative environment.
A protective polymer coating applied over the copper layers of a printed circuit board to prevent oxidation and solder bridging.
The coating forces molten solder to adhere strictly to exposed pads, prevents contaminants from creating short circuits, and protects copper traces from environmental degradation.
An area where the polymer coating is intentionally omitted to expose the underlying copper pad for soldering.
Standard clearance values range from 0.05 mm (2 mils) to 0.1 mm (4 mils) beyond the copper pad, depending heavily on the specific fabricator's registration tolerances.
A thin strip of polymer material remaining between two adjacent mask openings, designed to block molten solder from bridging between fine-pitch pins.
Solder mask is a permanent protective epoxy applied during bare board fabrication. Solder paste is a temporary mixture of metal and flux applied during assembly to connect electronic components.
The green pigment provides high visual contrast against silver solder joints, supporting highly accurate automated optical inspection algorithms.
Yes. Applying polymer over a via hole is known as tenting, a technique used to prevent solder wicking and protect the via barrel from environmental exposure.
