Pi Filters Explained: Design, Components & Applications
Share
Quick Answer: A pi filter is a three-element passive filter arranged in the shape of the Greek letter pi. A common low-pass version uses a capacitor, an inductor, and a second capacitor. The filter reduces power-supply ripple and high-frequency noise, but source impedance, load impedance, resonance, component ratings, and PCB layout must all be considered for proper operation.
Engineers often face challenges when removing high-frequency noise from sensitive analog or digital power rails. A single bypass capacitor does not always work. Consequently, adding additional reactive elements creates a steeper frequency roll-off.

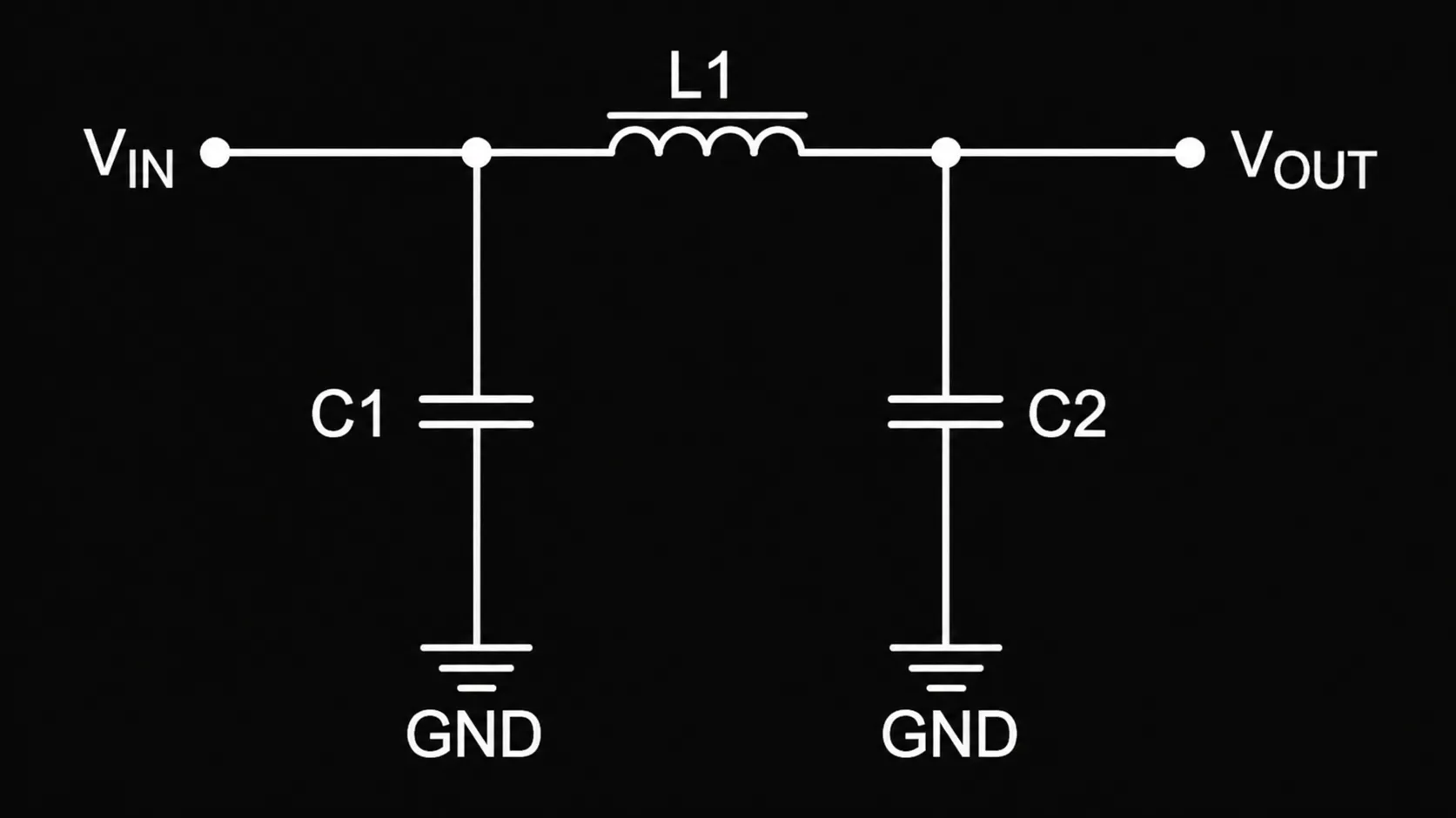

The most common topology for such a task is the capacitor-inductor-capacitor (CLC) network. In a schematic drawing, the circuit looks exactly like the Greek letter pi (π). To understand the mechanics, engineers must examine how each part behaves within the circuit:
Working together, the entire network creates a stronger low-pass response than a single component. However, real performance depends heavily on source impedance, load impedance, equivalent series resistance (ESR), and parasitic trace elements. Therefore, characterizing the exact noise-current path remains a necessary step for hardware engineers.
Hardware engineers must choose a specific topology for their filtering network based on the noise profile and load requirements.
For instance, the standard CLC topology offers strong power and electromagnetic interference (EMI) filtering. Such a setup has low DC loss. However, the LC combination presents a potential resonance risk if not properly damped. Alternatively, a CRC (capacitor-resistor-capacitor) topology offers easier damping and works well for lower-current circuits, though the series resistor introduces a voltage drop.
Engineers apply these distinct topologies across various domains:
| Topology | Series Element | Key Advantages | Major Limitations | Typical Application |
|---|---|---|---|---|
| CLC Filter | Inductor | Low DC loss, high attenuation | Resonance risk, bulky | Switching regulator outputs |
| CRC Filter | Resistor | Inherently damped, inexpensive | High power loss, voltage drop | Low-current analog references |
| Ferrite Bead Pi | Ferrite Bead | Excellent high-frequency noise rejection | DC bias derates impedance severely | Digital supply noise isolation |
Proper component selection ensures the filter blocks noise without burning up or causing instability. Relying purely on nominal datasheet values usually yields surprises on the test bench.
| Consideration | Inductor | Ferrite Bead |
|---|---|---|
| Primary behavior | Predictable inductance across a broad frequency range | Impedance varies with frequency, following a curve rather than a fixed value |
| Current handling | Rated for higher DC currents; stable under sustained load | Derates sharply as DC current rises |
| Frequency behavior | Broadband, predictable roll-off | Peak impedance concentrated in a narrow band; must match target noise range |
| Saturation | Core saturates at a defined peak current, causing inductance to drop | Saturates more easily under DC bias, weakening high-frequency rejection |
Low-loss CLC networks can create a high-Q resonance, meaning the LC network stores energy efficiently and exhibits a sharp, narrow peak in its frequency response with very little natural damping. The resonance might amplify noise instead of reducing the interference. When an undamped filter hits the resonant frequency, the voltage spikes, potentially damaging downstream components.
Additionally, input filters can interact with switching-regulator control loops. Middlebrook's stability criterion states that the output impedance of the input filter must remain much lower than the input impedance of the following converter. Failing to meet Middlebrook's criterion destabilizes the switching regulator, leading to oscillation.
To mitigate resonance, engineers employ various damping options:
Consequently, comparing a damped and undamped frequency response during simulation reveals precisely how much resonance threatens the circuit.
A theoretically perfect schematic can perform poorly if the layout allows noise to bypass the network. Keeping high-frequency current loops small represents the foundation of good electromagnetic compatibility (EMC) design.
Specifically, place capacitors close to the source and the load. Use short, wide connections to minimize parasitic trace inductance.
Further layout guidelines include:
Designers must validate performance through simulation and physical measurement rather than relying solely on ideal formulas. Using circuit simulation tools can quickly highlight potential resonance peaks.
On the physical bench, oscilloscope ripple measurement confirms whether the time-domain noise meets specifications. Moreover, spectrum analysis and conducted-emissions testing verify compliance with regulatory standards.
During validation, systematically verify the following parameters:
Load-transient testing checks how the network responds to sudden current demands. Additionally, thermal inspection ensures the inductor and capacitors remain within safe temperature limits.
Modern EDA platforms bring the theoretical design process into a practical, collaborative workflow. Hardware teams require environments where component selection directly informs layout constraints.
Flux supports schematic creation, part selection, collaborative review, and layout implementation of power filters in one unified workspace. Instead of isolating the electrical simulation from the physical board, Flux maintains a connected ecosystem of schematics, component libraries, footprints, PCB layout data, simulation results, and collaborative design reviews.
Relevant Flux capabilities include:
Consequently, schematic, power, and layout engineers review the exact same filter design. Such an environment keeps component data, footprint dimensions, and PCB context perfectly connected.
Designing a reliable pi filter requires carefully balancing component selection, damping, and PCB layout. Flux provides an intuitive, browser-based EDA platform where hardware teams can concurrently collaborate on schematic capture, part selection, and board routing. Start building your next power supply pi filter in Flux today to ensure the design is precise, stable, and ready for manufacturing.
A pi filter is a passive circuit containing a series element flanked by two parallel shunt elements, used to filter out noise.
In a schematic drawing, the two parallel capacitors and the series inductor look like the Greek letter π.
An LC filter uses one inductor and one capacitor. A pi configuration adds a second capacitor, resulting in a steeper frequency roll-off and greater high-frequency attenuation.
Yes, a pi filter can reduce EMI. Adding the specific network near a noisy circuit greatly reduces conducted interference.
Inductors handle higher DC currents and offer predictable inductance for broadband filtering. Ferrite beads excel at dissipating specific high-frequency noise as heat but saturate easily under heavy DC loads.
Yes, the filter can destabilize a switching regulator. If the output impedance of the filter interacts unfavorably with the input impedance of the regulator, the power supply will oscillate.
The components belong as close to the noise source or sensitive load as possible, using short traces and a solid ground plane to prevent noise coupling.
