Voltage regulation is a pivotal aspect of modern electrical engineering, providing stability to electronic systems by maintaining a constant voltage level regardless of variations in load or supply voltage. Voltage regulators are at the core of this process, essential for devices that require a stable DC voltage to operate correctly. From the simple Zener diode to sophisticated integrated circuits like the 78xx series, voltage regulators come in various forms, each suited to specific applications.

Projects

related projects, submodules and templates

If you’re just getting started with
Projects
, we have many

The Mechanics of Voltage Regulation

Voltage regulation mechanisms vary, but all share the goal of mitigating voltage drop and maintaining a steady voltage output. Zener diodes, for instance, exploit the property of reverse breakdown voltage to provide a reference voltage or to protect circuits from voltage spikes. Transistors, such as bipolar junction transistors (BJTs), are employed in more complex regulator designs, where their ability to act as variable resistors is used to adjust the output voltage dynamically.

The Role of Zener Diodes in Voltage Regulation

Zener diodes are a straightforward solution for voltage regulation. When reverse-biased, a Zener diode allows current to flow once the voltage drop across it exceeds the Zener voltage, maintaining a nearly constant voltage over a wide range of currents. This makes it an ideal component for creating a reference voltage or for small-scale voltage regulation tasks.

BJTs and Transistors: Active Voltage Regulation

Transistors such as BJTs are used in active voltage regulators. They can amplify or switch electronic signals, making them versatile components in various voltage regulator configurations. In a common emitter configuration, for example, the base-emitter voltage is used to control the output voltage, providing precise regulation capabilities.

Buck Boost Converters: Managing DC Voltage

Buck boost converters are types of switch-mode power supplies that can step up (boost) or step down (buck) an input voltage. These converters use a combination of inductors, diodes, and capacitors, alongside a switching element like a transistor, to control the transfer of energy and thus regulate the voltage.

The Buck Converter: Stepping Down Voltage

A buck converter, or step-down regulator, reduces the input DC voltage to a lower output voltage. It operates by rapidly switching the transistor on and off, controlling the time the voltage is applied to an inductor. The energy stored in the inductor is then released at the desired lower voltage.

The Boost Converter: Increasing Voltage

Conversely, a boost converter steps up the input voltage to a higher level. It uses similar principles as the buck converter but arranges the components differently to increase the voltage during the off phases of the switching cycle.

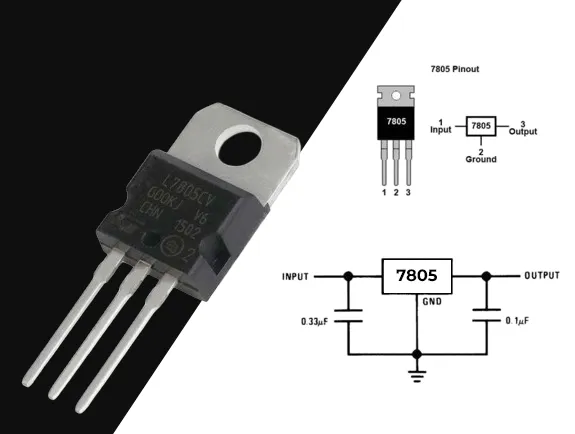

LM7805 Voltage Regulator, pinout and schematic diagram

Integrated Circuit Regulators: The 78xx Series

The 78xx series regulators are integrated circuits designed to provide a fixed output voltage with a high degree of stability. The "xx" in 78xx indicates the output voltage the regulator is designed to provide, making these components easily identifiable and user-friendly.

Advantages of 78xx Regulators

The 78xx series offers ease of use, with built-in features like thermal overload protection, short-circuit protection, and safe area protection. These regulators are favored in applications where a simple, robust voltage regulation solution is required without the complexity of external components.

Voltage Divider and Resistor-Based Regulation

A voltage divider is a passive circuit that uses two resistors to reduce a voltage to a required level. While this method is simple and cost-effective, it is not typically used for regulation, as the voltage drop across the resistors changes with the current draw, making it unsuitable for dynamic loads.

Limitations of Voltage Dividers

Voltage dividers are inherently inefficient for voltage regulation due to their sensitivity to load variations. The voltage drop across the resistors can lead to substantial power loss, especially when regulating high voltages to much lower levels.

Design Considerations for Voltage Regulators

Designing an effective voltage regulator circuit requires a comprehensive understanding of the load requirements, voltage levels, and the potential for voltage drop in the system. Selecting the appropriate regulator—whether it be a Zener diode for simple tasks, a transistor-based regulator for more demanding applications, or an integrated solution like the 78xx for fixed outputs—is crucial.

Calculating the Regulator Parameters

For transistor-based regulators, calculations must account for the transistor's characteristics, such as its current gain and saturation voltage. In contrast, integrated regulators like the 78xx series require minimal external components, simplifying the design process.

Challenges in Voltage Regulation

Voltage regulation technology must address several challenges, including efficiency, heat dissipation, and response to changing loads or supply variations.

Efficiency and Heat Dissipation

Efficiency is a primary concern in voltage regulators, especially in systems where power loss translates into unwanted heat. Heat sinks and thermal management strategies are critical in high-power applications to prevent overheating and ensure reliable operation.

Response to Load and Supply Changes

A voltage regulator must respond quickly to changes in load or supply voltage to maintain stable voltage. Switch-mode regulators like buck and boost converters excel in this regard, offering fast response times and high efficiency.

Voltage regulation is an indispensable function in electronic systems, ensuring that sensitive components receive the correct operating voltage. From simple Zener diodes to sophisticated integrated circuits like the 78xx series, voltage regulators provide the stability required for today's electronic devices to operate reliably. Understanding the principles of voltage regulation, the various types of regulators available, and the challenges involved in their design and implementation is crucial for any electrical engineer or technician working in the field. Whether stepping down voltage in a buck converter, managing voltage drop with resistors, or employing a Zener diode for basic regulation tasks, these components form the backbone of stable and reliable electronic circuitry.
