In terms of electronic components and circuitry, the push button switch is unassuming, but more intricate than what one might think at first glance. Have you ever wondered about the science behind pushbutton switches and how they function within electronic circuits? In this article, we will discuss just that—explaining their inner workings and various types.

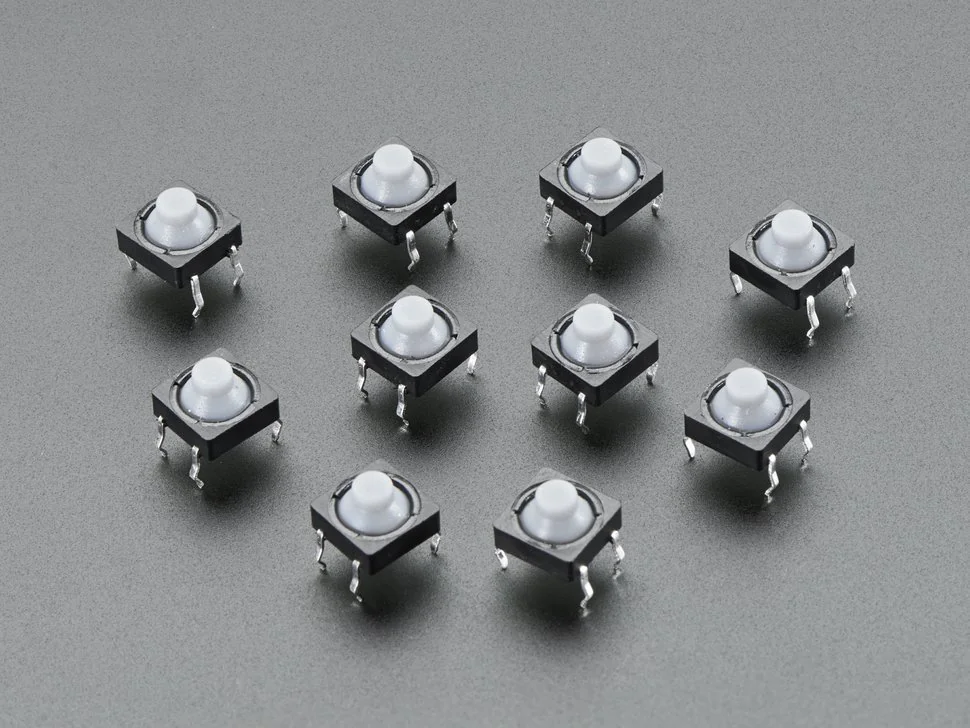

A push button switch is a simple yet versatile electrical switch used to open or close an electrical circuit by pressing a button. These switches come in various shapes and sizes, but they all share the same fundamental principle: pressing the button changes the switch's state from open to closed or vice versa. This action, often accompanied by a satisfying click, completes or breaks an electrical path, enabling or disabling a device's function.
The Science Behind Push Button Switches
Understanding how a push button switch works requires a closer look at its internal components. Here is a simplified breakdown:
Button Actuator: This is the part you physically press. It is connected to a mechanism inside the switch.
Contacts: Push button switches contain one or more sets of contacts, typically made of conductive materials like metal. In their default state, these contacts are separated.
Internal Mechanism: When you press the button, it engages an internal mechanism that pushes the contacts together, completing an electrical circuit. In latching switches, this mechanism locks the contacts in place until you press the button again.
Spring: A spring is often used to ensure the button returns to its original position after being pressed, creating a momentary action in most cases.
Types of Push Button Switches
Push button switches can vary significantly in their configurations, and understanding these distinctions is crucial when designing electronic circuits. Here are some common types:
1. Single Pole Single Throw (SPST)
The SPST push button switch is our first type of single pole switch. It is the simplest type, featuring only one set of contacts—ideal for basic on/off functions and is often found in household light switches.
2. Single Pole Double Throw (SPDT)
An SPDT push button switch, another single pole switch type, offers two sets of contacts, allowing it to act as a toggle switch between two different electrical paths. This is useful in scenarios where you need to choose between two actions with a single button press.
3. Double Pole Single Throw (DPST)
DPST push button switches have two sets of contacts, each operating independently. They are commonly used in situations requiring two separate circuits to be controlled simultaneously.
4. Latching and Momentary Switches
Push button switches can be further categorized as latching or momentary. Latching switches maintain their state after being pressed, while momentary switches return to their original state when released. These distinctions are important depending on the intended function of the switch.
Debouncing: Ensuring Reliable Signals
One common issue with push button switches is debouncing. When you press or release a button, it can create rapid fluctuations in the electrical signal due to the mechanical nature of the switch. This bouncing generates a series of electrical spikes and dips, making it challenging for the connected circuitry to interpret the intended input accurately. Debouncing is the process of filtering out these erratic signals to ensure a clean and stable transition between states. Achieving this involves employing techniques such as:
Hardware Debouncing: This method incorporates passive electronic components like resistors and capacitors into the circuit. These components introduce a controlled delay in the signal, effectively smoothing out the bounces. This delay ensures that the signal remains steady for a brief period after the initial transition, allowing the connected electronics to register a single, stable input.
Software Debouncing: In microcontroller-based systems, software algorithms can be used to handle debouncing. These algorithms monitor the button's state over time and register a press or release only when a stable state is maintained for a predefined duration. This approach eliminates the need for additional hardware components but requires efficient coding and real-time monitoring.
Filtering Out Multiple Fast Button Presses
In scenarios where users might rapidly press a button, it's essential to filter out unintended or extraneous signals. This can be achieved through electronic circuitry that detects and ignores rapid successive button presses, ensuring that only intentional inputs are registered. Here's how it works:
Timing Mechanisms: Some circuits utilize timing mechanisms, such as timers or counters, to keep track of the time interval between consecutive button presses. When a button is initially pressed, the timer starts counting. If another press occurs within a specified timeframe, the circuit can be programmed to ignore it as a repeated press, ensuring that only the first press is registered.
Sophisticated Algorithms: In more advanced systems, especially those based on microcontrollers or digital signal processors, filtering algorithms can be implemented. These algorithms analyze the timing and sequence of button presses, allowing the system to distinguish between legitimate user inputs and unintended, rapid presses. By considering factors like the time between presses and the order of button activations, these algorithms ensure that only intentional inputs affect the system's behavior.
Pull-Up and Pull-Down Resistors
Pull-up and pull-down resistors play a crucial role in pushbutton switch circuits, especially in microcontroller-based designs. These resistors are used to ensure that the input signal to the microcontroller is in a known state when the button is not pressed.
Pull-Up Resistor: When the button is not pressed, it connects the input pin to a voltage level (usually VCC), ensuring a high signal when the button is not pressed. When the button is pressed, it connects the pin to ground, resulting in a low signal.
Pull-Down Resistor: Similar to the pull-up resistor, it ensures a low signal when the button is not pressed and connects the input pin to VCC when the button is pressed, resulting in a high signal.
We see pull-up and pull-down applications in software as well when we set default values or states for variables, flags, or configuration options—specifying how a particular variable or option should behave when it is not explicitly set.
Common Applications
Push button switches find applications in various domains:
Household: They are integral to light switches and many appliances.
Automotive: Used in car dashboards for multiple functions.
Industrial: Control panels in factories and machinery.
Electronics: Integral components in electronic devices and gadgets.
Electronic Symbols

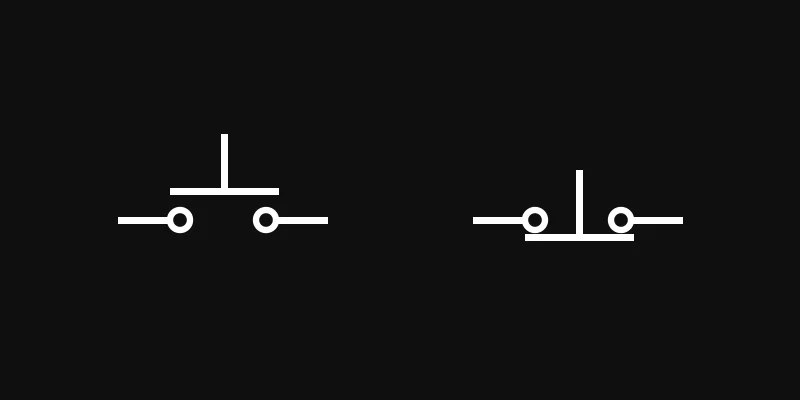

In electronic schematics, push button switches are represented using specific symbols. The most common symbols for push buttons include:
Conclusion
Whether you're turning on a light, starting your car, or operating heavy machinery, push button switches play a crucial role. Understanding their science and functionality is essential for anyone working with electronic circuits. So now next time you press that unassuming button, you can understand the intricate science behind it.
The Basics: What Is a Push Button Switch?
A push button switch is a simple yet versatile electrical switch used to open or close an electrical circuit by pressing a button. These switches come in various shapes and sizes, but they all share the same fundamental principle: pressing the button changes the switch's state from open to closed or vice versa. This action, often accompanied by a satisfying click, completes or breaks an electrical path, enabling or disabling a device's function.
The Science Behind Push Button Switches
Understanding how a push button switch works requires a closer look at its internal components. Here is a simplified breakdown:
Button Actuator: This is the part you physically press. It is connected to a mechanism inside the switch.
Contacts: Push button switches contain one or more sets of contacts, typically made of conductive materials like metal. In their default state, these contacts are separated.
Internal Mechanism: When you press the button, it engages an internal mechanism that pushes the contacts together, completing an electrical circuit. In latching switches, this mechanism locks the contacts in place until you press the button again.
Spring: A spring is often used to ensure the button returns to its original position after being pressed, creating a momentary action in most cases.
Types of Push Button Switches
Push button switches can vary significantly in their configurations, and understanding these distinctions is crucial when designing electronic circuits. Here are some common types:
1. Single Pole Single Throw (SPST)
The SPST push button switch is our first type of single pole switch. It is the simplest type, featuring only one set of contacts—ideal for basic on/off functions and is often found in household light switches.
2. Single Pole Double Throw (SPDT)
An SPDT push button switch, another single pole switch type, offers two sets of contacts, allowing it to act as a toggle switch between two different electrical paths. This is useful in scenarios where you need to choose between two actions with a single button press.
3. Double Pole Single Throw (DPST)
DPST push button switches have two sets of contacts, each operating independently. They are commonly used in situations requiring two separate circuits to be controlled simultaneously.
4. Latching and Momentary Switches
Push button switches can be further categorized as latching or momentary. Latching switches maintain their state after being pressed, while momentary switches return to their original state when released. These distinctions are important depending on the intended function of the switch.
Debouncing: Ensuring Reliable Signals
One common issue with push button switches is debouncing. When you press or release a button, it can create rapid fluctuations in the electrical signal due to the mechanical nature of the switch. This bouncing generates a series of electrical spikes and dips, making it challenging for the connected circuitry to interpret the intended input accurately. Debouncing is the process of filtering out these erratic signals to ensure a clean and stable transition between states. Achieving this involves employing techniques such as:
Hardware Debouncing: This method incorporates passive electronic components like resistors and capacitors into the circuit. These components introduce a controlled delay in the signal, effectively smoothing out the bounces. This delay ensures that the signal remains steady for a brief period after the initial transition, allowing the connected electronics to register a single, stable input.
Software Debouncing: In microcontroller-based systems, software algorithms can be used to handle debouncing. These algorithms monitor the button's state over time and register a press or release only when a stable state is maintained for a predefined duration. This approach eliminates the need for additional hardware components but requires efficient coding and real-time monitoring.
Filtering Out Multiple Fast Button Presses
In scenarios where users might rapidly press a button, it's essential to filter out unintended or extraneous signals. This can be achieved through electronic circuitry that detects and ignores rapid successive button presses, ensuring that only intentional inputs are registered. Here's how it works:
Timing Mechanisms: Some circuits utilize timing mechanisms, such as timers or counters, to keep track of the time interval between consecutive button presses. When a button is initially pressed, the timer starts counting. If another press occurs within a specified timeframe, the circuit can be programmed to ignore it as a repeated press, ensuring that only the first press is registered.
Sophisticated Algorithms: In more advanced systems, especially those based on microcontrollers or digital signal processors, filtering algorithms can be implemented. These algorithms analyze the timing and sequence of button presses, allowing the system to distinguish between legitimate user inputs and unintended, rapid presses. By considering factors like the time between presses and the order of button activations, these algorithms ensure that only intentional inputs affect the system's behavior.
Pull-Up and Pull-Down Resistors
Pull-up and pull-down resistors play a crucial role in pushbutton switch circuits, especially in microcontroller-based designs. These resistors are used to ensure that the input signal to the microcontroller is in a known state when the button is not pressed.
Pull-Up Resistor: When the button is not pressed, it connects the input pin to a voltage level (usually VCC), ensuring a high signal when the button is not pressed. When the button is pressed, it connects the pin to ground, resulting in a low signal.
Pull-Down Resistor: Similar to the pull-up resistor, it ensures a low signal when the button is not pressed and connects the input pin to VCC when the button is pressed, resulting in a high signal.
We see pull-up and pull-down applications in software as well when we set default values or states for variables, flags, or configuration options—specifying how a particular variable or option should behave when it is not explicitly set.
Common Applications
Push button switches find applications in various domains:
Household: They are integral to light switches and many appliances.
Automotive: Used in car dashboards for multiple functions.
Industrial: Control panels in factories and machinery.
Electronics: Integral components in electronic devices and gadgets.
Electronic Symbols
In electronic schematics, push button switches are represented using specific symbols. The most common symbols for push buttons include:
Conclusion
Whether you're turning on a light, starting your car, or operating heavy machinery, push button switches play a crucial role. Understanding their science and functionality is essential for anyone working with electronic circuits. So now next time you press that unassuming button, you can understand the intricate science behind it.
