The RF Engineer's Guide to Designing Printed Trace Antennas

Printed trace antennas provide cost-effective and compact wireless connectivity for modern IoT devices. However, hardware performance depends almost entirely on printed circuit board layout precision. Small deviations in trace width, ground plane keepout geometry, or substrate parameters can alter resonance frequency by hundreds of megahertz. Engineers learning how to design PCB trace antenna structures must understand exact layout parameters, clearance rules, and electromagnetic constraints. The RF engineer’s guide to printed trace antennas covers the specific physical rules required to ensure a printed antenna performs to specification and avoids expensive fabrication respins.

Key Takeaways

• Printed trace antenna performance depends on accurate stackup data, including substrate thickness, copper thickness, and dielectric constant at the operating frequency.
• A controlled 50 Ω feed line, properly placed matching network, continuous reference plane, and correctly sized keepout region are essential for minimizing impedance discontinuities and return loss.
• Solder mask, conformal coatings, nearby copper, vias, and metal enclosures can shift the antenna’s resonant frequency and must be included in the final layout and simulation model.

Antenna Types and When to Use Each

Before calculating trace widths, engineers must select the correct topology for the target frequency band. Different frequency ranges (with standard ranges including 433 MHz, 915 MHz, 2.4 GHz, and 5.8 GHz) require specific geometric structures to maintain efficiency.

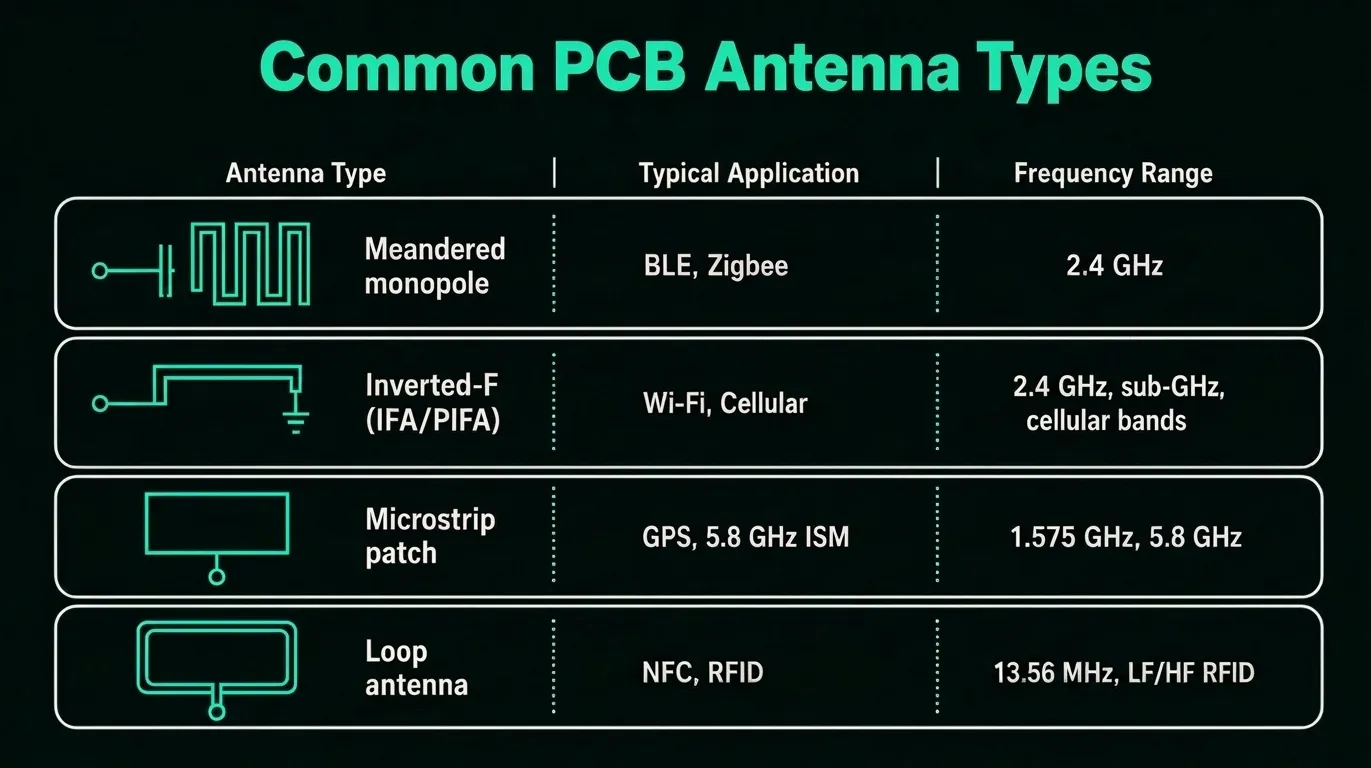

Common Trace Antenna Topologies

PCB Stack-Up and Substrate Parameters for Trace Antennas

The dielectric constant (Dk) determines the electrical length of the antenna trace. Because standard FR4 consists of fiberglass and epoxy, its Dk can vary with frequency, resin content, and moisture absorption. For a 2.4 GHz Wi-Fi antenna, designers should use a Dk value measured near the operating frequency rather than a nominal datasheet value measured at 1 MHz. Material selection also affects antenna efficiency and dimensional accuracy:

• Standard FR4: Suitable for many cost-sensitive RF designs, but its Dk tolerance and dielectric loss can reduce antenna predictability.
• Rogers RO4350B: Provides tighter Dk control and lower dielectric loss, making it better suited to high-efficiency 5.8 GHz applications.
• Board thickness: Changing the substrate thickness from 1.6 mm to 0.8 mm changes the required feed-line width and impedance, so the RF path must be recalculated.

The PCB stackup and ground structure are equally important. The antenna feed trace should run over a continuous reference plane. Designers should avoid:

• Routing the RF feed line across split ground planes.
• Placing vias or copper discontinuities near the feed path.
• Allowing ground or copper pours to violate the antenna keepout area.

These discontinuities disturb the intended impedance, introduce parasitic effects, and can increase unintended electromagnetic radiation.

How To Design PCB Trace Antenna Layout

Following strict PCB microstrip antenna layout guidelines helps maximize power transfer from the transceiver to the radiating element. Engineers must calculate the trace width required for a 50 Ω characteristic impedance based on the actual PCB stackup. IPC-2141A provides baseline equations for estimating microstrip and stripline dimensions.

Feed Line and Matching Network

To understand how to design PCB trace antenna layouts, engineers must calculate the 50 Ω feed-line width from the actual PCB stackup and place the matching network close to the antenna feed point. A pi or T matching network positioned near the radiator reduces added trace inductance and makes final tuning more predictable. Key layout requirements include:

• Calculate the feed-trace width from the substrate thickness, copper thickness, and dielectric constant.
• Route the feed line over a continuous reference plane.
• Keep the matching network close to the antenna input.
• Maintain the specified clearance around the radiating element.

The antenna keepout geometry strongly affects bandwidth, resonance, and radiation efficiency.

RF Via Fencing

Ground-via fencing, also known as RF via fencing, can isolate RF traces from nearby digital noise – but the spacing must be controlled. A common guideline places vias at intervals shorter than one-twentieth of the wavelength, or λ/20, at the highest operating frequency. Vias placed too far apart provide limited shielding. However, placing them too close to the microstrip edge can change the local impedance and degrade return loss.

Solder Mask Expansion For PCB Antenna

Covering an RF radiator with a standard liquid photoimageable solder mask can alter antenna performance. Because the polymer has a higher dielectric constant than air, it increases parasitic capacitance and lowers the resonant frequency. Configuring precise solder mask expansion for PCB antenna traces mitigates such detuning effects. To further reduce detuning:

• Expose the antenna trace rather than covering it with a solder mask.
• Expand the solder mask opening beyond the copper radiator.
• Allow sufficient margin for fabrication registration tolerances.
• Include conformal coatings in the electromagnetic simulation model.

A typical design rule expands the mask opening by at least 0.1 mm beyond the copper edge. However, the required clearance should still be confirmed with the PCB manufacturer. If the finished product uses conformal coating, engineers must model the coating dielectric before fabrication. Otherwise, the assembled antenna may resonate below its intended frequency.

Overlapping Copper PCB Antenna Layout

An overlapping copper PCB antenna layout occurs when a ground pour or other copper feature enters the antenna keepout zone. The unwanted copper capacitively couples with the radiator, shifts the resonant frequency, and reduces radiation efficiency. Designers should enforce CAD keepout rules that prevent:

• Ground pours from extending beneath the radiator.
• Copper polygons from entering the antenna clearance area.
• Signal traces or vias from crossing the keepout zone.
• Metal enclosures from sitting too close to the antenna.

When a reference plane extends beneath a monopole radiator, the structure can behave more like a transmission line than a free-space radiator. Nearby metal housings can also detune the antenna and distort its radiation pattern. In such cases, engineers must model the antenna with the enclosure present, recalculate the geometry, and retune the matching network for the final mechanical assembly.

Using AI Routing Rules to Enforce RF Design Constraints in Flux

High-frequency PCB design requires strict rule enforcement to prevent layout errors. Flux allows engineers to define antenna keepout regions, copper-clearance rules, and impedance constraints directly within the project. Its AI-assisted DRC flags RF violations before manufacturing files are exported. Designers can create impedance-controlled routing profiles for a 50 Ω feed trace and verify alignment with IPC-2141A guidance. Flux continuously checks copper pours and traces for intrusion into the antenna keepout zone. The final antenna geometry can also be exported to a 3D electromagnetic solver for simulation before fabrication. Learning how to design PCB trace antenna layouts requires precise clearance and impedance control. Try Flux now to help teams avoid costly fabrication errors and maintain consistent antenna performance by enforcing RF rules before Gerber export
