PCB Netlists Explained: How Schematics Connect to Layouts

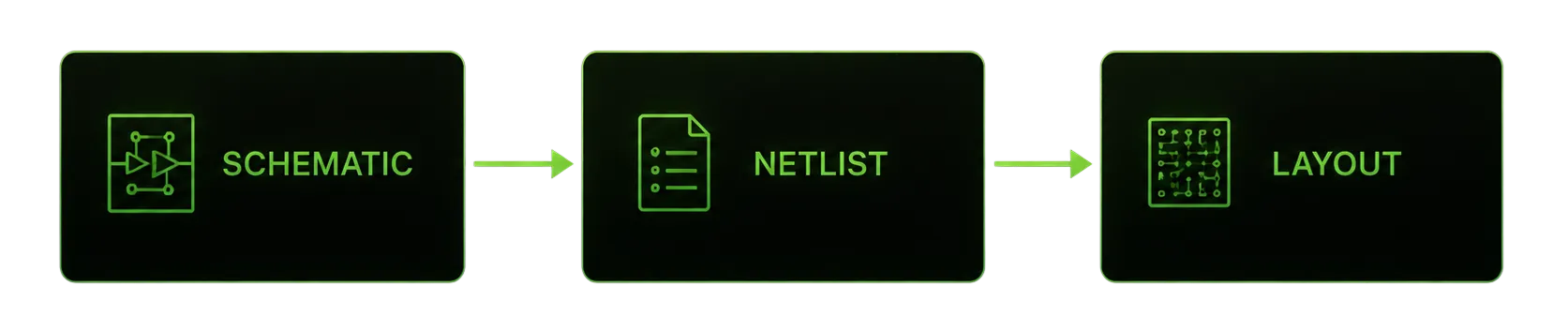

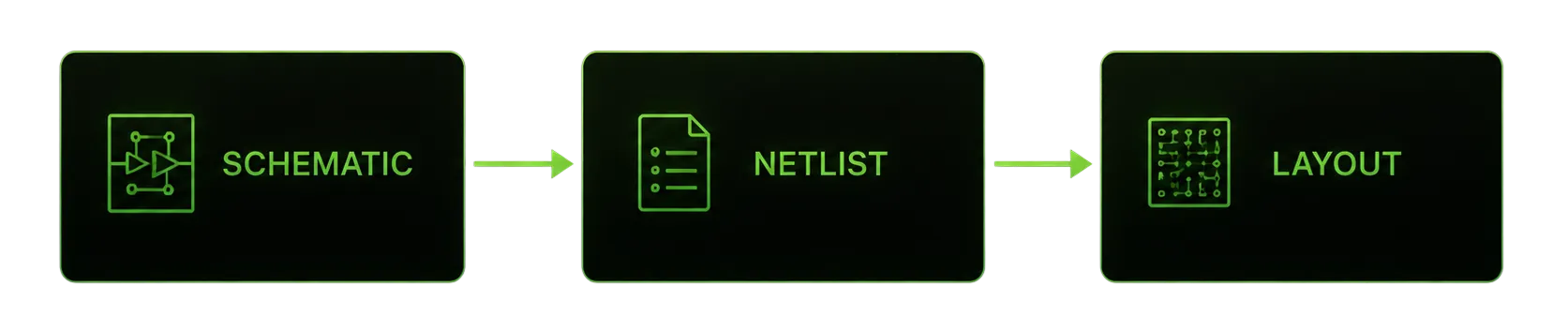

Quick Answer: A PCB netlist is a machine-readable description of every electrical connection in a circuit. Netlists connect schematic capture to PCB layout by defining how components should be electrically connected throughout the design process.

Key Takeaways

• PCB netlists are automatically generated from a validated schematic, converting every electrical connection into a structured dataset for downstream design tools.
• Imported netlists generate the layout's connectivity (ratsnest) and enable DRC to verify that every routed trace matches the intended electrical design.
• Modern unified EDA platforms like Flux eliminate manual netlist exports by maintaining a live connectivity model that keeps schematics and layouts synchronized automatically.

What Is a PCB Netlist?

A PCB netlist is a plain-text, ASCII-formatted file that excludes every graphical symbol and wire from a schematic to generate a structured list mapping specific component pins to their shared electrical nodes. Schematics function as visual abstractions, using graphic symbols and drawn lines for human readability. Layout engines simply cannot process these images. Consequently, the software demands a strict mathematical map tying every physical component pin directly to its assigned electrical net. Such a netlist provides that mapping and becomes the source of truth for your electronic design automation (EDA) software. When you import one into a layout environment, the tool knows exactly which pad on U1 must connect to which pad on C4, for example, with no ambiguity.

Because different engineering stages require different data structures, several netlist formats exist. The format you export depends on whether you are running a simulation, exchanging data between tools, or testing a bare board.

Common PCB Netlist Formats and Uses

How Netlists Are Generated

Netlist generation requires a clean schematic database. The CAD software parses every schematic file, identifies each node where a wire intersects a component pin, and groups those intersections into named nets. Any two pins sharing a net name get recorded as electrically connected.

The extraction process enforces strict rules before a run. To satisfy such conditions, the design must pass an Electrical Rules Check (ERC), which scans for floating pins, conflicting output drivers, and unconnected nets. Generating a netlist exposes such errors directly. For example, a pin with no assigned net simply cannot be written into the connectivity matrix, so the export fails and forces the designer to fix the schematic capture first.

What Information Does a Netlist Contain?

A standard netlist file contains three data types:

• Reference designators
• Pin numbers
• Net names

The syntax varies by CAD vendor, but the underlying structure is identical across tools. The software names a net and then lists every component pin attached to it.

Below is a Protel-formatted ASCII netlist example:

[
GND
U1-4
C1-2
C2-2
]

[
3V3
U1-8
C1-1
R1-2
]

[
Data_TX
U1-2
R1-1
]

The GND block tells the layout tool to connect pin 4 of U1, pin 2 of C1, and pin 2 of C2 to the same net. If you modify a footprint or change a reference designator during schematic capture, those pin numbers update on the next export. Specialty formats like IPC-D-356 extend this structure by adding physical X/Y coordinates for each test point, which bare board testers use to verify continuity.

How Netlists Drive PCB Layout

Once the layout software imports the netlist, it projects the logical connections into the physical workspace by generating a ratsnest: a visual web of straight lines connecting component footprints according to associated net assignments. Such lines as part of the ratsnest show you what needs to be routed, not how to route it.

As you route traces, the background Design Rule Checker (DRC) constantly validates your physical copper paths. It measures these real-world routes against the strict logic constraints dictated by the imported netlist file. For example, if you attempt to connect a 3V3 pad to a GND pad, the software triggers a DRC violation and blocks the connection. The netlist acts as a boundary condition on the entire routing process, ensuring the finished copper matches the original schematic intent.

Common Netlist Problems

Layout tools trust the imported netlist without question. As a result, any pin mismatches or missing connections hidden inside that text file will generate physical boards that fail in highly predictable ways.

1. Pin mismatches are among the most common causes of scrapped boards. For example, if a MOSFET schematic symbol labels its terminals as pins 1, 2, and 3, but the physical footprint numbers its pads as Gate, Source, and Drain, the netlist generator cannot map the connections. The layout tool will either leave the pads unconnected or assign them incorrectly. Neither of these outcomes are recoverable without a board respin.
2. Sync failures are the other major failure mode. Consider the following common scenarios:

• An engineer adds a pull-up resistor to the schematic but forgets to regenerate and re-import the netlist. Because the layout engine stays completely blind to the new part, the physical board goes to manufacturing and ships missing that connection.
• A footprint swap updates pad numbering in the library but not in the cached netlist. Thanks to this oversight, the layout reflects the old mapping.
• Two engineers work on schematic and layout in parallel using separate file exports. Inevitably, their local netlist versions diverge without any warning, causing silent sync errors without triggering a single system warning.

Each scenario produces a board that passes DRC but fails electrically, because the DRC can only check against the netlist it was given.

Modern Netlist Workflows

The legacy workflow -- export an ASCII netlist, open a layout tool, import the file, repeat after every schematic change -- creates a disconnected snapshot at each export step. Every snapshot is a potential version mismatch. Such sync failures are the predictable consequence of managing connectivity through manual file transfers.

Modern unified EDA environments eliminate manual netlist handling by maintaining connectivity as a live data model. For instance, Flux uses a connected schematic-to-layout architecture where drawing a wire on the schematic immediately updates the ratsnest in the layout. There is no export step, no file to import, and no version to track. Rather, the netlist exists as a continuous internal state rather than a periodic file artifact, which closes the gap where those synchronization errors originate.
