Diodes, with their unique ability to direct current flow, are fundamental components in the world of electronics. Recognizing and understanding diode symbols is not just a skill but a necessity for enthusiasts and professionals alike. This article delves into the essence of diodes, their functions, and the symbols that represent them in electronic schematics. By exploring various types of diodes, such as the Zener diode, Schottky diode, and light-emitting diode (LED), we'll uncover the diverse roles they play in electronic circuits.

What is the Electrical Signal for a Diode?

A diode, fundamentally a PN junction, permits current to flow primarily in one direction. It consists of two different doped semiconductor regions -- an N doped and a P dope region -- joined together, forming a PN junction.

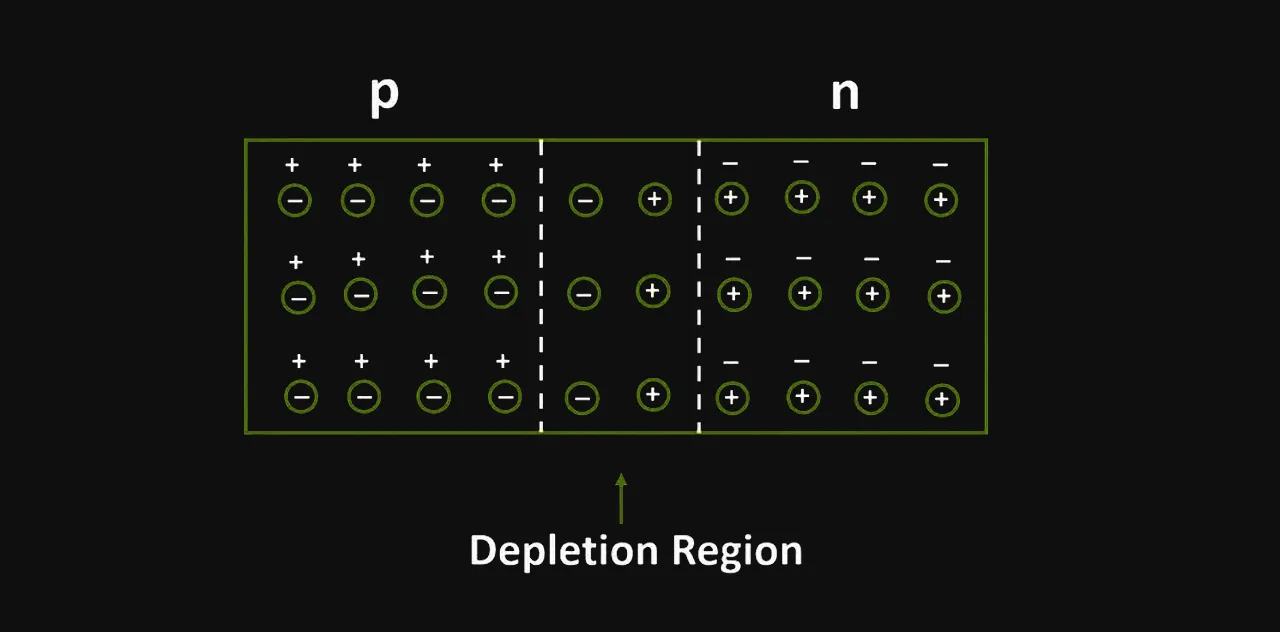

Shown here is the movement of electron, the PN junction diode consists of a p-region and n-region separated by a depletion region where charge is stored

Its electrical signal is characterized by allowing easy current flow in the forward direction, while significantly impeding it in the reverse. This unique property is visually represented by an arrow, pointing in the allowed direction of current flow, and a line indicating the barrier for reverse flow.

How Do You Identify a Diode?

Identifying a diode in a circuit involves looking for a component with two terminals: the anode and the cathode. The anode is marked by the arrowhead in the diode symbol, pointing towards the cathode, marked by the vertical line. Physical diodes often have a band on the cathode side. In schematics, diodes are also marked with designators like ‘D’ followed by a number (e.g., D1, D2).

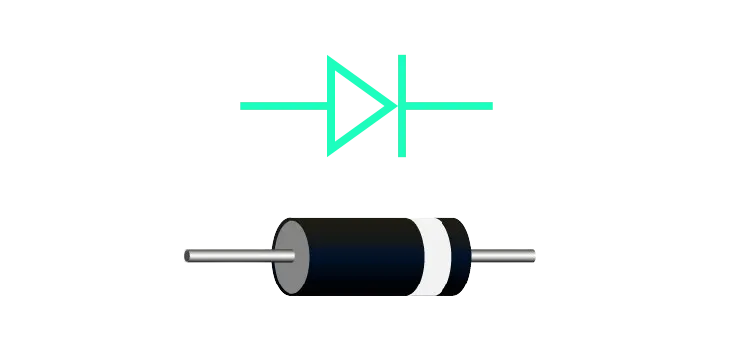

Actual pn junction diode with electronic symbol and its pinout; anode and cathode

What is a Diode Used For?

Diodes serve myriad purposes in electronics. Their primary function is to enable unidirectional current flow, making them crucial for tasks like rectification – converting alternating current (AC) to direct current (DC). Specific diode types, such as the Zener diode, offer voltage regulation by maintaining a constant voltage over a range of currents. Varactor diodes (varicaps) change capacitance based on the applied voltage, useful in tuning circuits. Meanwhile, Schottky diodes, known for their low forward voltage drop, excel in fast-switching applications.

What is a Diode Function?

The function of a diode is primarily to control the direction of current flow in a circuit. Besides this, diodes have specialized functions based on their type:

  1. Zener Diode: Regulates voltage by allowing current to flow in reverse after a certain threshold voltage is reached.
  2. Schottky Diode: Known for its low forward voltage drop, it’s used for fast switching and high-frequency applications.
  3. Light Emitting Diode (LED): Emits light when current flows through it, used in display and lighting applications.
  4. Photodiode: Converts light into electrical current, used in light detection systems.
  5. Laser Diode: Emits coherent light, used in optical communications and laser pointers. A laser diode can be dangerous if not operated properly.
  6. Rectifier Diode: Converts AC to DC, used in power supply units.
  7. Varactor Diode (Varicap): A variable capacitor, utilized in frequency tuning and filtering applications.
  8. Step Recovery Diode: Used for generating very short pulses in high-frequency applications.

The Purpose of a Rectifier

A rectifier's core purpose is to convert AC to DC. In electronic circuits, this is crucial for powering devices that require stable DC voltage. Rectifier diodes are specifically designed for this task, efficiently handling high currents and voltages. Rectifiers are essential in power supplies, battery charging systems, and are integral to the functioning of electronic devices ranging from smartphones to industrial machinery.

How Does an Alternator Rectifier Work?

In an automotive alternator, the rectifier converts the AC generated by the alternator into DC to charge the battery and power the electrical system. It typically employs a set of diodes arranged in a bridge configuration. The alternator generates three-phase AC, which the diode bridge rectifies into a smoother DC output. This process is vital for maintaining the battery’s charge and ensuring a consistent power supply to the vehicle's electrical systems.

Conclusion

Understanding diode symbols and their functions is a critical aspect of electronics. From simple rectification tasks to complex frequency tuning, diodes play pivotal roles in various applications. Recognizing these symbols not only aids in circuit analysis but also enriches the understanding of how electronic components interact to perform diverse and sophisticated functions. Whether it's a Zener diode stabilizing voltage or a laser diode in an optical communication system, each diode type brings unique capabilities to the vast and intricate world of electronics.

Profile avatar of the blog author

Jharwin Barrozo

Jharwin is an electronics engineer mainly focused on satellites. He built his own ground station using Flux to monitor RF activities on the International Space Station. Find him on Flux @jharwinbarrozo
