Design Buck Converters Like a Pro

When you’re first diving into power-supply design, buck converters can feel a bit like magic boxes—take a higher voltage in, and out comes a perfectly regulated, lower voltage with impressive efficiency, minimal noise, and a tiny PCB footprint. Yet the true secret to a well designed converter isn’t just hidden in some arcane equation; it’s also the way you lay out copper on your board.

What Is a Buck Converter… Really?

At its heart, a buck converter is nothing more than three core elements working together to regulate a higher voltage to a lower voltage—and understanding these will make everything else click.

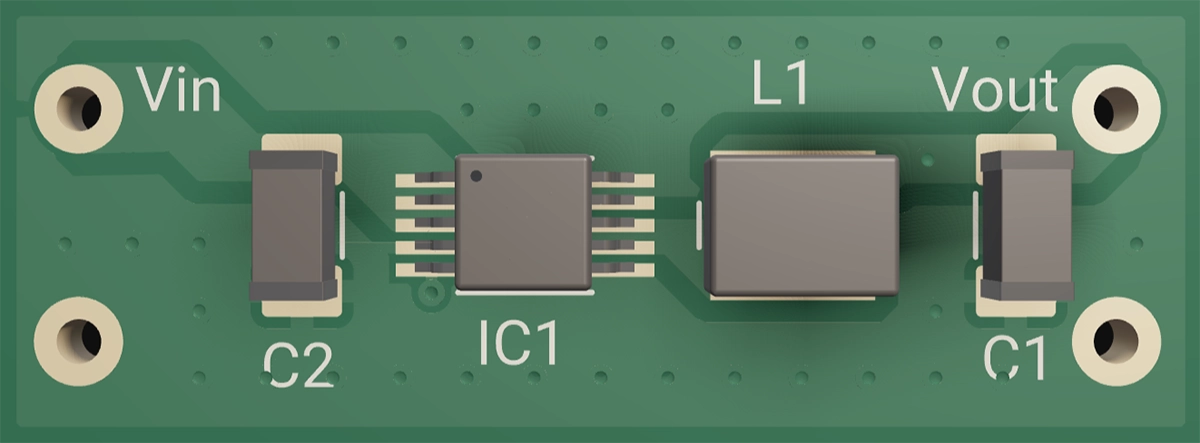

TPS62040, a Typical Buck Converter Design

The Fast Switch (MOSFET)
This semiconductor turns your input voltage on and off hundreds of thousands—or even millions—of times per second. By varying the duty cycle (the fraction of time “on” versus “off”), it controls the average energy delivered downstream.
The Inductor (“Energy Storage”)
During each “on” phase, the inductor stores energy in its magnetic field; when you switch off, that energy discharges into the load. This pulsed exchange smooths out the current and sets the stage for a steady voltage.
The Capacitors (“Voltage Buffers”)
Placed at the output (and often at the input), these absorb the inductor’s ripple and deliver bursts of current when your load suddenly demands it. Together, the inductor and capacitors form an LC filter that turns square pulses into a level, and ideally stable, DC voltage rail.

Here’s the simple math for a 12 V→5 V converter:

That 42 % duty cycle tells the MOSFET exactly how long to stay on each cycle so the LC filter averages out to 5 V.

Behind the scenes, a control IC monitors the output, compares it to an internal reference, and tweaks that duty cycle in real time to handle changing loads or input swings. But regardless of controller complexity, the switch + inductor + filter always remain the converter’s heart and soul.

Component Selection: Why It Matters (and How to Get It Right)

Pick the wrong inductor, and you may face problems like overheating, excessive output ripple, or even core saturation that starves your load under sudden demand. To help you choose wisely, here’s what every beginner EE should know about inductor characteristics:

Current Rating and Saturation (Isat)
Every inductor has a maximum current above which its magnetic core saturates and loses inductance, causing large current surges. Aim for an Isat at least 1.2×–1.5× your peak load to ensure reliable performance under transient conditions.
DC Resistance (DCR)
DCR is the winding’s inherent copper resistance. Lower DCR reduces conduction losses and heat buildup—boosting efficiency—but often comes in a larger or costlier package. Balance your efficiency goals with board space and budget constraints by selecting the lowest practical DCR.
Core Material
The core defines how the inductor behaves across frequencies and currents:‍
- Ferrite cores are the workhorses of switching converters, offering high permeability and low losses at high frequency. They deliver crisp switching edges and minimal ripple—ideal for most buck designs.‍
- Powdered-Iron cores incorporate distributed gaps, giving a gentler saturation knee and better performance under high DC bias. Use them when your peak currents vary widely or when you need softer saturation behavior.‍
- Shielded vs. Unshielded: Shielded inductors confine magnetic fields within their package, reducing EMI coupling to adjacent traces. Unshielded inductors can be more compact but may require extra clearance from sensitive circuits.

Package & Thermal Performance
Inductor packages differ in footprint, height, and thermal dissipation. Compact surface-mount inductors save board space but may run hotter; larger through-hole or tall-stack types handle more power but occupy more real estate. Evaluate your thermal budget and mechanical constraints when selecting package size.

Pro tip: Choosing an inductor with a bit of extra saturation current rating and modestly lower DCR gives you valuable headroom during prototyping—preventing unexpected heat and ripple issues as your load conditions change.

Capacitor Mix

A combination of MLCCs and a bulk cap covers ripple from kHz to MHz—get this wrong, and you’ll hear audible squeals or see output spikes.

Capacitor Selection

Type	Role	Placement	Pro Tip
MLCC	Kill high-frequency ripple	Within 1–2 mm of switch and inductor	Derate by ≥2×—X5R/X7R parts deliver only 40–60 % of marked capacitance under bias
Bulk	Reservoir for mid/low-freq.	Beside the output inductor	Watch ripple-current rating; its ESR provides a natural damping zero

Deep dive: MLCCs lose capacitance under DC bias and heat. And yes, they can sing! Ensure parallel MLCCs are carefully secured mechanically to mute piezo effects. Placing smaller-value capacitors first help to attenuate the high frequency singing in the larger smoothing caps.

Layout 101: Your Single Biggest Win

Having chosen your parts, layout is your next battleground. The difference between a noisy, inefficient converter and a clean, reliable one often comes down to copper placement. Follow these steps to keep that switching loop tight and your ground plane unbroken.

Remember: “Keep the switching loop tiny and the ground plane continuous.”

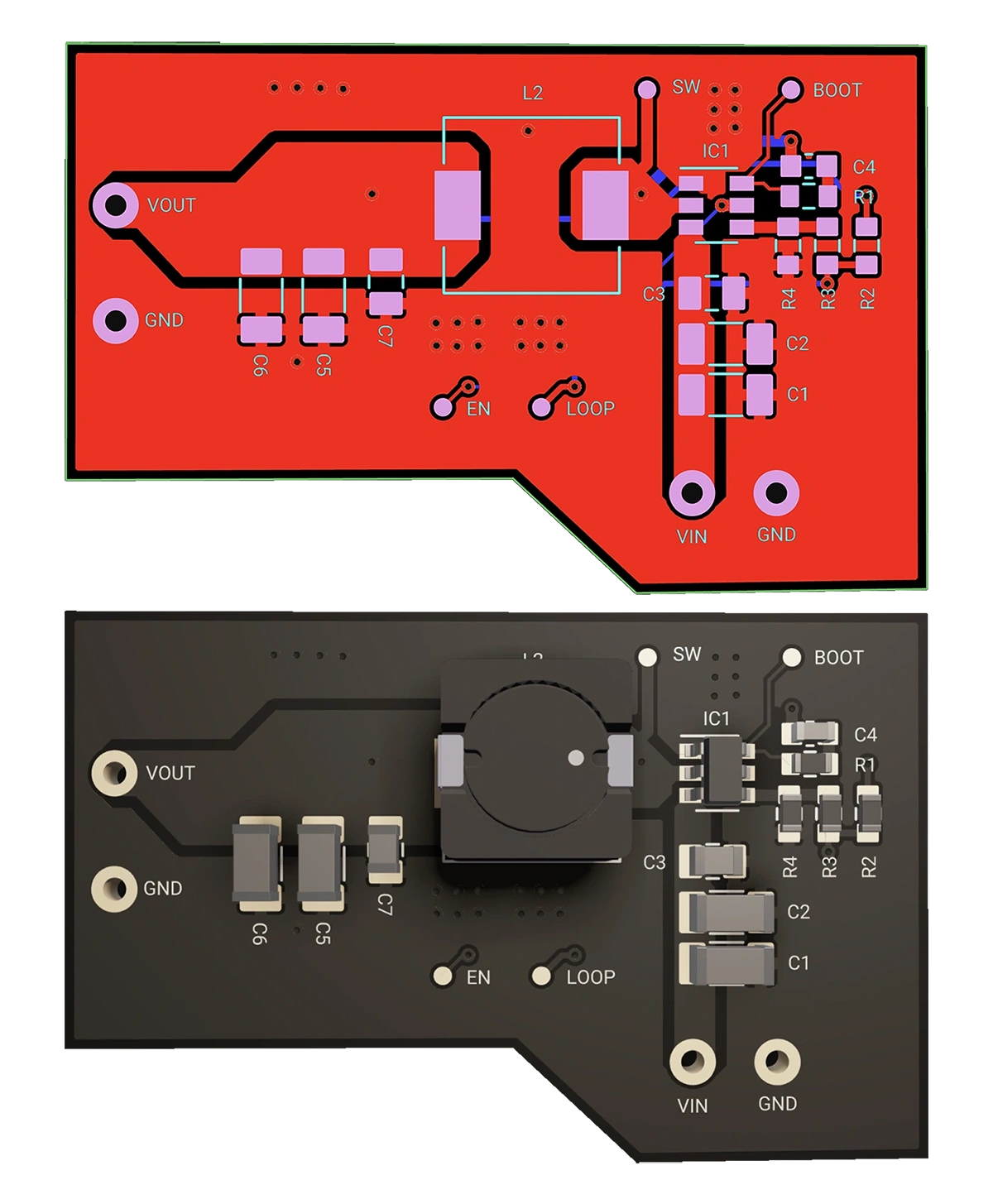

Minimize the Switch Loop‍

Sketch the loop: Input cap → High-side MOSFET → Inductor → Output cap → Return to input cap.
Goal: Loop area < 10 mm². Every extra mm² adds parasitic inductance, causing ringing, EMI, and wasted switching energy.
Tip: One customer saw a 20 dB EMI drop simply by shrinking their loop from 15 mm² to 8 mm²!

Solid Ground Plane

Never split your ground under the SW node. Return currents hug the shortest path—any gap forces detours that radiate like tiny antennas.

Via Stitching

Use at least six short vias per cap or ground polygon. More vias lower impedance, spread heat, and tame high-frequency noise.

‍Separate Control Signals

Route gate-drive and feedback traces outside high-current loops. If intersections are unavoidable, shield with a small ground pour.

Different Buck Converter Topologies

From full DIY assemblies to one-click, ready-to-use modules, these different topologies trade off flexibility, board space, and time-to-market. Pick the one that fits your project rhythm.

Topology	What You're Really Building	When to Use it
Discrete	Hand-select controller, gate driver, MOSFETs, inductor. Like building a bike wheel by wheel	Total flexibility, custom performance, or lowest part cost
DrMOS	Integrated MOSFET + driver in one package—just add inductor and caps. Like buying a pre-built engine.	Mid-power designs, tight PCB area
Power Module	Complete power stage: driver, MOSFETs, inductor, capacitors, telemetry—even PMBus. Ready-to-ride e-bike	Fastest path to market, highest integration

Each template already includes polygon pours for power and ground, and via-stitching. Once cloned, customize only what matters.

Tips To Design Your Best in Flux

▶️ Polygons & Zones:

Ground planes are a default in any Flux project, which reflows around all parts and pads to help with noise isolation. Polygons are now in Flux helping you leverage wide current paths for your output voltage to flow through. Adjust thermal reliefs, keep-outs, and copper weights without redrawing anything.

🤖 Copilot: Your AI EE Mentor:

Stuck on compensation loops or gate-resistor values? Ask Copilot right inside the editor. It explains theory, suggests values, and even pulls tables from datasheet PDFs.

🛣️ Auto-Layout for Non-Critical Nets:

Zone off low-speed signals—UART, I²C, sensors—and let Auto-Layout handle them. That frees you to hand-route the critical buck loops that define performance.

“Copilot help me determine the best orientation of U1 to minimize the switching current loop.”

Quick-Reference Cheat Sheet

Think of this as your design checklist: tape it to your monitor, keep it next to your keyboard, or fold it in your notebook. Pull it up whenever you need a formula, a layout reminder, or a topology refresher.

Key Formulas & Practices

Topic	Formula / Practice	Why it Matters
Duty Cycle (D)	$D = V_{O U T} / V_{I N}$	Sets the average output voltage
Inductor Ripple	$Δ I_{L} = \frac{( V _{I N} - V _{O U T} ) \cdot D}{f _{S W} \cdot L}$	Balances ripple vs. transient response
Efficiency (η)	$η = \frac{V _{O U T} \cdot I _{O U T}}{V _{I N} \cdot I _{I N}} \times 100%$	Quantifies total losses
Switching Loss (Psw)	$P_{s w} = (E_{o n} + E_{o ff}) \cdot f_{S W}$	Guides MOSFET choice and frequency
SW Loop Area	less than 10 mm²	Minimizes parasitic inductance and EMI
Via Stitching	≥ 6 vias per capacitor	Lowers impedance and spreads heat
Grounding	Continuous plane under SW node	Prevents unintended current loops

Topologies & Control Methods

Aspect	Options / Methods	When to Use
Topologies	Discrete / DrMOS / Power Module	Flexibility vs. integration vs. speed to market
Control	Voltage-mode, Peak-Current, COT	Trade loop speed, stability, and complexity
Gate-Drive Tuning	Rgate: 2–5 Ω; Dead-time: 20–50 ns	Optimize EMI control vs. switching speed
Capacitor Mix	MLCC + Bulk (Ta/Poly)	Flat impedance across the frequency spectrum

Ready to Build Your First Buck in Minutes?

Pick your topology above and click Clone in Flux.
Drag & drop your caps and inductor from the parts panel.
Invoke Copilot for any component or layout question.
Enable Auto-Layout for all non-critical nets.
Hand-tune your switch loops—and watch your efficiency and EMI metrics soar.

With Flux’s polygons, AI Copilot, and Auto-Layout, you’ll spend less time wrestling nets and more time optimizing your power stage—so you can ship faster and with confidence.

👉 Get started now » Open Flux and Clone a Buck Converter
