Zener diodes represent a fundamental component in the design of electronic circuits, particularly for their role in maintaining consistent voltage levels. As versatile as they are crucial, these components can be found in everything from simple power supplies to complex signal processing systems. Their unique ability to regulate voltage makes them indispensable in the modern electronic landscape.

Projects

related projects, submodules and templates

If you’re just getting started with
Projects
, we have many

Theoretical Foundations of Zener Diodes

The Zener diode distinguishes itself from ordinary diodes through its ability to regulate voltage. At its core lies the pn junction, where the anode, a p-type semiconductor, meets the cathode, an n-type semiconductor. This junction allows current to flow readily from the anode to the cathode but restricts flow in the opposite direction, a fundamental diode characteristic. However, when the voltage drop across the Zener diode exceeds Vz, it permits reverse current flow, thus acting as a voltage regulator.

How do you identify a Zener?

To identify a Zener diode, you can look for the following characteristics:

  1. Markings and Labels: Zener diodes are typically marked with a part number or a specific code indicating their breakdown voltage. This code may be printed or etched on the diode's body.
  2. Physical Appearance: Zener diodes often resemble regular diodes, with a cylindrical body and a band indicating the cathode. However, they might not have distinctive physical features that set them apart from standard diodes.
  3. Circuit Position: In a circuit, Zener diodes are often connected in reverse bias (opposite direction to regular diodes) across a voltage source, where they function as voltage regulators or protectors.
  4. Testing with a Multimeter: You can use a multimeter in diode test mode to measure the forward bias voltage like a regular diode. To test for Zener breakdown voltage, a more complex setup is required where a variable voltage is applied in reverse bias while monitoring current flow.

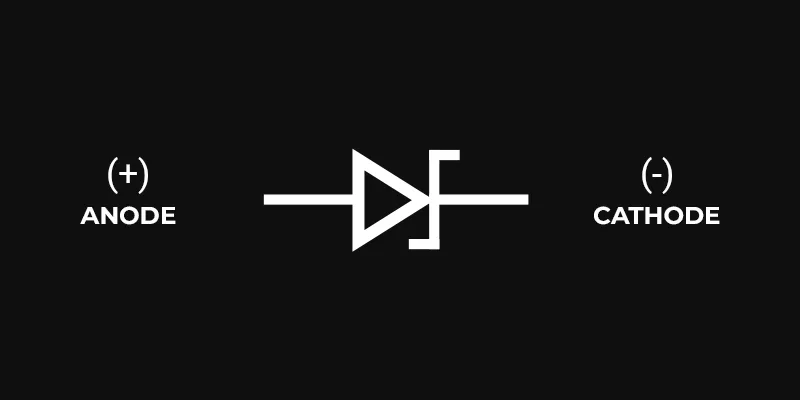

Electronic symbol of a zener diode

Voltage Regulation Through Reverse Breakdown

The Zener diode's capacity to stabilize voltage is harnessed by connecting it in reverse bias across a load. When the voltage drop across the Zener diode reaches Vz, it enters a breakdown mode, conducting and maintaining a constant voltage at its terminals, effectively regulating the output voltage (Vout).

Why does Zener diode work in reverse bias?

A Zener diode works in reverse bias because it is designed to allow current flow when the reverse voltage exceeds a certain threshold, known as the Zener voltage. This occurs due to the Zener effect and avalanche breakdown, where a strong electric field causes electron movement across the diode's junction, enabling current flow in the reverse direction and making it useful for voltage regulation.

Series Resistance and Current Limitations

To ensure the Zener diode operates within safe current limits, a series resistor is introduced in the circuit. This resistor, positioned between the input voltage source and the anode of the Zener diode, plays a critical role in limiting the current to prevent damage due to excessive power dissipation.

Design Specifications of Zener Diodes

When incorporating Zener diodes into voltage regulation applications, engineers must consider parameters such as Vz, power dissipation, and the maximum current (Iz) the diode can handle. Zener diodes are specifically engineered to sustain a stable Vz, which is vital for maintaining a consistent Vout.

Ensuring Waveform Integrity

Zener diodes are adept not only at maintaining DC voltage levels but also at preserving the integrity of waveforms in AC circuits. They are instrumental in clipping waveforms to a certain voltage level, providing a stable reference voltage that is crucial in many electronic applications.

Integrating Zener Diodes in Circuitry

Practical application of Zener diodes as voltage regulators involves integrating them into circuits with consideration for both their voltage regulation capabilities and their thermal properties.

The Crucial Role of Series Resistors

In any Zener diode-based voltage regulation circuit, the series resistor is vital. It not only defines the current flowing through the cathode of the Zener diode but also influences the voltage drop across the diode, playing a decisive role in the effectiveness of voltage regulation.

Thermal Management and Heat Dissipation

A Zener diode in the role of a voltage regulator must dissipate heat efficiently to maintain its performance and longevity. Engineers must provide appropriate heat sinking and consider the power rating of the Zener diode to mitigate the risk of overheating.

The Versatility of Zener Diodes in Applications

Zener diodes serve as voltage regulators in various applications, from simple voltage stabilization tasks to protecting against voltage transients. They ensure that Vout remains constant, a critical function in many power supply circuits.

Protection Against Voltage Transients

In overvoltage protection circuits, Zener diodes safeguard sensitive electronics. They are connected across critical components where they clamp the voltage drop, absorbing and dissipating the energy of voltage spikes, thus protecting the cathode from overvoltage conditions.

Reference Voltage in Signal Processing

In signal processing, the Zener diode provides a stable reference voltage for comparators or analog-to-digital converters (ADCs), ensuring signal fidelity and consistency.

Addressing Zener Diode Challenges

Despite their robustness, Zener diodes encounter challenges such as thermal management and voltage tolerance that can impact their role as voltage regulators.

Managing Thermal Conditions

Thermal instability is a significant challenge in the use of Zener diodes. Excessive heat can lead to failure, making it imperative to manage the thermal conditions within which the Zener diode operates, ensuring the cathode does not exceed its maximum temperature threshold.

Precision in Voltage Regulation

The manufacturing variances in Zener diodes can lead to a tolerance in Vz, affecting the precision of voltage regulation. Engineers mitigate this by selecting diodes with tight tolerance levels or by implementing calibration techniques in the final circuit design.

Series Resistance and Current Limiting

To ensure the Zener diode operates within safe current limits, a current-limiting series resistor may be introduced in the circuit. This resistor, positioned between the input voltage source and the anode of the Zener diode, plays a critical role in limiting the current to prevent damage due to excessive power dissipation.

Conclusion

Zener diodes are indispensable for voltage regulation, offering reliability and precision in electronic circuits. From the atomic interactions within the pn junction to the macroscopic applications in voltage stabilization, these components ensure that electronic devices operate within their designated voltage parameters. Their continued relevance in electronic design underscores their significant role as voltage regulators in an ever-evolving technological landscape.
