How to Convert PDF Schematics into Editable EDA Files Using AI
Share
Hardware engineers frequently receive reference designs, legacy project archives, or vendor application notes in flattened document format such as a PDF. Figuring out how to convert PDF schematic to editable PCB files historically required hours of manual retracing. Flattened documents lack netlists, component metadata, and pin assignments. However, modern machine learning tools offer a new approach. Executing an AI-assisted schematic conversion workflow accelerates the transition from static image to intelligent layout. The following guide outlines exactly how to rebuild flat documentation into functional electronic design automation (EDA) projects.
A standard PDF is a drawing made of flat vector graphics or rasterized pixels. Such a file format strips away all underlying electronic intelligence. Traditional Optical Character Recognition (OCR) tools recognize text and lines, but OCR algorithms fail to associate a text string like "R1" with a resistor symbol, a 10k resistance value, and a 0402 physical footprint. Manual retracing remains the most common solution. Engineers place components side by side with the PDF and manually redraw every net connection. Manual entry introduces transcription errors and consumes significant engineering time at scale.

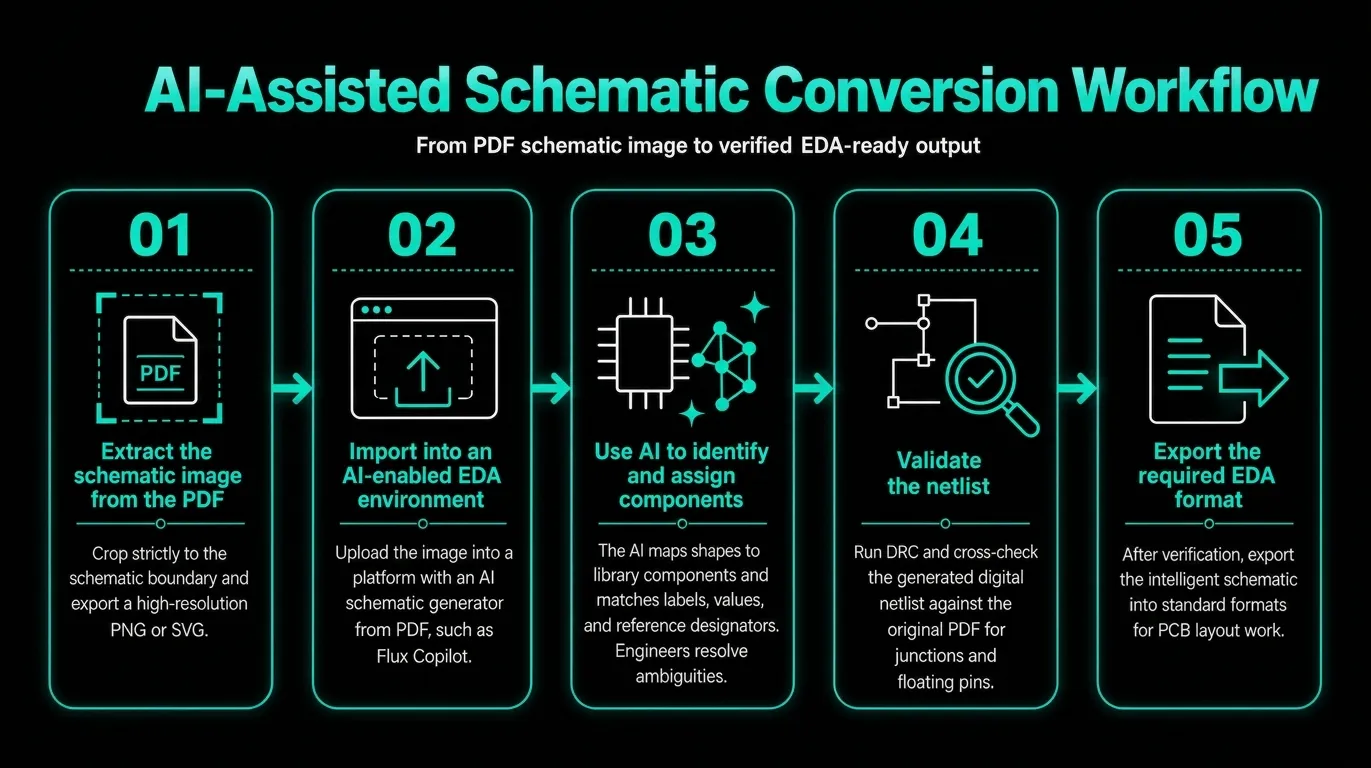

An effective hardware design AI copilot workflow eliminates the data entry process. Instead of manually drawing wires, engineers guide an AI model to interpret the visual data. Implementing an AI-assisted schematic conversion workflow requires a specific sequence of steps.
Artificial intelligence accelerates data entry but requires engineering oversight. When converting PDF schematic to editable PCB, AI models excel at identifying standard passive components, discrete semiconductors, and standard logic gate symbols. The AI-assisted schematic conversion workflow rapidly reconstructs repetitive sections like power supply filtering banks or LED arrays. However, engineers must perform manual corrections for specific edge cases. Custom integrated circuit symbols, proprietary connectors, and non-standard drawing conventions confuse vision models. Furthermore, multi-page schematics demand page-by-page processing because current AI tools struggle to trace off-page connectors automatically. Hierarchical blocks and complex data bus structures also require human validation to ensure accurate net assignments.
Hardware teams evaluating the AI-assisted schematic conversion workflow must consider time savings versus error rates. The following table provides typical estimates for rebuilding a 50-component reference design.
| Method | Typical Time for 50-Component Schematic | Error Rate |
|---|---|---|
| Manual retracing | 4 to 8 hours | Higher (transcription errors) |
| OCR-only tools | 2 to 4 hours | High (no semantic understanding) |
| AI copilot workflow | 30 to 60 minutes | Lower (with manual validation pass) |
Many engineers need to convert PDF schematic to editable PCB formats for final PCB layout routing. Cloud-based tools provide native export options that package the AI-generated schematic into standardized file structures. When exporting, engineers must verify net naming conventions. Different EDA tools handle local versus global net names differently. Additionally, the export process preserves footprint assignments attached during the AI identification phase. Explore Flux today to convert PDF schematic to editable PCB on a real reference design. Flux provides the intelligent tools necessary to translate static documentation into editable PCB projects quickly and accurately.
