Tantalum Capacitors Guide: Polarity, Derating & Risks

Quick Answer: A tantalum capacitor is a polarized electrolytic capacitor that uses tantalum metal as the anode. It provides high capacitance in a compact package, but it must be installed with the correct polarity and properly derated because reverse voltage, overvoltage, and excessive surge current can cause failure.

Key Takeaways

• Proper polarity verification during footprint design prevents destructive thermal events during circuit assembly.
• Selecting a capacitor technology requires comparing DC bias stability, equivalent series resistance (ESR), and leakage characteristics rather than merely matching nominal capacitance values.
• Applying manufacturer-specific voltage derating minimizes failure risks stemming from voltage transients and surge currents.

Designing reliable electronics requires carefully selecting energy storage components. A tantalum capacitor is such an example. The tantalum capacitor is a polarized electrolytic component that utilizes tantalum metal for the anode. Such a capacitor provides high capacitance within a tiny printed circuit board (PCB) footprint. Engineers frequently specify the component for power supply decoupling, energy buffering, and filtering applications. However, the component requires adherence to polarity and voltage ratings to function safely.

What Is a Tantalum Capacitor?

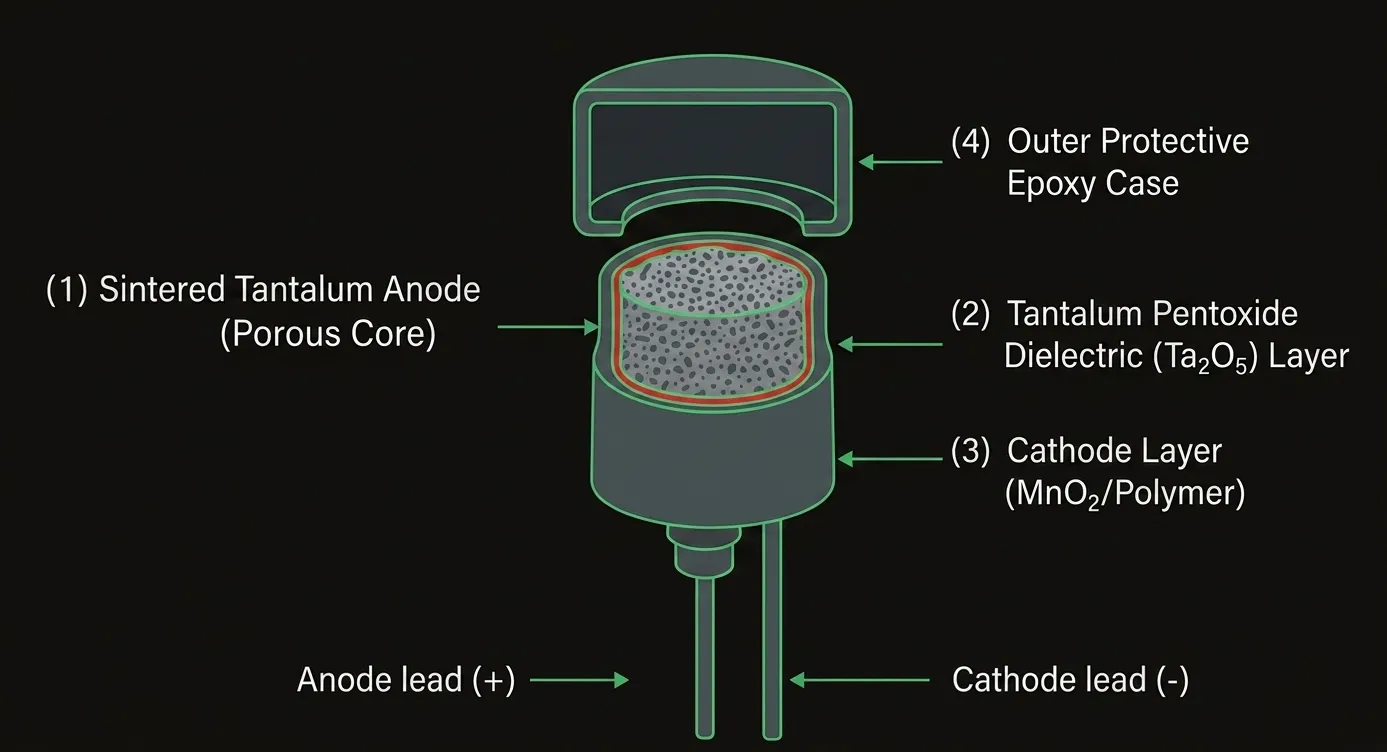

Tantalum capacitors are a type of electrolytic capacitor known for superior volumetric efficiency. Specifically, sintered tantalum powder forms the anode, creating a porous structure with a massive internal surface area. Consequently, the resulting structure yields remarkably high capacitance in a compact package.

The internal architecture dictates how the component performs electrically. The physical construction consists of three primary layers:

• Anode: Tantalum metal powder pressed and sintered into a solid pellet.
• Dielectric: A microscopically thin tantalum pentoxide layer that forms over the anode structure.
• Cathode: Either traditional manganese dioxide (MnO2) or a modern conductive polymer.

Advantageously, tantalum capacitors exhibit highly stable capacitance over time and temperature. Further, tantalum components maintain relatively low leakage in many applications. They are available in compact surface-mount packages, making them useful for space-constrained electronics. Notably, however, tantalum devices possess limitations; namely, the components hold a very limited tolerance for reverse voltage and overstress.

Tantalum Capacitor Polarity and Markings

Proper orientation is an absolute requirement for polarized capacitors. A tantalum capacitor must be installed with the correct polarity, meaning the positive terminal typically connects to the higher-potential side of the circuit. Reverse polarity causes excessive leakage current, localized heating, short circuits, or destructive failure.

Expected fault conditions from reverse polarity installation include:

• Rapid localized heating across the dielectric.
• Permanent short circuits.
• Potential thermal ignition, particularly in MnO2 variants.
• Complete destruction of the surrounding PCB traces.

Marking conventions vary widely between manufacturers and package types. Datasheets and package drawings should always be treated as the ultimate source of truth. Usually, a printed bar on a surface-mount tantalum package indicates the positive terminal.

Warning: Do not assume tantalum capacitors use the same marking convention as aluminum electrolytic capacitors. Surface-mount aluminum electrolytics typically mark the negative terminal with a bar. Such opposite conventions frequently cause assembly errors if verification is neglected.

Engineers must ensure polarity appears correctly across all design documents. Verifying orientation requires checking several specific CAD elements:

• Schematic symbols must clearly indicate the positive pin.
• PCB footprints require precise pin-1 mapping.
• Silkscreen markings and assembly drawings should leave no ambiguity for the manufacturing facility.

Tantalum vs Ceramic and Aluminum Electrolytic Capacitors

Hardware teams constantly evaluate different capacitor technologies for specific circuit requirements. Standard multilayer ceramic capacitors (MLCCs) are non-polarized, whereas tantalum components require strict orientation. Notably, Class II ceramic capacitors suffer from severe capacitance loss under DC bias. For example, a 10µF ceramic capacitor might only provide 3µF at the rated voltage. Conversely, tantalum capacitors do not exhibit DC bias capacitance loss.

Comparing tantalum with alternative technologies reveals several mechanical and chemical differences:

• Mechanical Flexure: Ceramic parts lack mechanical flexibility and can crack, while tantalum packages are slightly more resilient to board flexure.
• Lifespan: Aluminum electrolytics contain a wet electrolyte that eventually dries out. Tantalum devices use solid electrolytes, giving them a theoretically infinite lifespan under proper conditions.
• ESR: Ceramic capacitors offer extremely low ESR, whereas standard tantalum types present low-to-medium ESR values.

Tantalum vs. Ceramic vs. Aluminum Electrolytic Capacitor Comparison

Voltage Derating, Surge Current, and Failure Risks

Applying voltage beyond the component limits damages the thin tantalum pentoxide dielectric layer. Accordingly, understanding tantalum capacitor failure mechanisms prevents catastrophic board failures. Common failure causes include reverse polarity, overvoltage, voltage transients, and excessive inrush current.

Tantalum Capacitor Failure Causes and Prevention Strategies

In severe cases involving MnO2 cathode types, a short circuit generates significant internal heat. The MnO2 material can release oxygen, fueling a localized fire. Notably, however, polymer tantalum types mitigate such an ignition risk because the polymer does not release oxygen upon heating, leading to a much safer, benign failure mode.

Engineers follow specific manufacturer derating guidance to guarantee reliability. Best practices for operating voltage derating include:

• Standard MnO2 tantalum components often require a 50% voltage derating rule.
• Polymer variants typically necessitate only 10% to 20% derating.
• Reviewing startup and transient conditions prevents accidental overvoltage faults.

How to Select and Place a Tantalum Capacitor

Selecting the exact component involves analyzing both electrical requirements and physical constraints. A proper component selection workflow includes several analytical steps:

• Determine the required capacitance for the target circuit block.
• Identify the maximum operating voltage alongside any expected transient voltage spikes.
• Apply the manufacturer-recommended derating rules based on the chosen cathode technology.
• Review the ripple-current requirements and compare them against the maximum rated limits.
• Check the equivalent series resistance and leakage current specifications.

PCB layout procedures demand similarly careful attention. Designers use the manufacturer-recommended land pattern to ensure proper solder joint formation. Further, engineers mark polarity clearly on the silkscreen layer using standard identifiers.

Additional footprint layout considerations include:

• Keeping power connections short to minimize parasitic inductance.
• Leaving physical room around the component for optical inspection post-assembly.
• Verifying the symbol-to-footprint pin mapping perfectly aligns with the manufacturer markings.

How Modern PCB Tools Support Capacitor Selection

Navigating component discovery, electrical metadata, and sourcing logistics requires an organized workflow. Modern electronic design automation tools improve how hardware teams manage polarized components. Shared approved libraries prevent engineers from accidentally using unverified, potentially dangerous footprints.

Platforms like Flux offer built-in features that simplify hardware design:

• Component discovery tools filter parts by technology type, voltage, and capacitance.
• Symbol and footprint validation checks ensure pin mappings align correctly.
• Collaborative component selection enables peer reviews of part choices before manufacturing.

Storing voltage, capacitance, technology type, and polarity metadata directly in the library prevents derating oversight. Flux helps teams keep capacitor specifications, symbols, footprints, sourcing data, and design context connected, making polarized components easier to review before fabrication.

Ready to build safer, more reliable hardware? Using a tantalum capacitor effectively requires strict attention to component metadata, polarity verification, and accurate footprint mapping. Flux simplifies the entire component selection process through shared libraries, real-time collaboration, and automatic design validation. Start designing the next schematic in Flux today to ensure power delivery networks are accurate, fully verified, and ready for manufacturing.

FAQs

What is a tantalum capacitor?

A tantalum capacitor is a polarized electrolytic component that utilizes tantalum metal as the anode and tantalum pentoxide as the dielectric. Such construction provides high capacitance density.

Are tantalum capacitors polarized?

Yes, the components require strict orientation. The positive terminal must connect to the higher voltage potential.

How is tantalum capacitor polarity identified?

Surface-mount tantalum packages typically feature a printed bar or stripe on the positive terminal end. However, consulting the manufacturer datasheet remains necessary to confirm exact marking conventions.

What happens if a tantalum capacitor is installed backward?

Reverse installation damages the dielectric layer. Such damage leads to excessive leakage current, localized heating, short circuits, and potentially destructive thermal events.

Why do tantalum capacitors fail?

Failures occur due to reverse polarity, overvoltage, excessive surge currents, or elevated temperatures. Insufficient voltage derating remains a primary cause of dielectric breakdown.

What is the difference between tantalum and ceramic capacitors?

Tantalum components are polarized and maintain steady capacitance under a DC bias. Ceramic components are non-polarized, possess lower ESR, but lose significant capacitance when subjected to a DC voltage.

Do tantalum capacitors need voltage derating?

Yes, operating safely requires voltage derating. Standard solid tantalum types often require 50% derating, whereas polymer types generally require 10% to 20% derating depending on specific manufacturer guidelines.

When should a tantalum capacitor be used?

The component should be specified when a design requires high capacitance, long-term stability, and no DC bias degradation within a compact surface-mount footprint.
