Capacitor Symbols Explained: Types, Polarity, and Schematic Use
Share
The capacitor is a two-terminal electronic component that stores electrical energy in an electric field. When reading electronic schematic symbols, engineers should identify different capacitor types to understand the underlying circuit behavior.
A specific schematic symbol reflects the given capacitor type, electrical polarity, international drafting standard, and specific CAD library conventions. Understanding the differences in symbols ensures hardware teams select the appropriate physical components. This guide provides a visual reference to help hardware designers understand common capacitor symbols and verify component placement before starting a PCB layout.
The basic capacitor schematic symbol illustrates the internal physics of the component. The drawing shows two parallel lines separated by a small gap, indicating two conductive plates separated by an insulating dielectric material. Terminals connect to each plate, forming the two connection points for the circuit.
Some capacitors are polarized, meaning their positive and negative terminals must be connected in the correct orientation. In an electrolytic capacitor, for example, a thin oxide layer formed on the anode acts as the dielectric, while the electrolyte forms part of the cathode structure. Reversing the applied voltage can damage this dielectric layer, causing increased leakage current, heating, and potentially capacitor failure.
Different regions and engineering standards utilize slightly different graphical conventions. The IEEE standard (common in North America) uses two parallel horizontal or vertical lines. The IEC standard (common in Europe) sometimes depicts capacitors as narrow open rectangles.
Alongside the graphic, a standard capacitor symbol includes important text annotations:

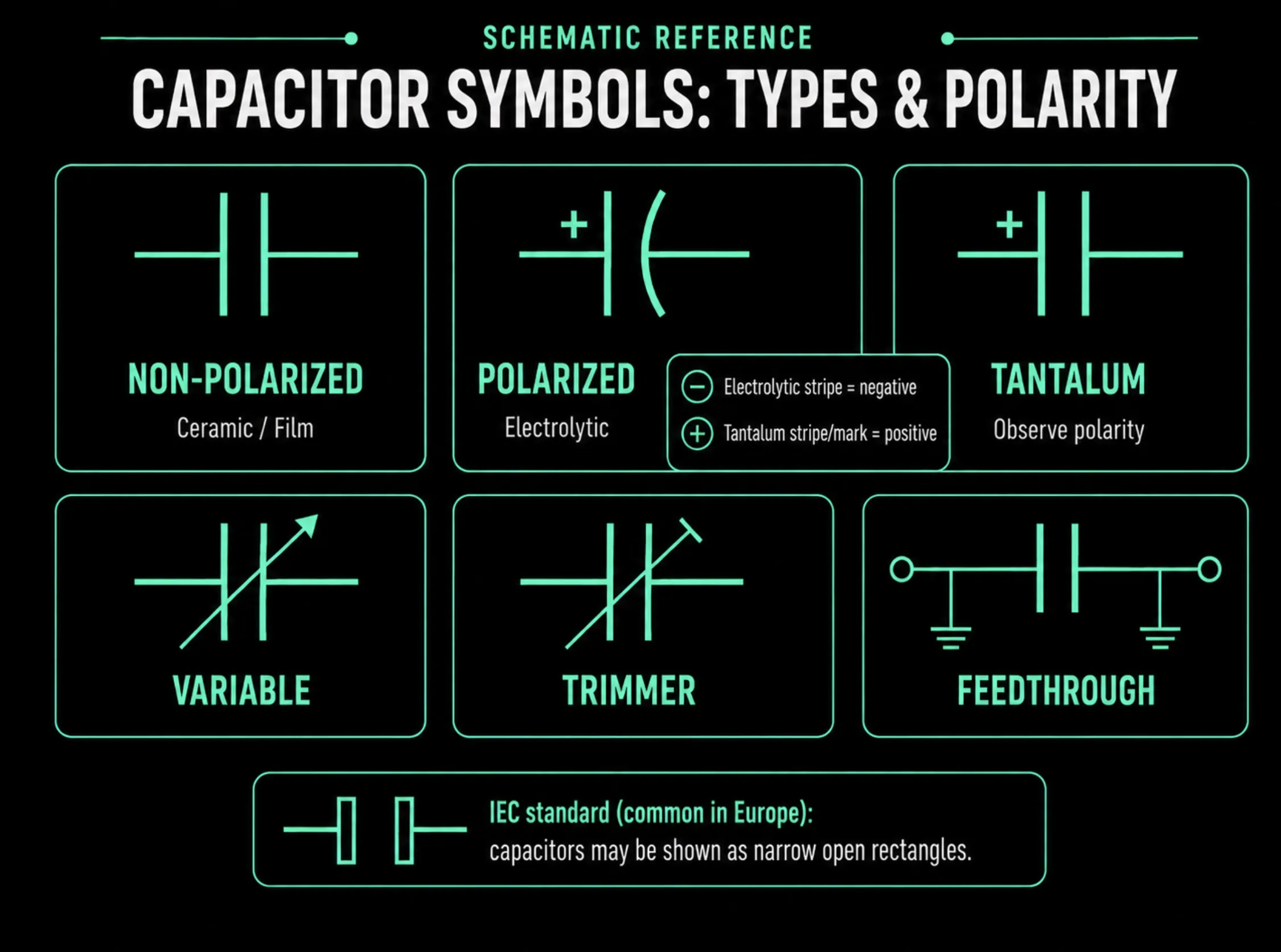

| Capacitor Type | Visual Identifying Features | Polarity Indicator |
|---|---|---|
| Generic / Non-Polarized | Two equal parallel lines or an open rectangle | None |
| Polarized (Standard) | One straight line and one curved line | Plus sign (+) on the straight line |
| Polarized (European/IEC) | Two open rectangular boxes, one filled solid | Plus sign (+) on the unfilled box |
| Variable | Two parallel lines with a diagonal arrow crossing through | None |
| Trimmer | Two parallel lines with a diagonal line ending in a flat T-shape | None |
Selecting the correct component requires distinguishing between polarized and non-polarized devices. Installing a polarized capacitor backward leads to dielectric breakdown, short circuits, and physical component rupture.
A non-polarized capacitor symbol indicates the component can connect to the circuit in any direction. Standard AC circuits and high-frequency data lines require non-polarized parts. A ceramic capacitor symbol and a film capacitor symbol fall into this category. The schematic drawing uses two identical straight, parallel lines. Hardware designers frequently use multilayer ceramic capacitors for high-speed decoupling and filtering where orientation does not matter.
A polarized capacitor symbol explicitly dictates the required voltage orientation. The positive terminal (anode) must always connect to a higher voltage than the negative terminal (cathode).
An electrolytic capacitor symbol typically displays one straight line representing the positive terminal and one curved line representing the negative terminal. Modern CAD libraries also place a plus sign (+) immediately adjacent to the positive pin. Engineers use aluminum electrolytic parts for bulk power supply smoothing due to high capacitance values.
Similarly, tantalum capacitors require strict polarity observance. While some EDA libraries use the standard curved-line drawing for tantalums, other libraries draw a standard parallel-line symbol and add a plus sign next to the positive terminal.
| Capacitor Technology | Polarity Type | Typical Schematic Symbol | Common Applications |
|---|---|---|---|
| Ceramic | Non-Polarized | Two straight parallel lines | High-frequency filtering, signal coupling |
| Film | Non-Polarized | Two straight parallel lines | Audio circuits, AC power filtering |
| Aluminum Electrolytic | Polarized | One straight line, one curved line (+) | Bulk power supply decoupling |
| Tantalum | Polarized | Parallel lines with a plus sign (+) | Space-constrained power regulation |
Specific RF applications and power filtering circuits require specialized capacitors featuring unique schematic drawings.
A variable capacitor symbol includes a diagonal arrow crossing entirely through the parallel plates. The arrow indicates that the user can tune the capacitance value manually. Engineers use variable capacitors in radio tuning circuits and impedance-matching networks.
Trimmer capacitors act as miniature variable capacitors set once during factory calibration. The drawing features a diagonal line passing through the plates, terminating in a flat perpendicular line (forming a T-shape).
Feedthrough components filter high-frequency noise entering a shielded enclosure. The symbol depicts a straight line passing continuously through the parallel plates, indicating the signal passes through the center of the capacitor while the outer body connects to the chassis ground.
Power supplies connected to AC mains utilize safety-rated capacitors designed to fail safely during power surges. The schematic base drawing matches a standard non-polarized capacitor. Safety classifications (X1, X2, Y1, Y2) appear as text annotations or library metadata rather than acting as a universally unique base symbol.
Translating a polarized capacitor symbol into physical PCB assembly requires understanding physical package markings. Physical marking conventions differ drastically between capacitor technologies. Engineers cannot assume all components use identical markings.
Through-hole electrolytic components include a prominent stripe printed down the side of the cylindrical casing. The stripe contains minus signs (-) and points directly to the negative lead (cathode). Additionally, the positive lead (anode) is physically longer than the negative lead on a brand-new component.
Surface-mount tantalum packages utilize a completely inverted marking convention compared to aluminum electrolytics. A solid printed stripe on one end of a surface-mount tantalum capacitor indicates the positive terminal.
The physical PCB footprint must guide the assembly technician. Designers mark the positive pad using a plus sign (+) on the silkscreen layer. For through-hole footprints, designers frequently use a square copper pad to indicate the positive terminal while using a round pad for the negative terminal.
Assumptions based only on component shape or stripe direction result in assembly errors. As a result, engineers should always verify physical polarity by checking the manufacturer datasheet.
A common engineering mistake involves confusing a generic schematic symbol with a manufacturer part number or a physical footprint. A schematic symbol defines electrical connectivity. Notably it does not contain physical geometry. When selecting decoupling capacitors or timing components, designers must link the generic symbol to a specific physical part.
Before finalizing a schematic, hardware teams must verify specific metadata attached to the symbol:
Cloud-based EDA platforms like Flux streamline the component selection process. Engineers utilizing AI-assisted circuit design tools can identify correct symbols, verify attached datasheets, and assign accurate physical footprints in one unified workflow. Try Flux to find the correct capacitor symbol, verify component data, and assign the corresponding PCB footprint within the same hardware design environment.
The standard drawing features two parallel lines separated by a gap, visualizing two conductive plates separated by a dielectric material.
The drawing displays one straight line representing the positive terminal and one curved line representing the negative terminal, frequently accompanied by a plus sign.
Non-polarized components use two identical straight lines indicating orientation does not matter. Polarized components use a curved line or a plus sign indicating strict voltage orientation requirements.
The drawing typically consists of a straight line, a curved line, and a positive polarity indicator.
The drawing consists of two straight, parallel lines indicating a non-polarized component.
Polarity appears as a plus sign (+) next to the positive terminal or as a distinctly curved line representing the negative terminal.
No. A symbol defines electrical connections for a schematic drawing, whereas a footprint defines the physical copper pads required for manufacturing and assembly.
