In hardware development, rushed circuit design, inadequate validation, and skipping prototype iterations are common pitfalls that lead to wasted time, money, and materials. Creating electronics is a process that requires validation through each stage. Two of the most critical stages in this process are prototyping and fabrication.

While these terms are sometimes used interchangeably by beginners, they represent entirely different mindsets, goals, and manufacturing processes. Understanding the difference between a PCB prototype and a full-scale production run is essential for any hardware engineer, startup founder, or product developer looking to bring a device to market successfully. This guide breaks down the definitions, trade-offs, and decision points to help you choose the right path for your project.

Key Takeaways

  • Prototyping validates, fabrication scales: Low-volume prototypes test schematic logic and physical fit, while fabrication focuses on high-volume consistency and lower per-unit costs.
  • Balance speed with scale: Choosing between PCB prototyping vs fabrication requires weighing rapid turnaround and design flexibility against rigorous automated testing and economies of scale.
  • Don't rush the transition: Move to mass production only after a final prototype is thoroughly tested and verified for manufacturability (DFM) to prevent costly batch failures.
  • Modern tools accelerate iteration: Cloud-native platforms like Flux streamline the PCB development process by catching errors early with real-time design rule checks.

What Is PCB Prototyping?

PCB prototyping is the practice of manufacturing a small number of circuit boards (usually between 1 and 10) to test a new or unverified design. The primary goal of a PCB prototype is validation. Engineers use prototypes to prove that their schematic logic works in the real world, to test the physical fit of the board within an enclosure, and to debug any signal integrity or power issues.

Because the focus is on testing and rapid iteration rather than perfection or unit cost, prototypes are often manufactured using looser tolerances, cheaper materials, or standardized "pool" panels at the fab house to speed up delivery times. It is completely normal and expected for a prototype board to require manual modifications, such as cutting traces with a knife or soldering "jumper wires" to fix mistakes.

Design for Prototyping

A prototype should be designed as a testing tool, not just a pre-production board. The goal is to make validation, debugging, and iteration as easy as possible.

Include clearly labeled test points for key signals like power rails, communication lines, and clocks so they can be measured quickly. Add jumper pads or zero-ohm resistor footprints to allow signal rerouting, isolation, or quick fixes without a redesign. Ensure there is enough space for probes so tools can access critical nodes without difficulty.

What Is PCB Fabrication For Production?

In the context of this comparison, PCB fabrication refers to the full-scale, production-ready manufacturing of a finalized circuit board design.

Once a design has been rigorously tested through multiple prototype iterations and bugs have been resolved, it is ready for fabrication. The goals here shift dramatically: the focus is no longer on testing, but on scalability, cost-per-unit reduction, and uncompromising quality and consistency.

Production fabrication involves setting up dedicated manufacturing lines, creating custom solder stencils, and running automated optical inspection (AOI) and electrical testing on every single board. The boards produced in this stage are the ones that will ultimately end up in the hands of the consumer.

Key Differences Between Prototyping and Fabrication

Understanding PCB prototyping vs fabrication requires looking at the practical trade-offs between the two processes. Manufacturers optimize their equipment differently depending on which service you request.

PCB Prototyping vs Production Fabrication

Feature PCB Prototyping Production Fabrication
Primary Goal Testing, debugging, and proof-of-concept. Scalability, reliability, and end-user deployment.
Volume Low (Typically 1 to 20 boards). High (Hundreds to millions of boards).
Speed (Turnaround Time) Fast (Often 24 hours to 5 days). Slower setup (Typically 2 to 4 weeks or more).
Cost Per Board High (Due to setup costs spread over few units). Low (Economies of scale drastically reduce unit price).
Design Changes Expected and frequent. Highly discouraged; requires expensive re-tooling (ECOs).
Testing & Quality Control Basic electrical testing; visual inspection. Rigorous automated testing (AOI, X-Ray, flying probe) on every unit.
Materials & Tolerances Often uses standard materials (FR4) and relaxed tolerances for speed. Uses specific, requested materials and strict adherence to IPC Class 2 or 3 standards.

When to Use PCB Prototyping vs Fabrication

Deciding which PCB manufacturing method to use depends entirely on where you are in the product development lifecycle.

When to Use PCB Prototyping:

  • Early Development: You have finished a schematic and initial layout and need to verify that the core logic works.
  • Testing and Validation: You need to hand physical boards to software engineers to develop firmware, or to mechanical engineers to check if the board fits the 3D-printed enclosure.
  • Iterative Design: You are optimizing a circuit (e.g., trying to improve the range of a wireless antenna) and need to test several different layout variations quickly.

When to Use PCB Fabrication (Production):

  • Production Readiness: The design has been thoroughly vetted, firmware is stable, and no further hardware changes are anticipated.
  • Scaling a Startup: You have secured funding or pre-orders and need to manufacture your first batch of 1,000 units for customers.
  • Mature Products: You are building an existing, proven legacy design that requires regular inventory replenishment.

Common Mistakes in PCB Prototyping

The prototype to production process is rarely a straight line. Many hardware teams fall into common traps that derail their timelines and budgets:

  • Rushing to Production: The most expensive mistake an engineer can make is skipping a final prototype validation run and ordering 1,000 production boards, only to discover a reversed footprint or a short circuit.
  • Skipping Testing Phases: Ordering a prototype but failing to test it thoroughly under real-world conditions (temperature, vibration) before signing off on production.
  • Ignoring Manufacturability: Designing a prototype using extremely tight tolerances or exotic materials that a rapid-prototyping fab house can build, but a high-volume production facility cannot replicate cost-effectively at scale.

How Design Decisions Impact Production

The transition from prototype to production is where the concept of Design for Manufacturability (DFM) becomes critical.

During the prototyping phase, a designer might ignore a minor DFM warning (like placing a component slightly too close to the board edge) because a technician can manually assemble a few boards with care. However, if that same design is pushed to automated production fabrication, that minor error will cause pick-and-place machines to crash or boards to crack during depanelization, ruining the entire batch.

Validating your design using design rule checks (DRC), panelization reviews, and assembly clearances against strict production manufacturing rules during the final prototype stage is essential for a smooth transition. This can be done by running fabrication and assembly rule checks in your ECAD tool, reviewing panel layouts with your manufacturer, and confirming component spacing, fiducials, and tooling holes meet automated assembly requirements.

How Modern PCB Tools Improve Prototyping Workflows

The traditional PCB development process often involves isolated engineers working on desktop software, emailing design files back and forth, and waiting weeks for prototype boards to arrive, only to find an easily preventable error.

Modern, cloud-native platforms like Flux are fundamentally changing how teams approach PCB iteration design. Flux provides a collaborative environment where electrical engineers, firmware developers, and mechanical designers can review the same schematic and layout simultaneously in real-time.

By utilizing built-in, real-time design rule checks, Flux helps teams catch errors before the first prototype is ever ordered. This immediate feedback loop drastically accelerates design iteration cycles, reducing the number of physical prototypes required to achieve a working board. When the design is finally verified, Flux generates the manufacturing files needed to transition confidently from a rapid prototype to full-scale fabrication.

FAQs

What is PCB prototyping?
PCB prototyping is the process of manufacturing a small batch of circuit boards to test, validate, and debug a new electronic design before committing to large-scale production.
What is the difference between prototyping and fabrication?
Prototyping focuses on speed, testing, and iteration with low volumes (1-10 boards) and higher per-unit costs. Fabrication (production) focuses on scalability, strict quality control, and low per-unit costs for high volumes (1,000+ boards).
When should you move from prototype to production?
You should move to production fabrication only after the prototype has been rigorously tested, all hardware bugs are resolved, the firmware is stable, and the design has been verified for manufacturability (DFM) at scale.
Is PCB prototyping expensive?
While the total cost of a prototype run is low, the cost per board is significantly higher than in production because setup and tooling costs are divided among only a few units.
How many prototypes are typically needed?
Most hardware projects require at least two to three prototype iterations. The first is for basic functional testing, the second for refining the layout and fixing bugs, and a final "pre-production" prototype to verify the exact manufacturing files and components that will be used in mass production.

Now that you understand the distinction between PCB prototyping and fabrication, it's time to put that knowledge into practice. Whether you're validating your first schematic or preparing for a production run of thousands of boards, having the right tools makes all the difference. Flux's cloud-native platform gives you real-time design rule checking, collaborative review, and seamless manufacturing file generation, all in your browser. Ready to accelerate your hardware development workflow? Sign up for Flux today and start building with confidence.

Profile avatar of the blog author

Yaneev Hacohen

Yaneev Cohen is an electrical engineer concentrating in analog circuitry and medical devices. He has a Master's and Bachelor's in Electrical Engineering and has previously worked for Cadence and Synopsys's technical content departments.

Go 10x faster from idea to PCB
Work with Flux like an engineering intern—automating the grunt work, learning your standards, explaining its decisions, and checking in for feedback at key moments.
Illustration of sub-layout. Several groups of parts and traces hover above a layout.
Design PCBs with AI
Introducing a new way to work: Give Flux a job and it plans, explains, and executes workflows inside a full browser-based eCAD you can edit anytime.
Screenshot of the Flux app showing a PCB in 3D mode with collaborative cursors, a comment thread pinned on the canvas, and live pricing and availability for a part on the board.
Design PCBs with AI
Introducing a new way to work: Give Flux a job and it plans, explains, and executes workflows inside a full browser-based eCAD you can edit anytime.
Screenshot of the Flux app showing a PCB in 3D mode with collaborative cursors, a comment thread pinned on the canvas, and live pricing and availability for a part on the board.
Design PCBs with AI
Introducing a new way to work: Give Flux a job and it plans, explains, and executes workflows inside a full browser-based eCAD you can edit anytime.
Screenshot of the Flux app showing a PCB in 3D mode with collaborative cursors, a comment thread pinned on the canvas, and live pricing and availability for a part on the board.

Related Content

Blind Vias, Buried Vias, and Microvias: A Complete Guide to PCB Via Types

Blind Vias, Buried Vias, and Microvias: A Complete Guide to PCB Via Types

A practical guide to the four main PCB via types — through-hole, blind, buried, and microvia — covering how each is fabricated, their cost and signal-integrity trade-offs, and when to use them based on layer count, BGA pitch, and routing density.

Profile avatar of Yaneev Hacohen
Yaneev Hacohen
|April 21, 2026

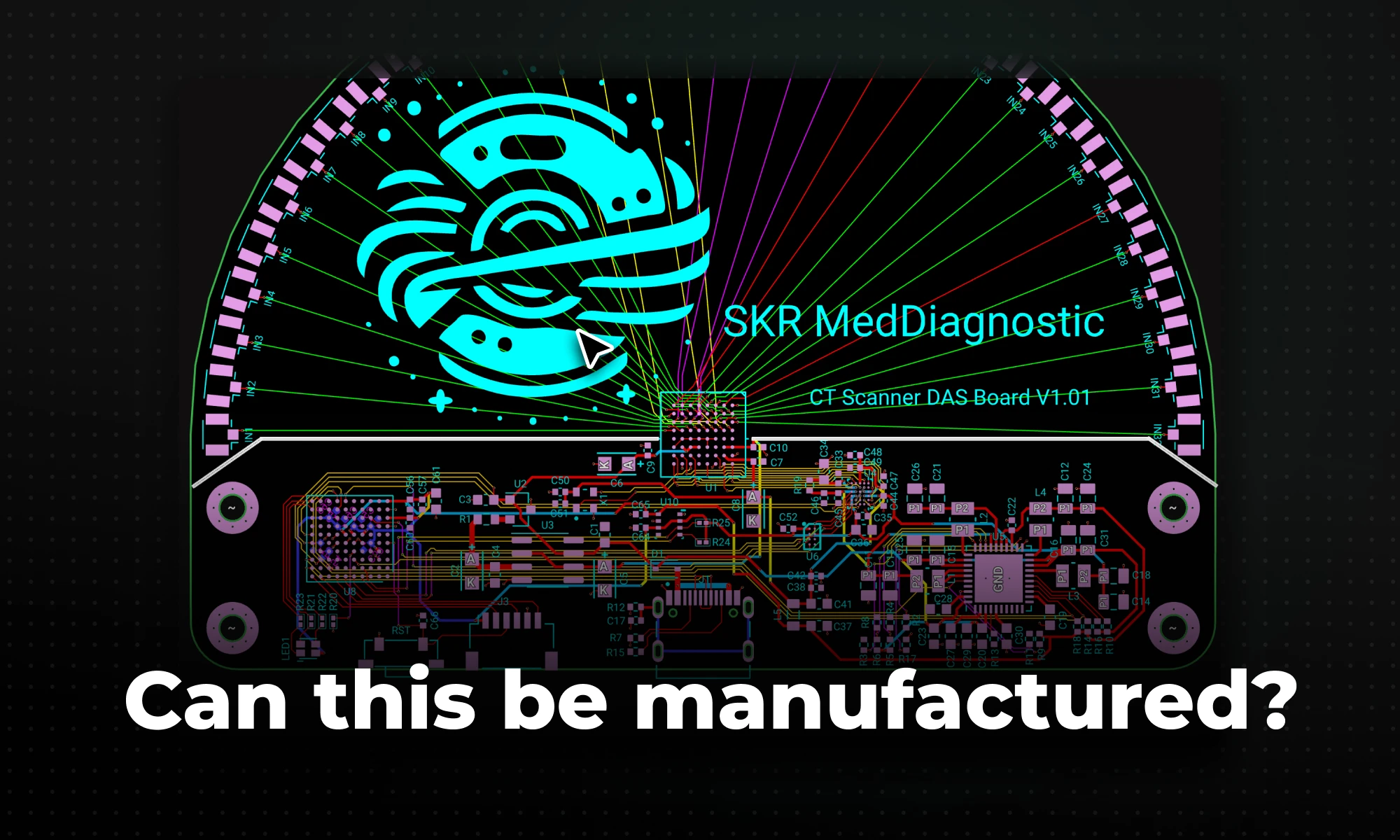

PCB Design for Manufacturability (DFM): Rules and Best Practices

PCB Design for Manufacturability (DFM): Rules and Best Practices

Learn PCB design for manufacturability (DFM) guidelines, rules, and common issues to ensure your circuit boards can be reliably produced.

Profile avatar of Yaneev Hacohen
Yaneev Hacohen
|April 16, 2026

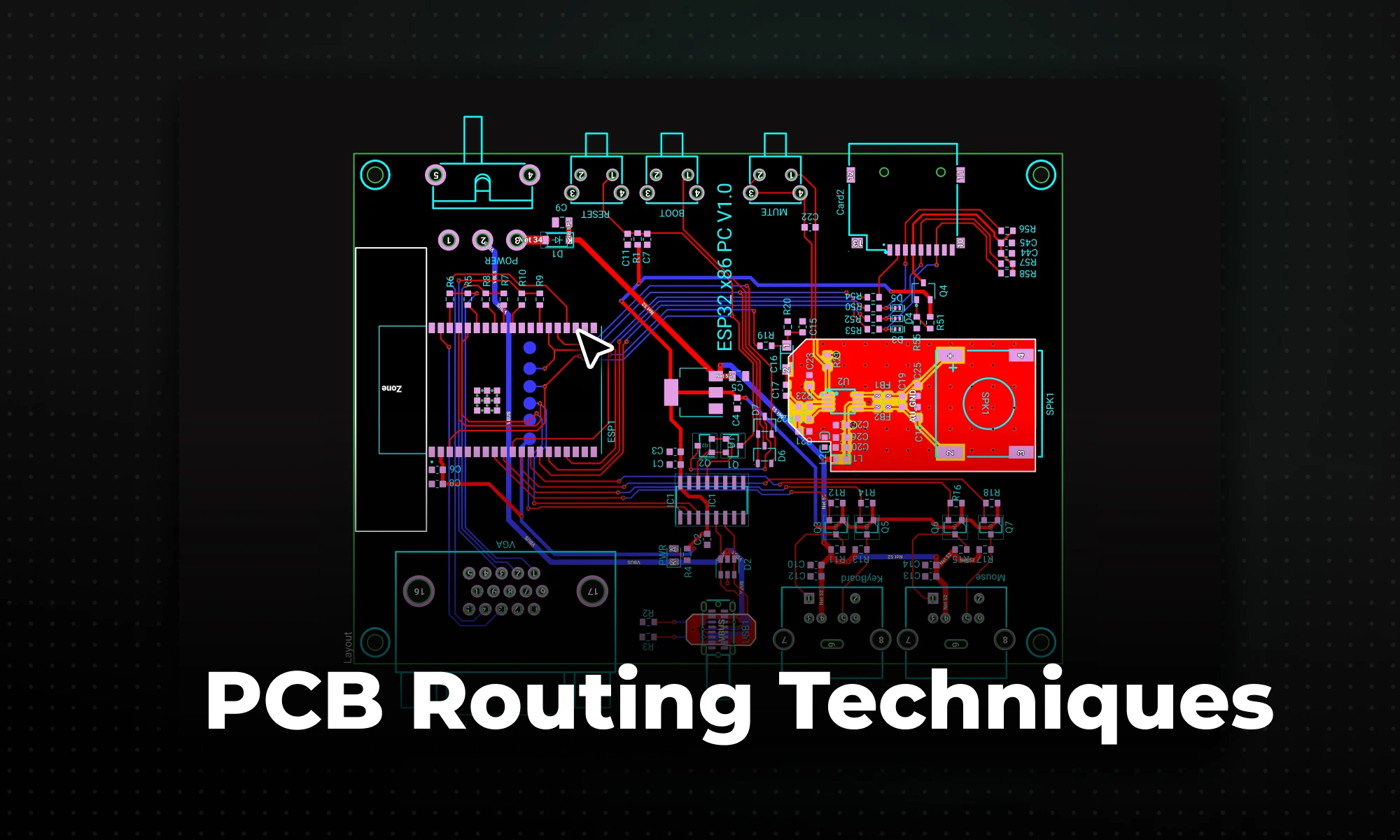

Best PCB Routing Techniques for Clean Circuit Board Layouts

Best PCB Routing Techniques for Clean Circuit Board Layouts

Learn the best PCB routing techniques for clean circuit board layouts, including trace routing tips, differential pair routing, and layout best practices.

Profile avatar of Yaneev Hacohen
Yaneev Hacohen
|April 16, 2026

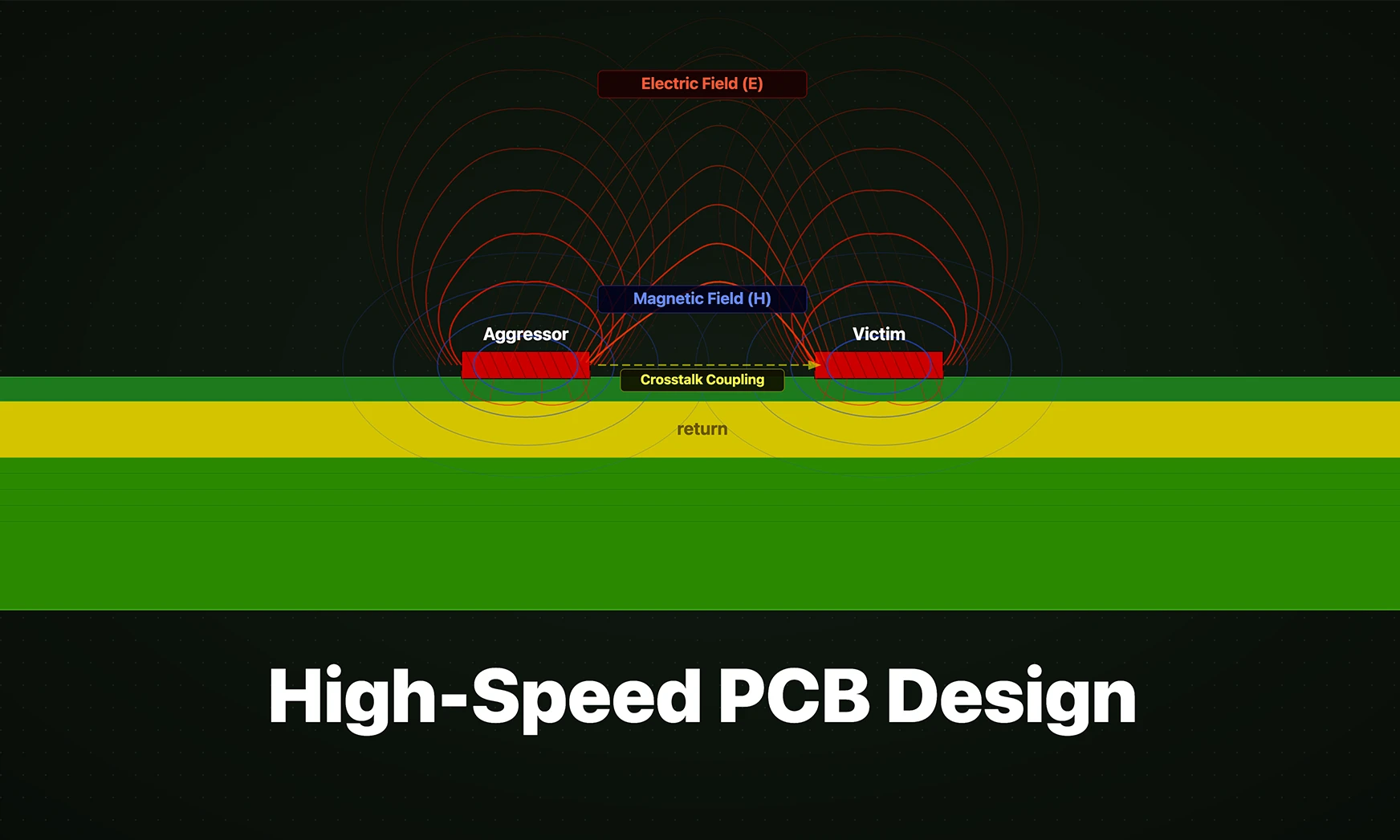

High-Speed PCB Design: Layout Rules, Signal Integrity, and Routing Best Practices

High-Speed PCB Design: Layout Rules, Signal Integrity, and Routing Best Practices

Whether you're migrating from popular EDA applications or starting fresh, mastering high speed PCB design has never been more intuitive. Flux enables teams to design, simulate, and route with real-time AI assistance, so you can spin your next high-speed board with total confidence.

Profile avatar of Yaneev Hacohen
Yaneev Hacohen
|March 26, 2026

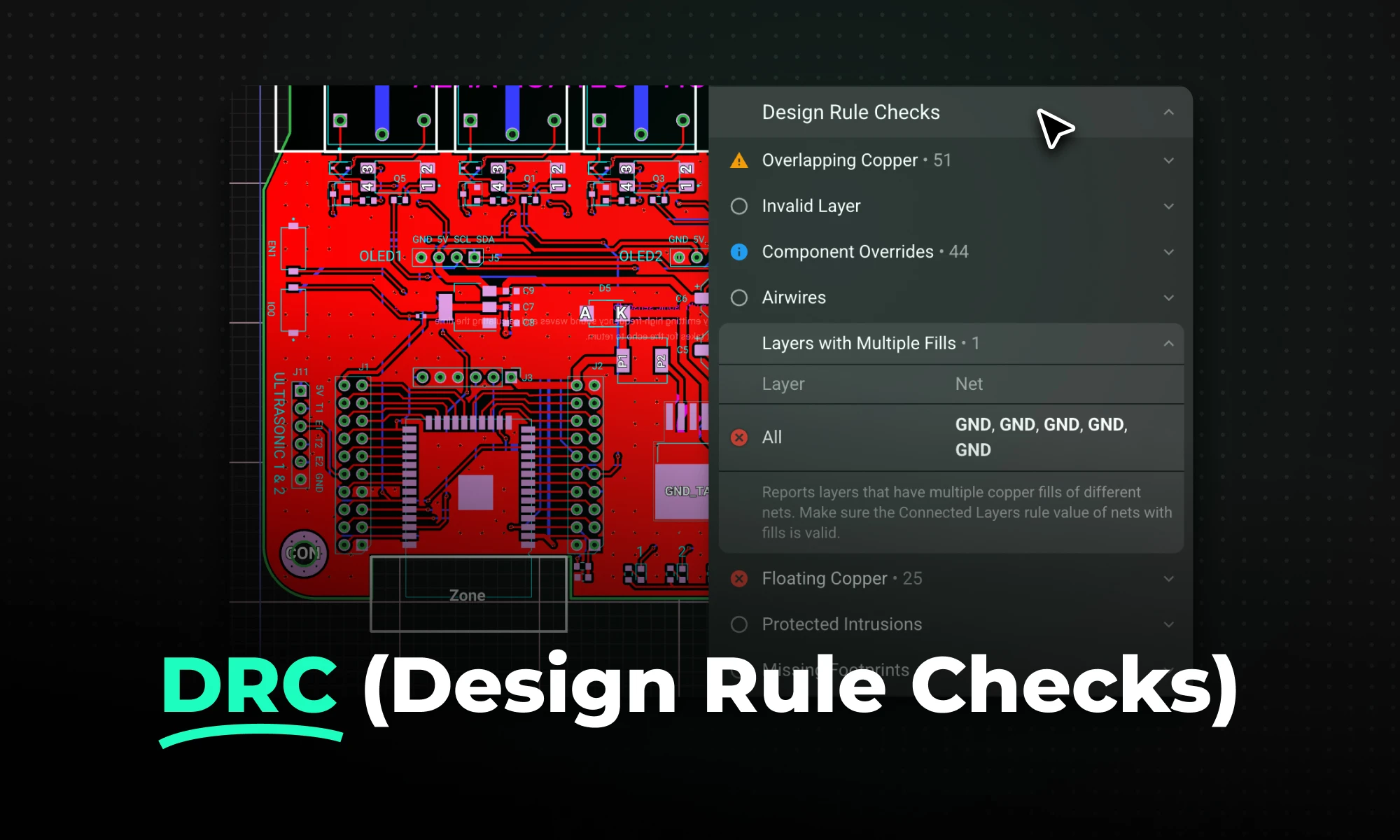

Design Rule Checking (DRC) in PCB Design: Real-Time vs Batch, Rules, and Common Failures

Design Rule Checking (DRC) in PCB Design: Real-Time vs Batch, Rules, and Common Failures

DRC is an automated process that checks your PCB layout against manufacturing and electrical constraints, catching errors like trace spacing and drill sizes before fabrication. Modern tools run this in real-time during design, while older ones batch-check at the end, often producing overwhelming error lists.

Profile avatar of Yaneev Hacohen
Yaneev Hacohen
|March 26, 2026

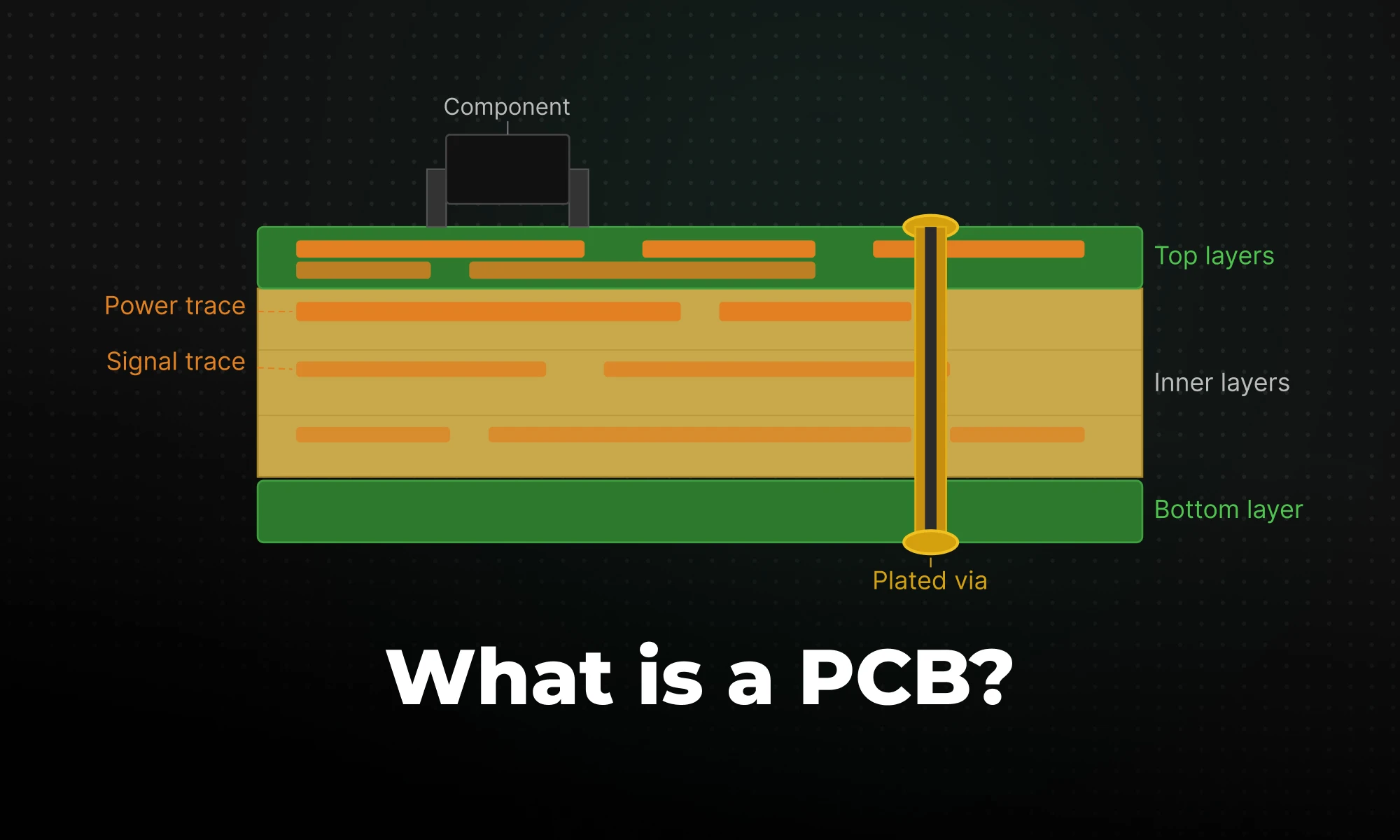

What Is a PCB? A Beginner's Guide to Printed Circuit Board Design

What Is a PCB? A Beginner's Guide to Printed Circuit Board Design

Whether you are exploring “What is a PCB?” for the first time or moving into advanced hardware engineering, modern tools make the process easier than ever. With Flux's AI-assisted platform, you can skip the steep learning curve of popular ECAD applications and design collaboratively directly in your browser. Once your board is routed and ready for fabrication, Flux's built-in supply chain features connect you directly with worldwide distributors to source parts instantly. Sign up for free today and start building!

Profile avatar of Yaneev Hacohen
Yaneev Hacohen
|March 21, 2026

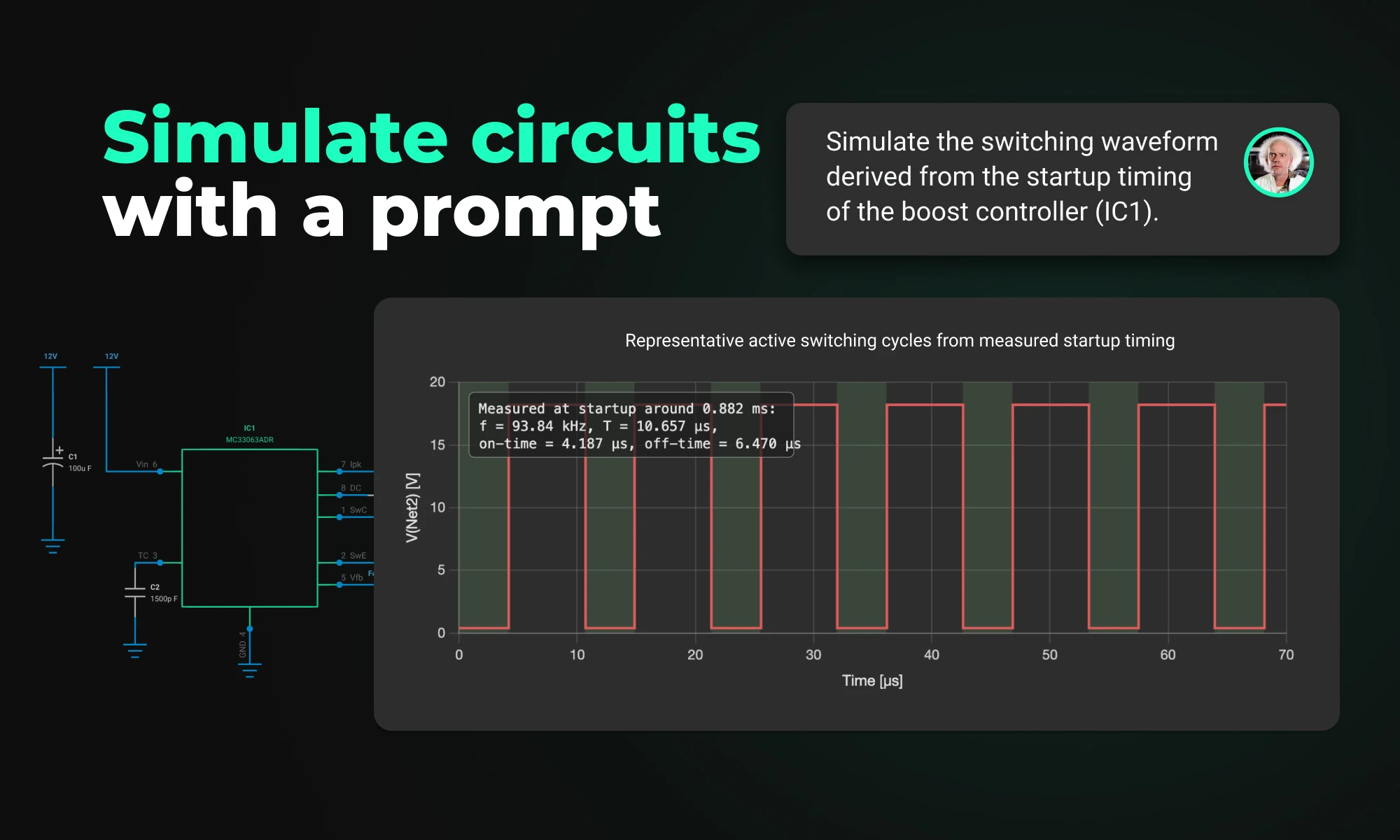

Simulate Circuits with a Prompt

Simulate Circuits with a Prompt

Flux brings circuit simulation to wherever you are in the design process. Start from a prompt when you have no schematic, or let Flux analyze your existing design automatically.

Profile avatar of Lance Cassidy
Lance Cassidy
|March 20, 2026

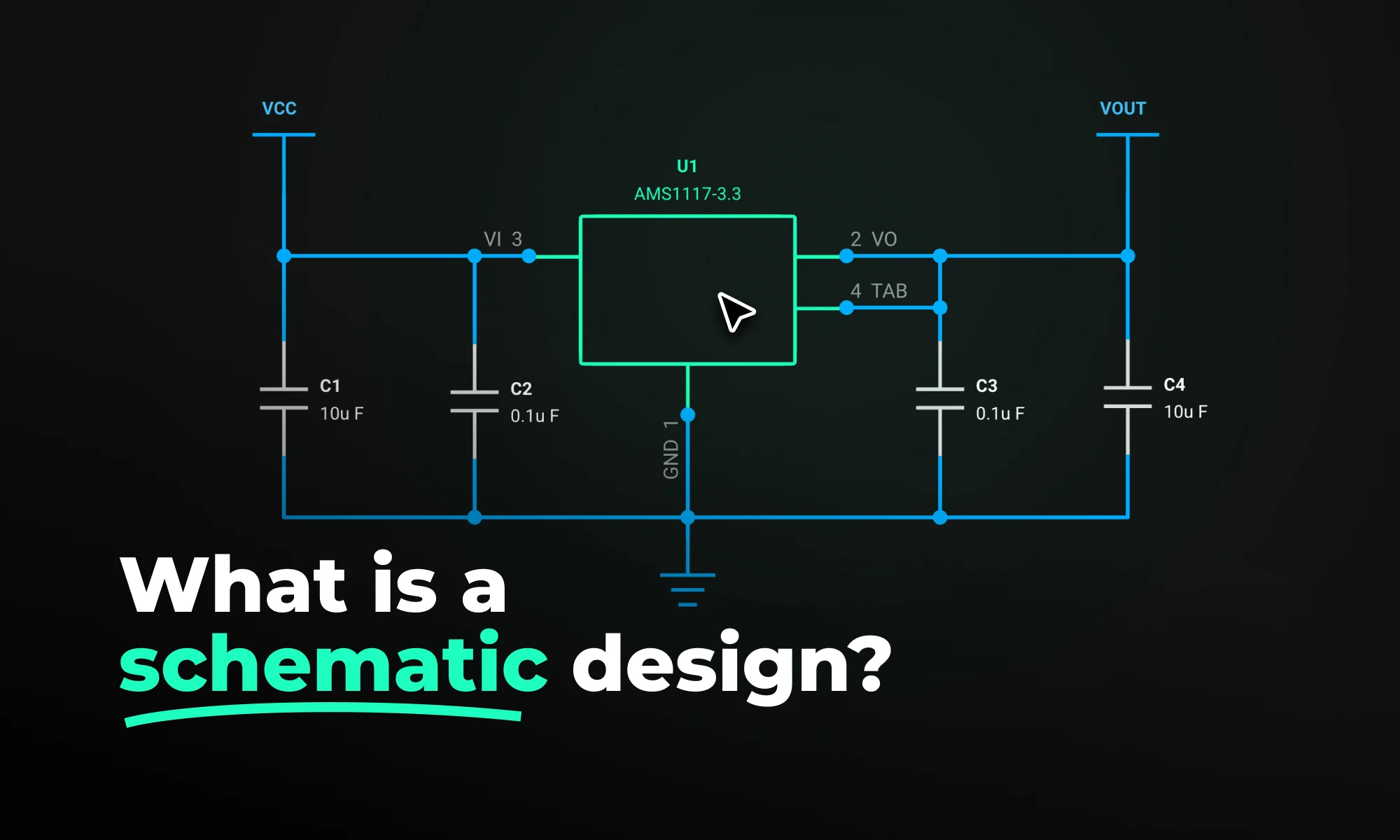

What is Schematic Design? All You Need to Know
