Below is a clear, design-focused explanation of this project, what it represents in Flux, how the signals are organized, and how you can build on it effectively.
Project overview and purpose

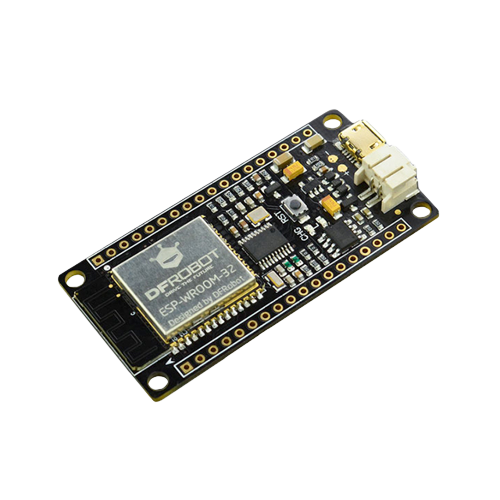

What this is: A schematic shell exposing the I/O and power rails of the DFRobot FireBeetle ESP32 board DFR0478 as a set of labeled terminals. It is intended to be the anchor in a larger design (carriers, shields, or sensor/actuator add-ons).
Board intent (from datasheet):
Working voltage: 3.3 V
Input voltage: 3.3 V to 5 V
Power options: USB or 3.7 V external LiPo; “both USB and external DC can charge the Lipo battery directly”
This schematic exposes the FireBeetle’s connections purely as terminals (no nets have been defined yet). You can think of it as a breakout/reference symbol to hook up your external circuitry.
You’ll connect your peripherals to these terminals and then add nets and any needed passives on your schematic.
Core interfaces exposed in the schematic
Power rails:
VCC (board input rail; USB ~5 V or ~3.7 V from LiPo as noted in datasheet), 3V3 (regulated logic rail), GND.
Feed VCC from USB (~5 V) or a 3.7 V LiPo (per datasheet: “supports USB charging” and “both USB and external DC can charge the Lipo battery directly”), and use 3V3 as the regulated logic rail. Tie grounds to GND.
Datasheet details to consider in your system design:
Working voltage: 3.3 V
Input voltage: 3.3 V to 5 V
Average working current: 80 mA
Max discharge current (battery path): 600 mA
Max charge current: 500 mA
Programming and development
The board supports “one-key downloading” and works with Arduino, ESP-IDF, and MicroPython (datasheet). This allows straightforward firmware iteration over USB.
Audio/I2S or clocked interfaces can use the labeled clock/data lines as appropriate to your firmware configuration.
Key technologies and dependencies
Wireless (datasheet): Wi‑Fi 802.11 b/g/n; Bluetooth v4.2 BR/EDR/BLE.
Development environments (datasheet): Arduino, ESP-IDF, MicroPython; “one-key downloading” convenience.
Timing references (datasheet): On-board 40 MHz and 32.768 kHz crystals.
Design choices, trade-offs, and optimizations
Dual power input (USB vs LiPo): Flexibility for mobile or tethered applications. Trade-off is managing battery charging currents (datasheet lists maximum charge current 500 mA) and ensuring your system’s peak draw ≤ the “support maximum discharge current” (600 mA) spec.
3.3 V logic rail: Clear logic-level boundary for peripherals; requires level translation when interfacing to 5 V-only devices.
Low-power capabilities: The datasheet cites deep-sleep current of 10 µA; leveraging deep sleep yields excellent battery life, at the cost of wake-up latency and need for careful peripheral state management.
Compact footprint: At 24 × 53 mm, the board integrates radio + charging + MCU in a small area; thermal and connector real estate on add-on boards should be planned accordingly.
Current project status (in Flux) and challenges
Schematic status: No nets have been defined yet; all pins are currently standalone terminals for DFR0478.
Next tasks you’ll likely tackle:
Define power nets and distribution (decide whether your add-on uses VCC directly or the regulated 3V3).
Wire your peripherals to the appropriate terminals and name nets for clarity.
Add required passives for bus integrity (see below).
Use the canonical Ground symbol for ground connections (best practice to improve readability and copper fills).
Performance considerations (system-level, based on datasheet)
Power budget: Size upstream supplies and traces for at least the datasheet’s average current (80 mA) plus peripheral loads; if running from battery, be mindful of the board’s “support maximum discharge current” (600 mA) and “support maximum charge current” (500 mA).
RF co-existence: The board integrates Wi‑Fi/BLE; keep noisy high-current switching or long-antenna cables isolated on your carrier where possible, and avoid routing aggressive clocks immediately adjacent to antenna keep-out on the physical board (applies during layout of your add-on).
Real-world applications this supports well
Battery-powered IoT nodes with Wi‑Fi/BLE.
Sensor/actuator control with I2C/SPI/UART add-ons.
Audio streaming/processing demos via I2S as supported in your firmware stack.
Rapid prototyping in Arduino/MicroPython with ultra-low-power standby modes.
Areas for improvement and future enhancements
Power decoupling on your add-ons:
Per best-practice guidance, include a parallel combination of a 100nF Capacitor, a 1uF Capacitor, and a 10uF Capacitor near each device’s supply pins to cover both high- and low-frequency transients.
When selecting capacitors, ensure they operate at no more than 60% of their maximum rated voltage.
I2C bus robustness:
Add pull-ups (e.g., 4.7k Resistor) to SDA/IO21 and SCL/IO22 on the 3.3 V rail (if not already present in your stack).
ESD/Transient protection for field wiring:
Consider a TVS Diode on external connectors tied to VCC or 3V3 as appropriate and on long I/O lines; pick ratings consistent with your environment and rail.
Clear net naming and documentation:
Name nets to match firmware roles (e.g., “IMU_SDA”, “IMU_SCL”, “FLASH_CS”) and tag voltage domains.
Schematic readability:
Replace the terminal-based ground with the canonical Ground symbol throughout for clarity and better PCB copper handling.
Scalability ideas
Standardized headers: Add consistent pin headers for I2C, SPI, UART, power breakout to scale to multiple peripherals easily.
Modular add-ons: Split sensors/actuators into reusable modules; maintain consistent net names and interface pin orders.
Power domain planning: If peripherals draw bursts beyond the FireBeetle’s discharge support, consider local regulators and bulk storage on add-on boards sized to your transient load.
Design and implementation steps you can follow next
Power architecture:
Decide to use 3V3 for logic and whether any peripheral needs raw VCC. Add decoupling near each device (100 nF + 1 µF + 10 µF).
