Gerber Files Explained: PCB Layers, Formats & Export
Share
As electronic computer-aided design (ECAD) software replaced manual drafting tables in the 1970s and 1980s, fabricators needed a universal vector format to drive automated photoplotters. A photoplotter manufacturer known as Gerber Scientific developed a vector graphic format that quickly became the worldwide standard for hardware manufacturing outputs.
Today, even with direct imaging laser systems, a Gerber file remains the universal bridge between digital ECAD design software and physical circuit board fabrication. Understanding how these files determine physical board layers, how they differ from native CAD project files, and how to verify a complete PCB manufacturing package prevents fabrication delays and costly board re-spins.
A Gerber file is a standardized 2D vector image format used by Computer-Aided Manufacturing (CAM) systems to direct photoplotters, which generate high-precision artwork films for PCB fabrication, and direct-imaging lasers, which project circuit patterns directly onto photoresist-coated copper without requiring film. Rather than treating a circuit board as a complex 3D object, the Gerber file format breaks a PCB design down into individual 2D image slices representing specific physical layers of the board.

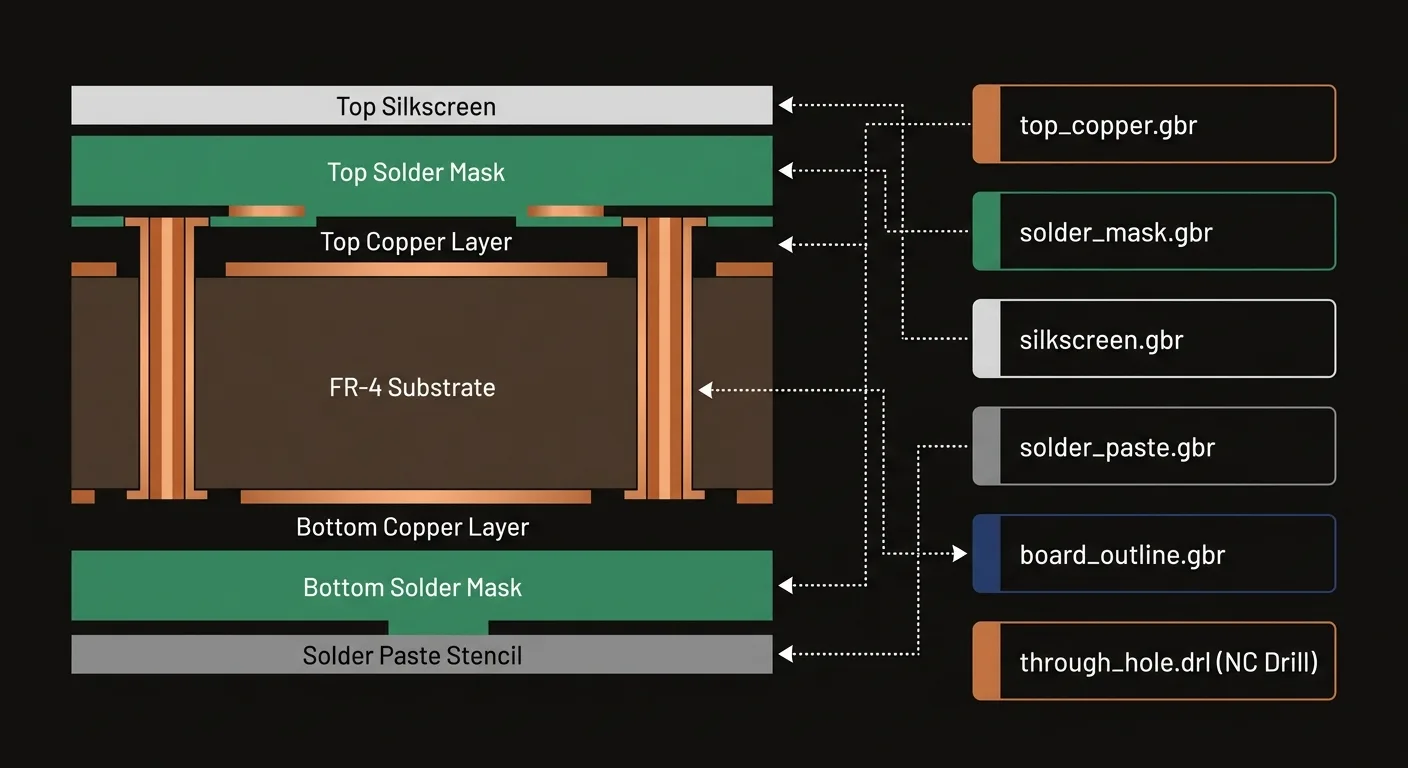

A complete board layout cannot exist within a single file. Instead, the export process generates a collection of PCB fabrication files, where each file defines a specific layer:
Understanding what a Gerber file represents requires understanding the difference between manufacturing outputs from design-source data. A Gerber file contains pure vector geometry: lines, flashes, polygons, and arc coordinates, without electrical functionalities. It does not contain schematic logic, component footprints, netlists, or constraint rules.
Generating a complete set of PCB manufacturing files requires exporting vector data for every physical layer alongside mechanical drilling instructions.
| Layer or File Type | What It Defines | Typical Contents |
|---|---|---|
| Copper Layers | Conductive pathways and pours | Signal traces, power planes, SMT pads, thru-hole pads |
| Solder Mask | Insulation openings | Areas where protective epoxy mask is omitted to expose copper pads |
| Silkscreen | Visual labels and markings | Reference designators, pin 1 indicators, logos, warning text |
| Solder Paste | Stencil aperture boundaries | Openings for SMT paste deposition during assembly |
| Board Outline | Mechanical geometry | Outer board perimeter, internal slots, routed cutouts |
Engineering teams frequently confuse source design files (e.g. PCB files) with manufacturing outputs (e.g., gerber files). Understanding gerber files vs PCB files helps designers send correct deliverables to fabrication houses.
| Characteristic | Gerber Files | Drill Files | Native PCB File |
|---|---|---|---|
| Primary Purpose | Manufacturing layer geometry | CNC hole drilling data | Editable layout and schematic source |
| Format Type | 2D Vector (RS-274X / Gerber X2) | NC Drill (Excellon) | Proprietary database / CAD format |
| Intelligence | Geometric shapes and traces | Tool size and X/Y coordinates | Full netlists, components, and DRC rules |
| Compatibility | Universal across all fabricators | Universal across CNC drill systems | Software-specific (requires specific ECAD tool) |
Executing a PCB Gerber export requires verifying design constraints before generating output files.
Fabrication delays frequently occur due to file packaging errors. Avoiding common pitfalls ensures a smooth transition from CAD design to physical board delivery:
Disconnected design software creates friction during manufacturing handoffs, where schematic updates, board layouts, and exported files exist as separate desktop artifacts.
Modern cloud-native platforms like Flux streamline manufacturing handoffs by maintaining connected schematic, layout, and output data in a single workspace. Built-in design rule checks and centralized revision control ensure that exported files accurately reflect the active design state. By providing a shared source of truth, engineering teams and fabricators can conduct collaborative design reviews directly in the browser, reducing revision errors before releasing a PCB manufacturing package. Try Flux now to simplify PCB manufacturing handoffs and ensure production files are always up to date.
A Gerber file is a 2D vector graphic file describing an individual physical layer of a printed circuit board for manufacturing.
Fabrication requires a complete PCB manufacturing package containing gerber files for all copper, solder mask, silkscreen, and mechanical layers, combined with NC drill files and fabrication specifications.
No. Drill data is generated separately as NC drill files (typically in Excellon format) specifying exact hole coordinates and tool diameters.
A PCB file is an editable CAD design database containing netlists, active components, and layout rules. A Gerber file is a flattened 2D vector manufacturing file containing pure layer geometry without circuit intelligence.
Opening and inspecting gerber files requires utilizing a standalone 2D Gerber viewer software or web tool.
Designers load the complete ZIP archive into an independent Gerber viewer to check layer alignment, verify solder mask clearances, inspect silkscreen legibility, and confirm drill hole registration.
Yes. While formats like ODB++ and IPC-2581 exist, the Gerber file format (specifically Extended RS-274X and Gerber X2) remains the global standard for PCB fabrication.
