What Is PCBA? PCB vs PCBA and Assembly Explained
Share
Early electronic systems relied on point-to-point wiring, which became difficult to manufacture and prone to errors as designs grew more complex. Printed circuit boards (PCBs) replaced these manual connections with standardized copper traces on an insulating substrate. However, a bare PCB only provides the circuit foundation; components must be mounted and soldered during the printed circuit board assembly (PCBA) process to create a functional electronic device. Understanding the distinction between bare boards and assembled hardware, along with the PCB assembly process, helps engineering teams prepare accurate manufacturing deliverables and avoid costly production delays.
The difference is that a PCB (Printed Circuit Board) is an unpopulated circuit board with no components installed, while a PCBA (Printed Circuit Board Assembly) is a populated board that contains all necessary electronic components, including resistors, ICs, and capacitors, making it fully functional.
PCB fabrication and assembly represent separate industrial processes.
| Attribute | PCB | PCBA |
|---|---|---|
| Definition | Bare, unpopulated circuit board | Fully assembled circuit board |
| Components Installed | None | Active ICs, passives, connectors |
| Primary Process | Fabrication (chemical/mechanical) | Assembly (placement/soldering) |
| Functional State | Passive interconnect substrate | Functional electronic circuit module |

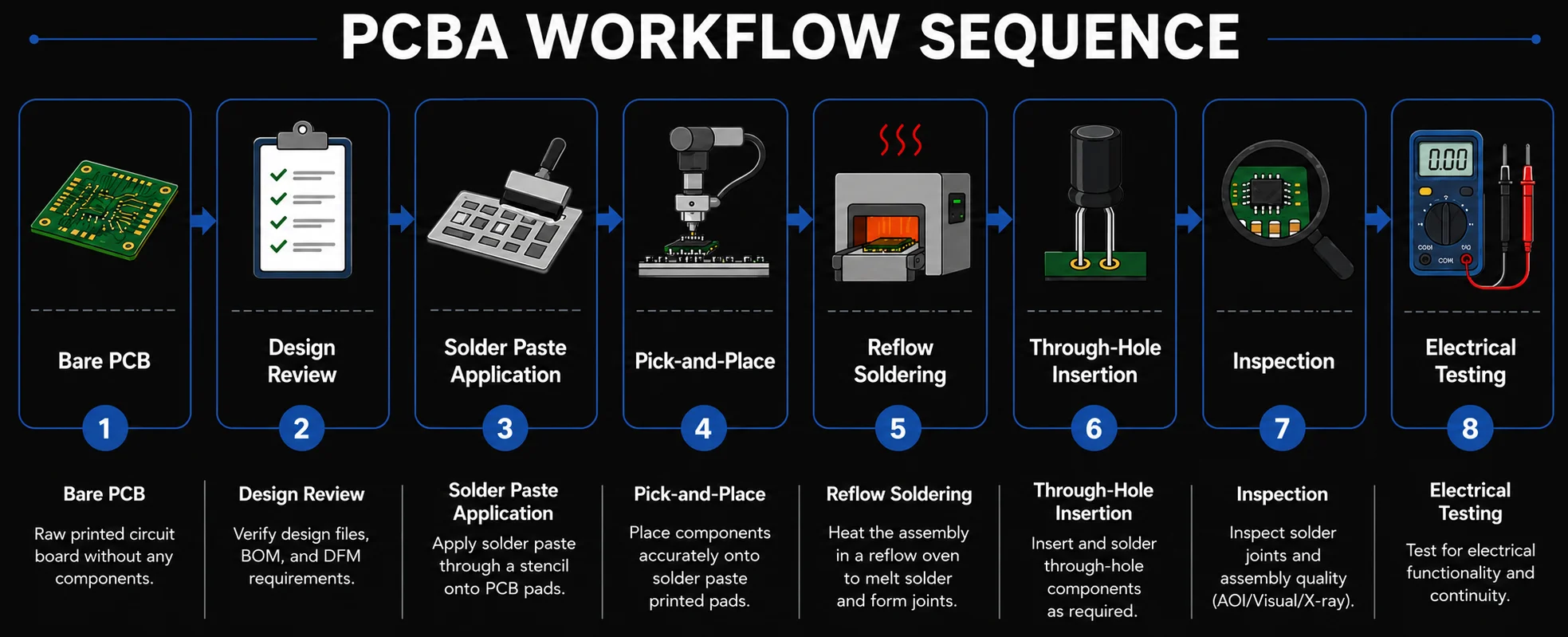

The PCBA process converts a bare board and a kit of loose electronic components into an operating module. While specific steps vary depending on component package selection, board layer count, and production volume, standard PCBA manufacturing follows a structured workflow.
Modern circuit boards typically utilize two primary component mounting methodologies: Surface-Mount Technology (SMT) and Through-Hole Technology (THT). Most complex boards combine both methods to optimize component density and mechanical stability.
In SMT assembly, component leads or termination pads sit directly on top of copper pads on the board surface. Eliminating the need for drilled lead holes allows components to be placed on both top and bottom layers. Such an approach enables high component density and high-speed automated placement, making SMT the primary choice for resistors, capacitors, microcontrollers, and memory chips.
In through-hole assembly, component leads extend through drilled holes in the PCB and solder to copper pads on the opposite side. While THT placement requires more manual intervention or specialized insertion equipment, the mechanical anchor provided by plated through-holes offers superior resistance to mechanical stress. Consequently, THT remains common for power connectors, switches, heavy inductors, and large electrolytic capacitors.
For a detailed comparison of pin density and manufacturing trade-offs, review our guide on SMT vs Through-Hole Technology.
| Attribute | SMT Assembly | Through-Hole Assembly |
|---|---|---|
| Mounting Method | Component leads sit directly on surface copper pads | Component leads pass through drilled board holes |
| Typical Components | Chip passives (0402, 0603), QFNs, BGAs | Heavy connectors, power relays, transformers |
| Primary Advantage | High component density; automated dual-sided placement | Superior mechanical joint strength for heavy parts |
| Primary Limitation | Reduced mechanical strength for high-stress interfaces | Requires drilled holes; limits routing density |
Preparing a project for handoff requires providing a complete package of PCB assembly files. Incomplete or unverified documentation leads to engineering queries, component placement errors, and assembly delays.
| File Type | Purpose | Key Information Included |
|---|---|---|
| Bill of Materials (BOM) | Lists every physical component required for assembly | Manufacturer part numbers, values, footprints, designators |
| Pick-and-Place (Centroid) | Guides automated placement machinery | X/Y coordinates, board layer (top/bottom), pin 1 rotation |
| Assembly Drawings | Provides visual placement guidance for technicians | Component outlines, reference designators, polarity marks |
| Gerber / ODB++ Files | Defines physical board layers and solder mask openings | Copper traces, solder paste stencil layer, silkscreen |
| Schematic Diagram | Gives electrical context for troubleshooting | Circuit logic, net names, power rail topologies |
Assembly defects often originate during the schematic capture and PCB layout phases rather than on the manufacturing floor. Identifying potential failure modes early prevents expensive board re-spins.
| Assembly Defect | Root Cause | Prevention Strategy |
|---|---|---|
| Tombstoning | Thermal imbalance across passive component pads | Apply thermal relief traces when connecting pads to copper fills. |
| Solder Bridging | Excessive solder paste or insufficient mask dams | Verify solder mask clearance and stencil aperture dimensions. |
| Reversed Component | Ambiguous pin 1 marking on silkscreen or footprint | Include clear orientation dots and notch indicators in CAD models. |
| BOM / Layout Mismatch | Unsynchronized component libraries and netlists | Maintain centralized component databases and automated library checks. |
| Inaccessible Test Points | Placing test pads too close to tall components | Maintain clear spatial courtyards around ICT test points. |
For example, if an engineer updates a resistor value in the layout without updating the BOM, the manufacturer will assemble the outdated part number. Similarly, if a polarized tantalum capacitor lacks clear cathode markings on the silkscreen, assembly technicians risk soldering the component in reverse, leading to component failure during initial power-up.
Errors during manufacturing handoffs frequently stem from disconnected design tools, where schematics, PCB layouts, and BOMs exist as independent desktop files.
Modern cloud-native platforms like Flux eliminate such discrepancies by keeping schematic logic, physical layout geometry, component data, and revision history connected in a single workspace. Real-time design rule checking (DRC) and unified library management ensure that component footprints match real-world supplier specifications. Furthermore, built-in collaboration features allow engineering teams and contract manufacturers to conduct joint design reviews directly within the browser, catching potential assembly issues before generating production deliverables. Start designing in Flux today to ensure your PCBA process is accurate, fully verified, and ready for manufacturing.
PCBA stands for printed circuit board assembly.
A PCB is an unpopulated circuit board containing copper traces and substrate layers. A PCBA is a completed assembled circuit board featuring soldered active and passive electronic components.
The PCBA process includes design review, solder paste stencil printing, automated pick-and-place component mounting, reflow or wave soldering, optical inspection, and electrical testing.
Manufacturing handoffs require Gerber or ODB++ fabrication files, a Bill of Materials (BOM), a pick-and-place centroid file, assembly drawings, and schematic diagrams.
Prototype PCB assembly is the low-volume production of early board iterations used by engineers to validate circuit operation, verify mechanical fit, and test firmware prior to full-scale manufacturing.
SMT mounts components directly onto surface copper pads for high density and automation. Through-hole assembly inserts component leads through drilled holes for enhanced mechanical joint strength.
Testing methods include Automated Optical Inspection (AOI), X-ray inspection for hidden BGA joints, In-Circuit Testing (ICT) via bed-of-nails fixtures, and functional testing under operational power.
