Hardware Team Collaboration: ECAD, MCAD & Firmware Workflows

As hardware products grow more complex, hardware team collaboration between electrical, mechanical, and firmware engineers determines whether a project ships on schedule or stalls under conflicting revisions. A single connector change can ripple across a schematic, an enclosure model, and a firmware driver at once. Without a shared process, each discipline finds out too late.

This guide lays out the framework for collaborative hardware development: design reviews, documentation, revision control, and engineering change management that keeps electrical, mechanical, and firmware teams aligned from concept through production.

Key Takeaways

• Hardware disciplines depend on constant information exchange, not isolated handoffs.
• A documented engineering change management process prevents teams from building against conflicting design versions.
• Involving every discipline early and maintaining one source of truth cuts down on late-stage redesigns.

Why Hardware Development Requires Cross-Functional Collaboration

A hardware product is several designs that have to fit together exactly. Electrical, mechanical, firmware, manufacturing, and product teams each work on a piece of the same system, and a decision in one discipline immediately constrains the others.

Each group brings a different set of priorities to the table:

Hardware Discipline Roles and Dependencies

None of these groups can work in isolation for long. A mechanical engineer who resizes an enclosure without checking board clearance can strand a connector, and a firmware developer who assumes a pin assignment before the schematic is locked can spend a week rewriting a driver. As component count, interfaces, and stakeholders grow, so does the cost of a missed handoff.

Communication becomes the bottleneck long before component selection or layout does. Teams that treat design as a linear handoff, where mechanical waits for electrical and firmware waits for both, tend to discover integration problems only after boards come back from fabrication. Teams that build in regular checkpoints catch the same problems while they are still a five-minute fix in a shared file.

Building a Collaborative Hardware Development Workflow

Collaborative design does not happen by accident. It comes from a workflow that gives every discipline a predictable way to raise questions, flag conflicts, and sign off on decisions before they get expensive to reverse.

Plan Design Reviews Around Development Milestones

A design review is a scheduled checkpoint where the team examines a design against requirements before moving to the next stage. Effective design collaboration ties reviews to concrete milestones instead of arbitrary calendar dates:

Each review milestone gives mechanical, firmware, and manufacturing stakeholders a defined point to weigh in, rather than leaving them to discover problems downstream.

Define Ownership and Documentation for Every Design Decision

Every design decision needs an owner and a record. Engineering documentation should capture not just what a team decided, but the reasoning behind it. A future engineer working from a schematic alone has no way to know why a resistor value or connector choice was picked over an alternative.

A clear engineering workflow assigns:

• A decision owner for each subsystem, so questions have a single point of contact.
• A documentation standard that records rationale alongside outcomes, not just final values.
• A review cadence that keeps documentation current instead of reconstructed after the fact.

Practice Concurrent Engineering and Maintain One Source of Truth

Concurrent engineering means electrical, mechanical, and firmware work happen in parallel instead of in sequence, with regular sync points to catch conflicts early. Such parallel work only holds together if every discipline pulls from the same underlying data, one authoritative schematic, board file, and requirements set that every team references instead of a local copy. Without such a shared reference, mechanical teams can end up designing around an old connector position after the electrical team has already moved it.

Manage Engineering Changes Without Losing Control

Design changes are a standard part of hardware development. Component shortages, test results, cost pressure, and regulatory feedback all force revisions after a design has already been reviewed. What separates a controlled process from a chaotic one is whether those changes get captured, reviewed, and communicated.

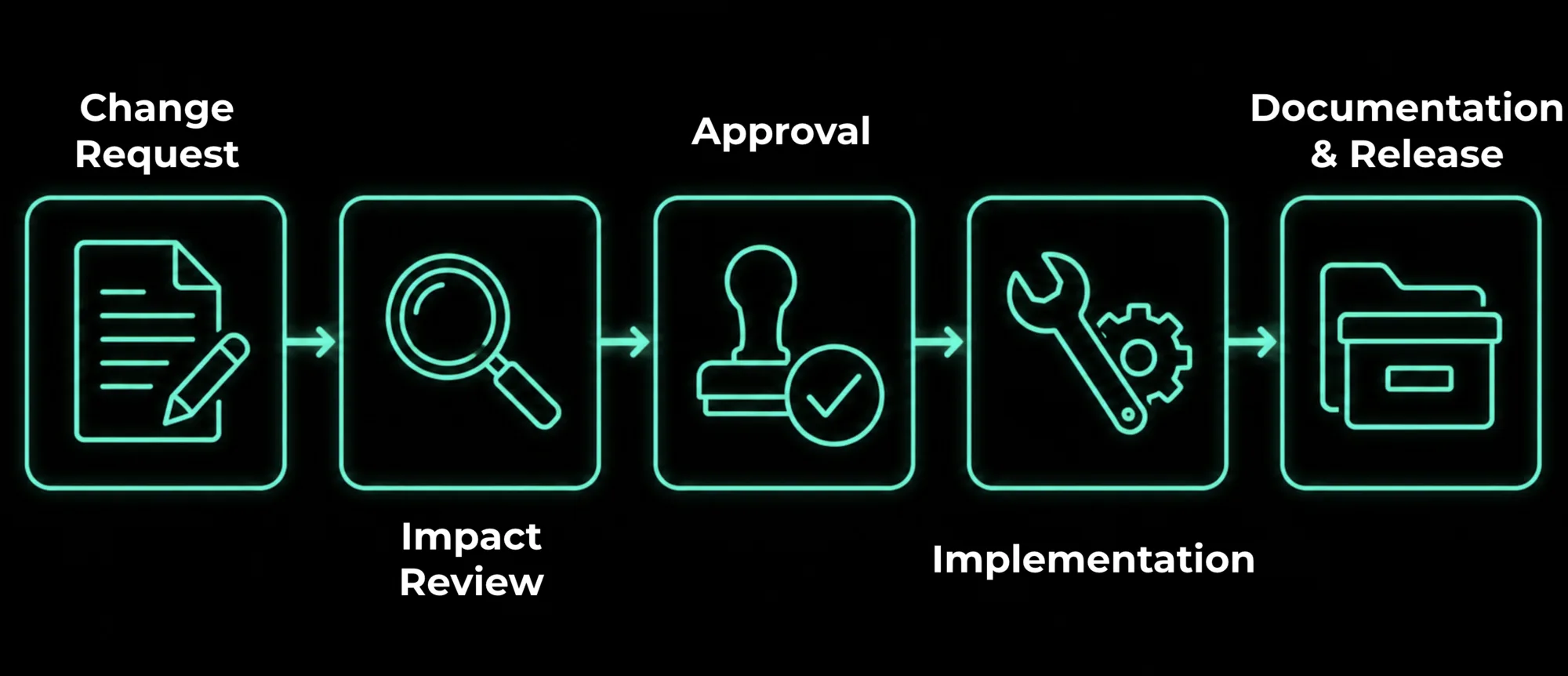

Engineering change management is the structured process for proposing, evaluating, approving, and documenting a design modification. The process typically runs through an engineering change request (ECR), which proposes the change and its justification, followed by an engineering change order (ECO), which formally authorizes and documents the approved modification.

Engineering Change Order (ECO) Workflow Stages

Revision control keeps every version of a schematic, board file, or firmware build tied to a specific, traceable state. Without revision control, two engineers can end up working against different versions of the same board and not know it until parts fail to fit or a signal misroutes.

A dependable change management process delivers the following concrete benefits:

• Traceability: every change links back to a request, a reviewer, and a reason for an auditable design history.
• Fewer conflicting versions: locked revisions and clear approval gates stop teams from building against outdated data.
• Faster root-cause analysis: when a defect appears, a documented change history shows exactly what changed and when.
• Clear communication: an ECO distributed to every discipline means mechanical, firmware, and manufacturing all learn about a change at the same time, not weeks apart.

Keep ECAD, MCAD & Firmware in Sync

Electronic design automation (ECAD) tools handle schematic and PCB layout, while mechanical design automation (MCAD) tools handle enclosures, brackets, and mechanical fit. Collaboration between ECAD and MCAD tools is where many hardware integration problems originate, because the two design domains rarely share data automatically.

A few coordination points cause the most friction:

• Connector placement: a connector position set in the ECAD tool has to match the cutout in the mechanical enclosure, including tolerance for the connector's physical envelope.
• Board outline and mounting: the PCB shape and mounting hole locations need to match the enclosure's standoffs exactly, and a late change on either side can strand the other.
• Thermal management: heat-generating components need clearance for heat sinks, airflow, or thermal pads that mechanical design has to plan for in advance.
• Interface definitions: connectors, displays, and buttons that cross the board-to-enclosure boundary need agreed dimensions before either team finalizes their model.

Firmware development depends on the same kind of early coordination. Integrating hardware and software works best when firmware engineers get pin assignments, peripheral selection, and timing constraints while the schematic is still in review, not after the board has already been fabricated. A firmware team that only sees a finished board risks discovering that a required peripheral shares a pin with something else. That conflict can force a respin that a five-minute conversation earlier in the process would have avoided.

Avoiding integration problems late in development comes down to sharing design decisions as they happen rather than batching them into a single handoff. Weekly syncs between ECAD, MCAD, and firmware leads surface conflicts while they are still cheap to fix.

Some of this friction is disappearing as ECAD and MCAD steps merge into a single workflow. Flux can now generate a 3D-printable enclosure directly from a board's actual geometry. This means mounting holes and board outline stay matched by default because the enclosure is derived from the same source data as the schematic, rather than modeled separately and reconciled later. The enclosure is added to the project, which removes one of the handoffs that causes mechanical and electrical teams to drift out of sync.

Best Practices for Collaborative Hardware Development

A collaborative hardware development program comes down to habits, not tools. Teams that build these habits into their engineering workflow consistently ship with fewer late-stage surprises:

• Involve every discipline early. Bring mechanical and firmware into concept review, not after schematic capture is finished.
• Review designs continuously, not just at major milestones. Smaller, more frequent reviews catch problems while they are still cheap to fix.
• Document decisions, not just outcomes. Record why a choice was made so future changes do not repeat the same debate.
• Standardize revision practices across ECAD, MCAD, and firmware so every team names and tracks versions the same way.
• Maintain a single source of truth that every discipline references instead of working from local copies.
• Communicate engineering changes clearly to every affected team as soon as an ECO is approved, not after the next scheduled meeting.

Modern PCB design platforms make these habits easier to sustain. Flux supports collaborative hardware development through:

• shared projects that keep electrical, mechanical, and firmware stakeholders working from the same schematic and board data,
• real-time commenting that keeps design review feedback attached to the specific net or component it concerns, and;
• version history that gives every team a traceable record of what changed and when.

Such tools do not replace a team's own process, but they remove the friction that usually breaks one.

Build Better Hardware, Together

Hardware team collaboration is the process that keeps electrical, mechanical, and firmware decisions from working against each other. Structured design reviews, clear documentation, disciplined revision control, and a real engineering change management process give multidisciplinary teams a repeatable way to stay aligned from concept through production. Bring electrical, mechanical, and firmware teams onto the same schematic, board data, and revision history by starting a shared project in Flux.

FAQs

Why is collaboration important in hardware development?

Collaboration matters because electrical, mechanical, and firmware decisions constrain each other constantly. A hardware team working without coordination tends to discover integration conflicts late, when fixes cost far more time and money than the same fixes would earlier in the process.

What is engineering change management?

Engineering change management is the structured process a team uses to propose, review, approve, and document a design modification. The process typically runs through an engineering change request and a formal engineering change order. Every revision stays traceable as a result.

What is the purpose of a hardware design review?

A hardware design review gives a team a scheduled checkpoint to evaluate a design against requirements before moving to the next development stage. Design reviews catch conflicts between disciplines while corrections are still inexpensive.

How do ECAD and MCAD teams collaborate?

ECAD and MCAD teams collaborate by sharing board outlines, connector placements, and mounting dimensions early and updating each other whenever either model changes. Frequent syncs prevent the enclosure and the PCB from drifting out of alignment.

How should firmware engineers work with hardware engineers?

Firmware engineers should get pin assignments, peripheral selection, and timing constraints while the schematic is still in review. Early access lets firmware development proceed in parallel with layout instead of waiting for a finished board.

What is an engineering change order (ECO)?

An engineering change order is the formal document that authorizes and records an approved design modification. An ECO typically follows an engineering change request and includes the reason for the change, the approval record, and the updated revision.
