Engineering teams frequently rush into schematic capture the moment an idea materializes. While drawing circuits feels productive, skipping the feasibility and planning stages creates massive downstream risk. A project might function perfectly on a breadboard but fail as a commercial product due to exorbitant component costs, impossible battery life demands, or severe supply chain shortages.

Evaluating true product feasibility requires stepping back from the CAD tools. More specifically, successful hardware development combines clear requirements, realistic cost targets, thoughtful component selection, and early power budgeting. Applying cost engineering (evaluating and optimizing costs throughout product development) helps teams evaluate component, assembly, and production costs before design decisions become expensive to reverse. Validating these decisions before PCB design reduces engineering risk, avoids redesigns, and improves manufacturing readiness.

Key Takeaways

Define Requirements Before You Design

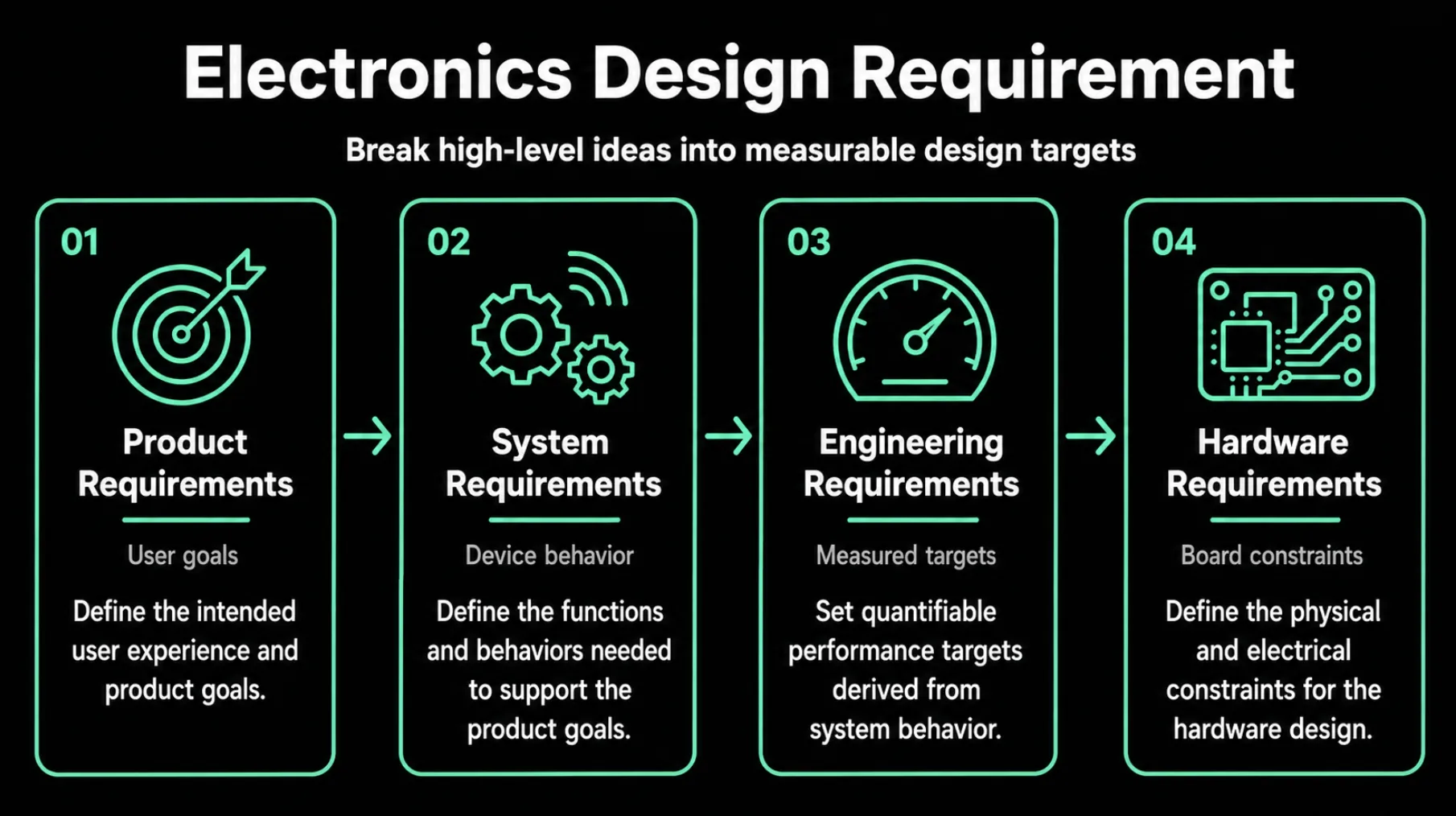

Electronics design requirements broken down into product, system, engineering, and hardware requirements.
Electronics Design Requirements

Successful electronic product design begins with clear, documented requirements rather than immediate schematic drawing. Defining exact constraints for performance, cost, size, power, and functionality ensures the engineering team builds a product that meets market expectations without over-engineering the solution. Therefore, establishing a formal hardware specification requires breaking down high-level ideas into measurable engineering metrics.

  • Product requirements: High-level goals describing the intended user experience. A wearable fitness tracker might require a screen that is visible in sunlight, a lightweight enclosure, and a seven-day battery life.
  • System requirements: Operational behaviors needed to support the product goals, such as Bluetooth Low Energy (BLE) synchronization, wrist-rotation wake detection, and USB-C charging.
  • Engineering requirements: Measurable technical targets derived from system behavior. For example, the BLE module must transmit at +4 dBm, the standby current must remain below 15 microamps, and the display must produce 400 nits of brightness.
  • Hardware requirements: Physical and electrical board-level constraints, such as a four-layer PCB stackup, a 30 mm diameter circular boundary, and an onboard 3.3 V buck-boost converter.

By defining measurable electrical, performance, and interface requirements, engineers create a measurable baseline. If a proposed microcontroller draws too much current and violates the documented standby target, the team rejects the component immediately. Such strict guidelines prevent arbitrary decisions and keep the hardware project aligned with its original goals.

Choose the Right Components

Once the hardware architecture is defined, engineers must translate functional blocks into physical components. Effective component sourcing requires balancing technical performance with cost, availability, lifecycle status, and production scalability.

Hardware Component Selection Criteria

Component Technical Criteria Cost Considerations Sourcing & Production
Microcontrollers Clock speed, Flash/RAM, GPIO, SPI/I2C/UART, ADC/PWM, sleep current Unit price and support components Lifecycle status, distributor stock, manufacturer support, alternatives
Sensors Accuracy, measurement range, sampling rate, interface, package size, power Part price and calibration cost Lead time, second sources, lifecycle status, production consistency
Power ICs Input/output range, efficiency, quiescent current, thermal performance, battery compatibility IC price, external parts, PCB area Distributor availability, thermal margin, efficiency at target loads
Wireless Modules Protocol, range, sensitivity, transmit power, antenna requirements, power Module cost vs. discrete RF cost Certification, availability, antenna integration, scalability
Connectors Pin count, current rating, mating cycles, mechanical size, enclosure fit Part and assembly cost Lead time, packaging format, long-term availability, automation compatibility
Memory Capacity, read/write speed, endurance, retention, interface, power Cost per capacity Availability, compatible replacements, volume pricing

A well-defined hardware specification should determine not only what each component must do, but also the commercial constraints it must meet. Components that perform well in a prototype may still be unsuitable for production if they are expensive, difficult to source, approaching end-of-life, or available from only one supplier.

Estimate BOM Costs with Cost Engineering

Cost engineering is the practice of forecasting and managing product expenses long before the assembly line starts. Prototypes always carry high price tags due to low-volume premiums. However, scaling a business requires accurately predicting the high-volume bill of materials cost.

Hardware teams begin by creating a preliminary electronic BOM. Such a document lists the estimated pricing for the MCU, sensors, power management ICs, and PCB fabrication. Calculating an accurate hardware BOM prevents teams from designing a product that costs fifty dollars to build when the retail price is forty dollars.

Engineers must calculate the raw component expenses alongside the PCB manufacturing cost. High-density interconnect (HDI) boards, blind vias, and heavy copper layers exponentially increase bare board fabrication expenses. Furthermore, teams must factor in automated assembly costs, which increase based on the total number of unique surface-mount placements. Utilizing an automated BOM calculator helps track unit costs across different purchase volumes.

Early BOM Cost Checklist

Estimate high-value silicon costs (MCU, memory, radio).
Estimate bare PCB fabrication expenses based on layer count and dimensions.
Calculate estimated assembly costs based on total component count.
Add a 10% to 15% margin for passive components, connectors, and minor ICs.
Include testing, programming, and packaging expenses.
Verify the estimated total cost aligns with the target gross profit margin.

Build a Realistic Power Budget

A power budget establishes whether a portable device can meet its power and battery-life requirements. Estimating power consumption early helps avoid costly redesigns, such as increasing battery capacity, enlarging the enclosure, or selecting a different microcontroller.

Engineers must estimate the current draw across all operating states. More specifically, a device rarely operates at full power continuously. Instead, hardware transitions between active processing, wireless transmission, and deep sleep modes. By multiplying the current draw of each state by its expected duration, engineers calculate the average daily energy consumption, directly driving battery sizing decisions.

Example Power Consumption Calculation

Consider a remote IoT environmental sensor transmitting data once every ten seconds.

  1. Active Mode (Transmission): The MCU and radio draw 20 milliamperes (mA) for 100 milliseconds (0.1 seconds).
  2. Sleep Mode: The system enters deep sleep, drawing 10 microamperes (µA) for 9.9 seconds.

To calculate the average current:

  • Active Current Contribution: 20 mA × (0.1s / 10s) = 0.2 mA (or 200 µA)
  • Sleep Current Contribution: 0.01 mA × (9.9s / 10s) = 0.0099 mA (or 9.9 µA)
  • Total Average Current: 209.9 µA

If the product requires a one-year lifespan (8,760 hours), the required battery capacity equals: 209.9 µA × 8,760 hours = 1,838 milliampere-hours (mAh).

Factoring in a 20% safety margin for battery degradation and temperature fluctuations, the engineer specifies a 2,200 mAh battery. Implementing advanced embedded power management techniques, such as completely cutting power to peripheral sensors during sleep intervals, extends the runtime further.

Reduce Manufacturing Risk Early

Executing design for manufacturability evaluations during the planning stage enables a significant manufacturing cost reduction. Manufacturability does not begin during the final design review; it starts when selecting the initial architecture.

Choosing standardized component packages ensures broad compatibility with automated pick-and-place machinery. For instance, selecting an 0402 resistor package rather than a microscopic 01005 package accelerates assembly speed and reduces defect rates at the factory.

Risk reduction also demands supply chain flexibility. Engineers must identify footprint-compatible alternate components for critical power regulators and memory chips. Designing a circuit around a proprietary, single-source silicon chip introduces massive operational risk. If the manufacturer discontinues the component, the entire hardware product halts production. By prioritizing multi-source components during the hardware specification phase, teams insulate the product against global supply chain shocks.

Common Early-Stage Hardware Planning Mistakes

Many hardware startups experience failure due to predictable planning oversights. Recognizing common pitfalls during the hardware product design phase prevents expensive delays.

Common Hardware Design Mistakes, Their Impact, and Best Practices

Mistake Why it happens Example Impact Better approach
Skipping the Requirements Document Engineers want to start drawing schematics immediately to show visual progress. The team builds a product that functions electrically but fails to meet battery life or size expectations. Draft a strict requirements document and secure approval from all stakeholders before opening CAD software.
Choosing Difficult-to-Source Components Designers select parts based purely on technical specifications without checking stock levels. The board cannot be assembled because a primary sensor has a 52-week lead time. Verify inventory across multiple distributors and confirm the part is recommended for new designs (NRND check).
Underestimating Assembly Costs Teams focus entirely on component pricing and ignore machine placement time. The final assembled board exceeds the target retail cost. Include estimated placement costs, often calculated per pin or per component, in early BOM estimates.
Overengineering the Initial Architecture Teams attempt to pack every theoretical feature into the first prototype. The design becomes too complex to debug, delaying core functionality validation. Stick to the minimum viable requirements for the initial hardware spin.
Delaying Manufacturing Considerations Designers assume the factory will figure out how to build the board later. The factory requires a total layout redesign to accommodate its assembly machinery. Consult with contract manufacturers early to understand minimum trace widths, via sizes, and panelization rules.

Hardware Feasibility Checklist

Before moving a project into schematic capture, engineering teams must clear the following validation gates.

Hardware Feasibility Approval Checklist

Product requirements are fully documented and approved.
Engineering requirements contain measurable technical metrics.
Core components (MCU, radio, power ICs) are selected.
Alternate footprint-compatible parts are identified for high-risk silicon.
Preliminary BOM cost is estimated and matches target margins.
Power budget is calculated and confirms battery sizing feasibility.
Design for manufacturability rules are established with a target factory.
Physical enclosure dimensions are verified against expected board size.

How Flux Supports Early Hardware Planning

Modern engineering requires tools that synchronize technical planning with actual hardware execution. Flux provides a collaborative environment for hardware teams to evaluate feasibility before committing to complex routing.

By utilizing shared component libraries, teams gain immediate visibility into part data, package dimensions, and footprint availability. The platform enables engineers to draft high-level architectural block diagrams and share them instantly for peer design reviews. Furthermore, Flux allows teams to monitor the Bill of Materials continuously as the schematic evolves, ensuring the project remains aligned with the initial cost engineering targets. Try Flux now to prevent isolated decision-making, allowing hardware teams to validate technical approaches efficiently and confidently.

FAQs

What is hardware feasibility?
Hardware feasibility is the process of evaluating whether a proposed electronic product can be successfully designed, manufactured, and sold within specific technical, financial, and operational constraints.
What is cost engineering in hardware development?
Cost engineering involves forecasting, modeling, and controlling the expenses related to component procurement, bare board fabrication, and automated assembly to ensure the final product meets profit margin targets.
How do you estimate BOM costs?
Engineers estimate BOM costs by compiling pricing data for high-value silicon components, adding estimated PCB fabrication and assembly fees, and applying a percentage margin to cover passive components, connectors, and testing overhead.
What is a power budget?
A power budget is a mathematical calculation detailing the electrical current consumed by a circuit across different operating states (active, idle, sleep). The budget dictates the required battery capacity and thermal management strategies.
How do you choose the right microcontroller?
Choosing an MCU requires evaluating required clock speed, memory capacity, peripheral interfaces, power consumption, supply chain availability, and the quality of the manufacturer's software development ecosystem.
What is design for manufacturability?
Design for manufacturability is the practice of designing a circuit board specifically to optimize factory fabrication and assembly, reducing production errors, lowering costs, and increasing manufacturing yield.
When should manufacturability be considered?
Manufacturability must be considered during the initial architecture and component selection phase, long before the physical PCB layout begins. Selecting standard packages and multi-source components ensures the product remains buildable at scale.
