November 6, 2023
What Is the Real Difference? Arduino Mega Vs Micro Vs Uno
Share

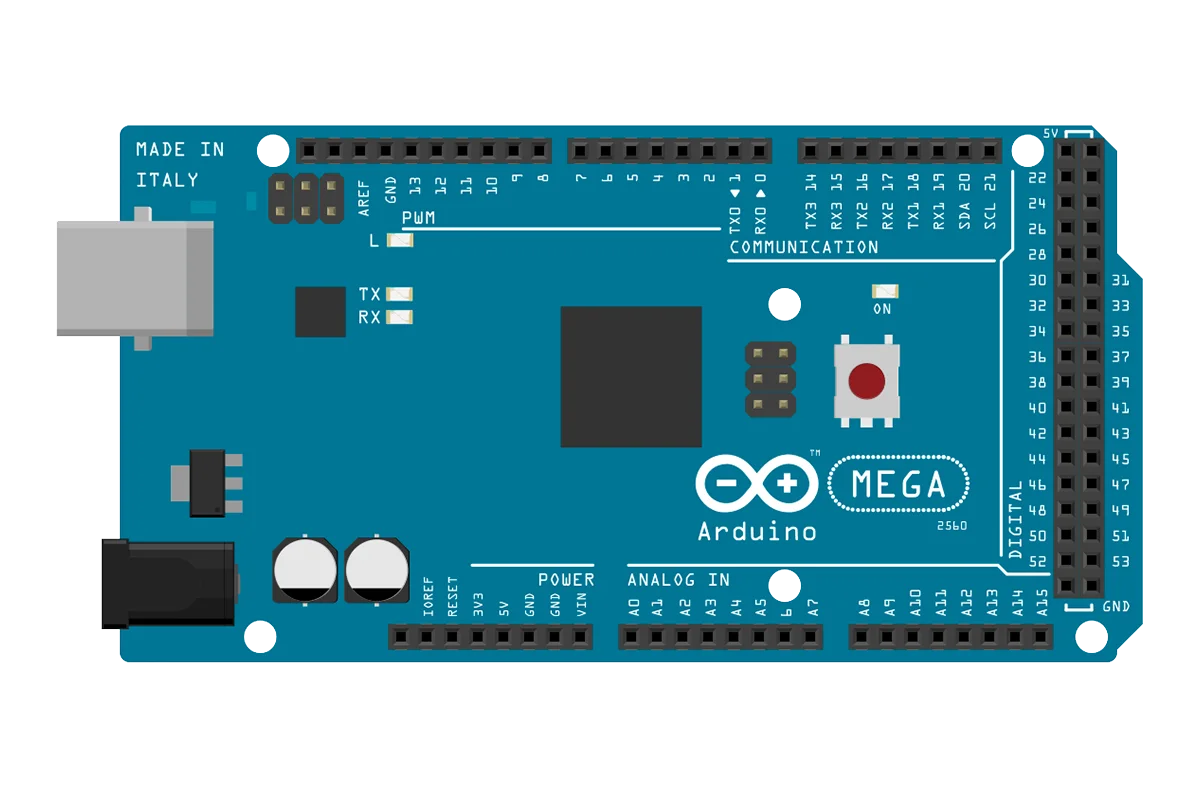

The Arduino Mega is a veritable powerhouse among Arduino boards. When raw computational muscle is what you need for your project, the Mega is the answer. It's powered by the ATmega2560 microcontroller, boasting a clock speed of 16MHz. This 8-bit microcontroller offers a substantial amount of flash memory, 256KB to be precise, which is a game-changer for projects requiring extensive code or data storage. Here are some key features of the Arduino Mega:
The Arduino Mega is a go-to choice for projects that demand an extensive range of digital and analog pins. Its generous 54 digital I/O pins and 16 analog input pins make it ideal for complex robotics, 3D printers, and other projects requiring multiple sensors and actuators. The 15 PWM pins provide precise control over motors and servos, which is a significant advantage for robotic applications. Additionally, the vast 256KB of flash memory ensures that even the most complex code can be accommodated.

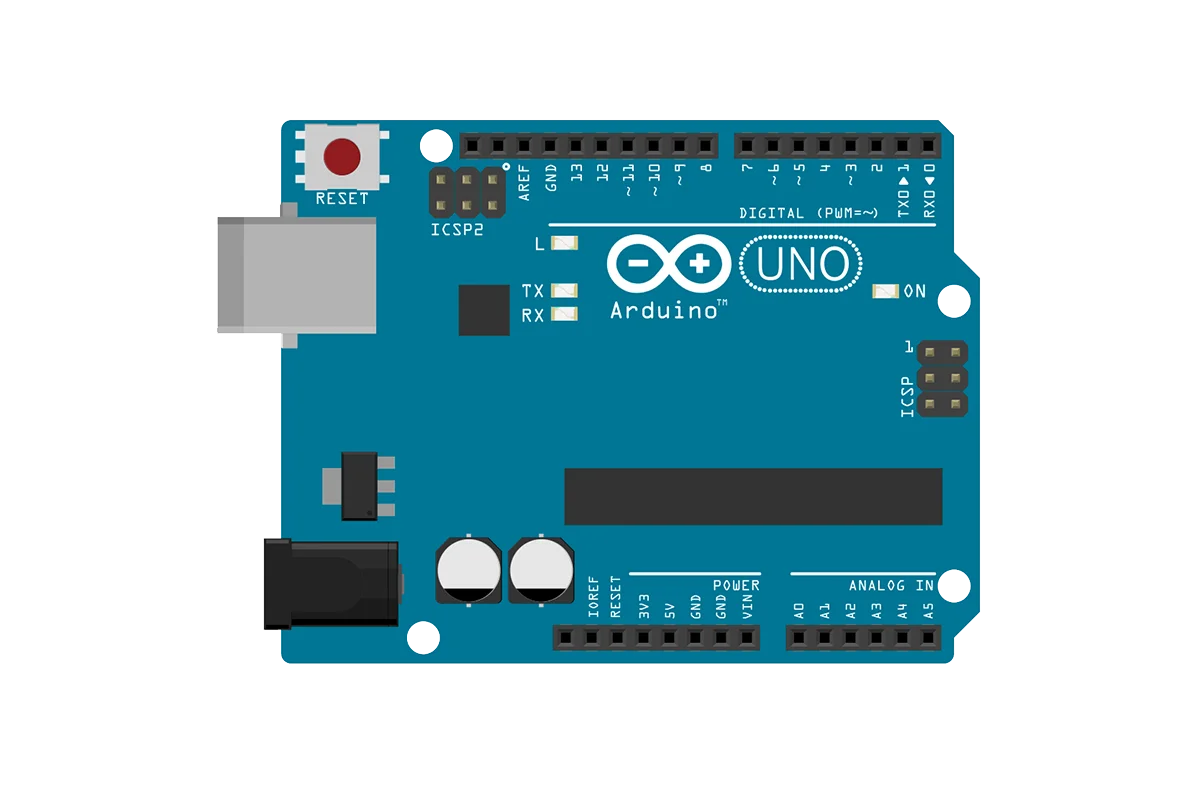

The Arduino Uno is the quintessential Arduino board. It's the board that most beginners start with, and for good reason. It's straightforward, versatile, and perfect for learning the ropes of microcontrollers. The Arduino Uno is powered by the ATmega328P microcontroller, running at 16MHz, and offers the following features:
The Arduino Uno may not be as feature-rich as the Mega, but it has its own set of advantages. Its simplicity makes it an excellent choice for beginners, and its smaller size allows it to be easily integrated into various Arduino projects. With 32KB of flash memory, it can handle most small to medium-sized projects with ease. The 6 PWM pins provide ample control for motors and LEDs, and the 14 digital I/O pins are sufficient for many applications.

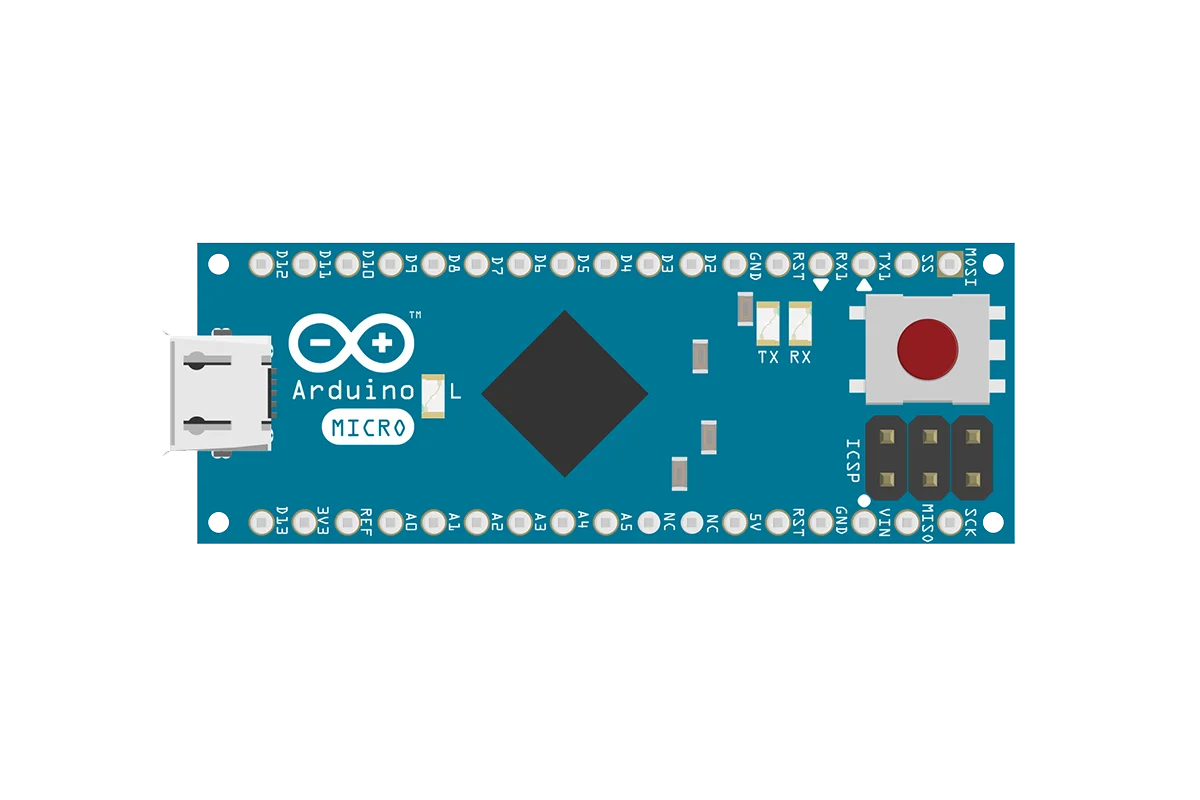

The Arduino Micro is the compact sibling in the Arduino family. It offers an excellent balance of performance and size, making it an ideal choice for portable and space-constrained projects. Here are some of its key specifications:
The Arduino Micro is an excellent choice when you need a microcontroller that can fit in tight spaces. It's also noteworthy for its 7 PWM pins, which provide fine-grained control over various components, and 20 digital I/O pins, giving you the flexibility to connect multiple sensors and actuators. With 32KB of flash memory, it can handle a wide range of projects while maintaining its compact form factor.
Some important specifications on these boards are flash memory and clockspeed, but what are they? Flash memory serves as the digital canvas where your code and data are stored. Think of it as your project's memory bank, and the larger the capacity, the more room you have to store complex code and information. On the other hand, clock speed determines the rate at which the microcontroller processes instructions. A higher clock speed signifies a faster computational engine.
In addition to the features discussed so far, it's important to mention two benefits of using any of these Arduino microcontrollers:
All three Arduino models support ICSP (In-Circuit Serial Programming), which allows you to reprogram the microcontroller without removing it from your project. This can be a handy feature, especially when you want to make updates or changes to your code without disassembling your project.
While the default operating voltage for these boards is 5V, it's worth noting that they can be adapted for 3V operation with some care. This is useful when working with components that require a lower voltage supply, such as many sensors and microSD cards.
The choice between the Arduino Mega, Arduino Uno, and Arduino Micro ultimately depends on the requirements of your project, so consider the following factors:
Regardless of your choice, with the right board in hand, your Arduino project will be ready to take flight!
