Arduino Uno Basics: Beginner's Guide to Getting Started

The Arduino Uno is an open-source microcontroller board based on the Microchip ATmega328P microcontroller developed by Arduino.cc and initially released in 2010. The board is equipped with sets of digital and analog input/output (I/O) pins that may be interfaced with various expansion boards (shields) and other circuits. The board has 14 digital I/O pins (six capable of PWM output) and 6 analog I/O pins and is programmable with the Arduino IDE (Integrated Development Environment) via a type B USB cable. It can be powered by a USB cable or a barrel connector that accepts voltages between 7 and 20 volts, such as a rectangular 9-volt battery. It is similar to the Arduino Nano and Leonardo. The hardware reference design is distributed under a Creative Commons Attribution Share-Alike 2.5 license and is available on the Arduino website. Layout and production files for some versions of the hardware are also available.

A 3d model of arduino uno board

The word "uno" means "one" in Italian and was chosen to mark a significant redesign of the Arduino hardware and software. The Uno board was the successor of the Duemilanove release and was the 9th version in a series of USB-based Arduino boards. Version 1.0 of the Arduino IDE for the Arduino Uno board has now evolved to newer releases. The ATmega328 on the board comes preprogrammed with a bootloader that allows uploading new code without using an external hardware programmer.

While the Uno communicates using the original STK500 protocol, it differs from all preceding boards because it does not use an FTDI USB-to-UART serial chip. Instead, it uses the Atmega16U2 (Atmega8U2 up to version R2) programmed as a USB-to-serial converter. The Arduino Uno R3 board has an In-Circuit Serial Programming (ICSP) header, which provides an interface for programming the microcontroller or communicating with other devices using SPI (Serial Peripheral Interface). The ICSP header can be used to update the firmware on the board or connect additional peripherals, such as shields or breakout boards, that rely on SPI communication.

Arduino

related projects, submodules and templates

If you’re just getting started with
Arduino
, we have many

What is Arduino Uno?

The Arduino Uno is an exceptional open-source electronics platform that empowers hobbyists and professionals alike to dive into the world of embedded systems. With its user-friendly programming language, you can easily create complex projects by writing minimal code. The Uno's powerful ATmega328P microcontroller enables rapid development of innovative applications, ranging from home automation to robotics and wearable technology to environmental monitoring. What sets the Arduino Uno apart is its compatibility with an extensive array of expansion boards (shields), enabling endless customization to suit your unique project requirements. By choosing the Arduino Uno, you're investing in a platform that has proven its versatility and reliability in countless real-world applications. Don't hesitate; embrace the Arduino Uno and unlock the limitless potential of your creative genius today.

Is Arduino Uno R3 a microcontroller?

The Arduino Uno R3 is not a microcontroller itself; instead, it is a development board built around a microcontroller. The microcontroller on the Arduino Uno R3 is the ATmega328P, which is an 8-bit microcontroller from Atmel's AVR family. The board uses a USB-to-serial converter chip, which is an FTDI (Future Technology Devices International) chip on some older Arduino boards or an ATmega16U2 chip on most of the newer Arduino Uno R3 boards. The Arduino Uno R3 provides an easy-to-use platform for programming and interfacing with the ATmega328P microcontroller and various peripherals and components, making it an ideal choice for various projects.

Arduino Uno Specification

| Specification | Value | | :=== | :=== | | Microcontroller | ATmega328P | | Operating Voltage | 5V | | Input Voltage (Recommended)| 7-12V | | Input Voltage (Limits)| 6-20V | | Digital I/O Pins | 14(6 of which can be used as PWM outputs | | Analog Input Pins | 6 | | Total DC Current for I/O Pins | 200mA | | DC Current per I/O Pin | 20mA | | DC Current for 3.3V Pin | 50mA | | Flash Memory | 32KB (0.5KB used by bootloader) | | SRAM | 2KB | | EEPROM | 1KB | | Clock Speed | 16MHz | | Length | 68.6mm (2.7 inches) | | Width | Width 53.4mm (2.1 inches) | | Weight | 25g | | Power Connector | 2.1mm x 5.5mm barrel jack | | Reset Button | Yes | | Power LED | Yes | | TX/RX LEDs | Yes | | LED | Yes (connected to digital pin 13) | | Voltage Regulator | NCP1117 (5V, 1A) |

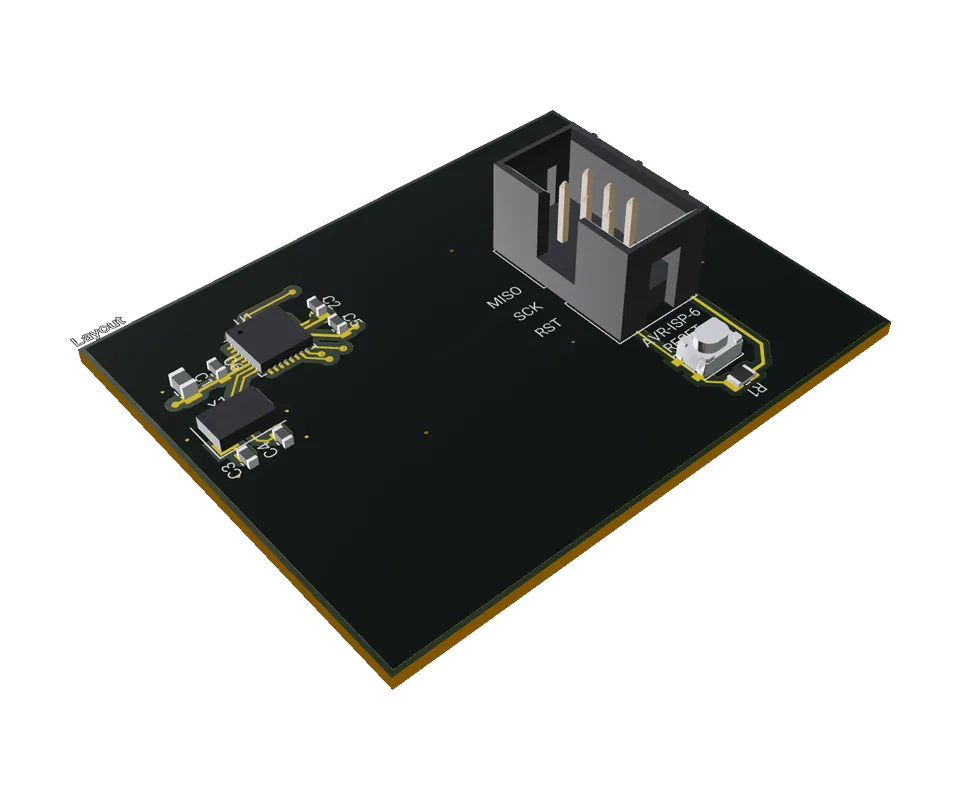

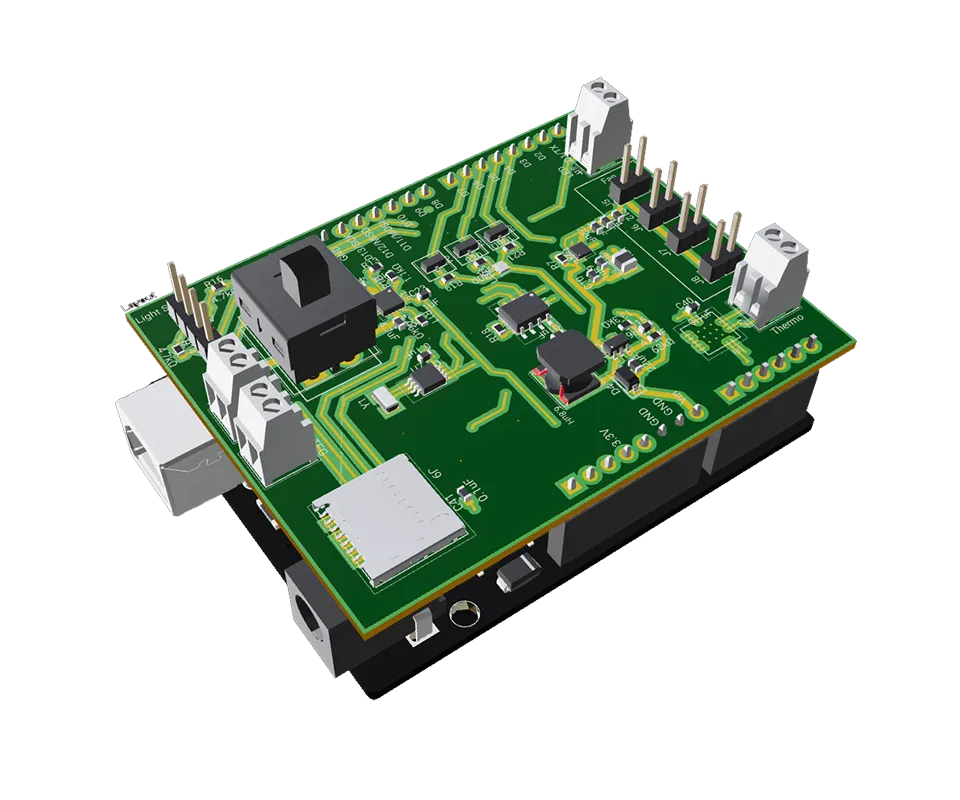

SmokeSensor Shield - Arduino Uno shield is used to monitor chimney smoke and provide feedback to the stove.

What processor is on an Arduino Uno R3?

The Arduino Uno R3 uses the ATmega328P microcontroller as its central processor. The ATmega328P is an 8-bit microcontroller from the AVR family produced by Microchip (previously Atmel). It features a 16 MHz clock speed, 32 KB of flash memory, 2 KB of SRAM, and 1 KB of EEPROM.

How fast is an Arduino Uno R3?

The Arduino Uno R3 has an ATmega328P microcontroller, which operates at a clock speed of 16 MHz. The processor can execute up to 16 million instructions per second. While this speed is relatively low compared to modern microprocessors, it is more than sufficient for most hobbyist projects and simple applications, such as sensor reading, basic automation, and simple robotics.

 What is the pinout of the Arduino Uno?

| Pin No. | Pin Name | Pin Type | Description | | :=== | :=== | :=== | :=== | | 1 | Reset | Reset | Resets the microcontroller when pulled LOW; usually connected to the reset button | | 2-3 | TX,RX | Serial | Digital pins 0 (RX) and 1 (TX) for serial communication | | 4-9 | D2 - D7 | Digital I/O | General-purpose digital I/O pins | | 10-13 | D8 - D13 | Digital I/O | General-purpose digital I/O pins (D13 has built-in LED) | | 14-19 | A0 - A5 | Analog Input | Analog input pins can also be used as digital I/O pins | | 20 | AREF | Reference | The external voltage reference for analog inputs | | 21 | 3V3 | Power | 3.3V output from on-board voltage regulator (max 50mA) | | 22 | GND | Ground | Ground pins | | 23 | GND | Ground | Ground pins | | 24 | VIN | Power | Power input from the external power source or connected to VCC when USB powered | | 25 | 5V | Power | 5V output from the onboard voltage regulator | | 26 | D10 - D11 | SPI | SPI communication pins (D10 - SS, D11 - MOSI) | | 27-28 | D12 - D13 | SPI | SPI communication pins (D12 - MISO, D13 - SCK) | | 29-30 | A4 - A5 | I2C | I2C communication pins (A4 - SDA, A5 - SCL) | | 31 | D9 | PWM | Pulse Width Modulation (PWM) capable digital I/O pin | | 32 | D10 | PWM | Pulse Width Modulation (PWM) capable digital I/O pin | | 33 | D11 | PWM | Pulse Width Modulation (PWM) capable digital I/O pin | | 34 | D3 | PWM/Interrupt | PWM capable digital I/O pin and external interrupt 1 (INT1) | | 35 | D5 | PWM/Interrupt | PWM capable digital I/O pin and external interrupt 0 (INT0) | | 36 | D6 | PWM | Pulse Width Modulation (PWM) capable digital I/O pin |

This table provides a comprehensive overview of the Arduino Uno R3's pinout, which can be helpful when planning and building projects using this development board. Note that some pins have multiple functions, such as digital I/O, analog input, PWM, and communication protocols like SPI and I2C.

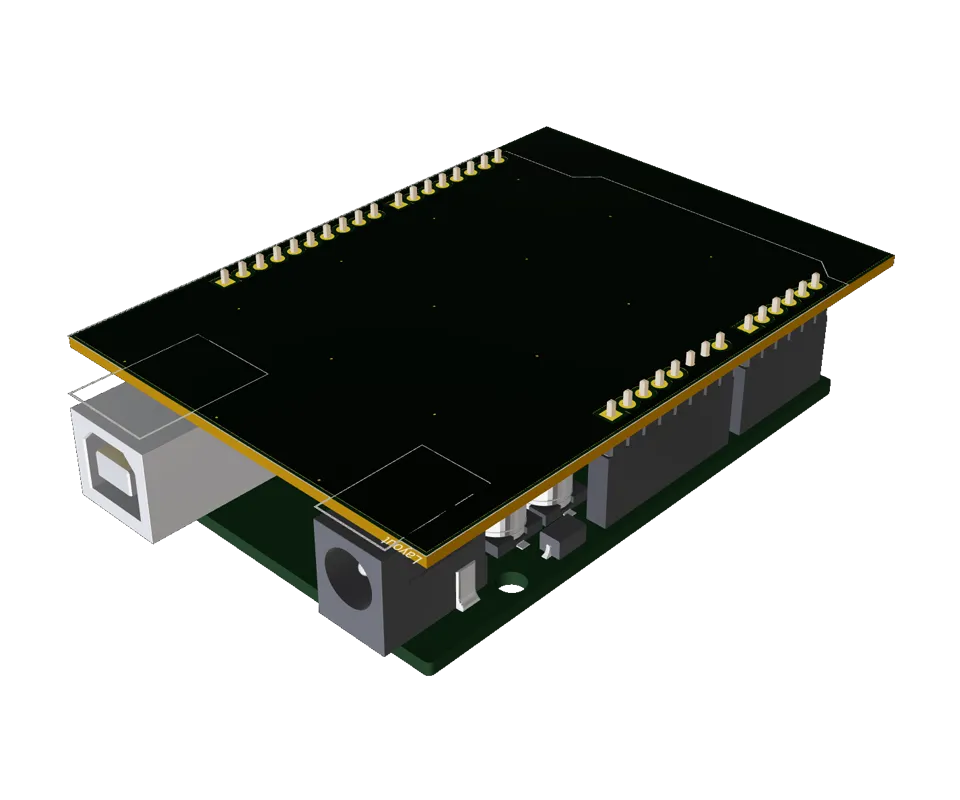

Arduino Uno R3 Shield Template - Include an official pinout so you will always know Arduino names and the alternative roles of pins.

What are the 3 types of pins on Arduino?

On an Arduino board, there are three primary types of pins:

  1. Digital I/O pins: These pins are used for digital input and output operations. They can read or produce either a HIGH (5V) or LOW (0V) signal, which is helpful for controlling devices like LEDs or reading the state of buttons. Some of these pins also support Pulse Width Modulation (PWM), allowing for the generation of analog-like signals to control devices such as servos or dimmable LEDs.
  2. Analog input pins: Analog input pins are used to read varying voltage levels, typically between 0V and the operating voltage (5V for Arduino Uno). These pins are connected to an Analog-to-Digital Converter (ADC) inside the microcontroller, which translates the analog voltage to a digital value. Analog input pins are commonly used for reading sensor data, such as temperature, light, or pressure sensors.
  3. Power and ground pins: These pins provide power and grounding connections for the board and connected components. The power pins include the supply voltage (5V or 3.3V, depending on the board), VIN for external power input, and sometimes a voltage reference pin (AREF). The ground pins are connected to the board's ground plane, providing a common reference point for all connected components.

In addition to these three primary types of pins, some Arduino boards also have pins supporting communication protocols like I2C, SPI, and UART for serial communication, enabling the board to interface with various peripherals and other devices.

How many ground pins are there on the Arduino Uno board?

The Arduino Uno board has a total of 5 ground pins. Three of them are located in the power section of the board, alongside the 5V, 3.3V, and VIN pins. The other two ground pins are situated beside the digital I/O pins, specifically next to pin 13 and the AREF pin. These ground pins can be used interchangeably to provide a common reference point for the connected components and circuits.

How do I program Arduino Uno R3?

To program an Arduino Uno R3, follow these steps:

  1. Install the Arduino IDE: Download and install the Arduino Integrated Development Environment (IDE) on your computer from the official Arduino website. The IDE is available for Windows, macOS, and Linux.
  2. Connect the Arduino Uno R3: Use a USB cable (Type A to Type B) to connect the Arduino Uno R3 to your computer.
  3. Launch the Arduino IDE: Open the Arduino IDE software on your computer.
  4. Select the board and port:
  5. Go to the "Tools" menu, then "Board", and choose "Arduino Uno" from the list of available boards.
  6. Next, go to "Tools" again, then "Port", and select the appropriate serial port that corresponds to your Arduino Uno R3. This will typically be labeled as "COM#" on Windows, "/dev/cu.usbmodem#" on macOS, or "/dev/ttyACM#" on Linux.
  7. Write or open a sketch (program):
  8. To create a new sketch, go to "File" > "New" and start writing your code in the editor.
  9. To open an example sketch, go to "File" > "Examples" and choose a sketch from the list of built-in examples.
  10. Compile and upload the sketch:
  11. Click the checkmark icon (✓) in the top left corner of the IDE to compile the sketch and check for any errors.
  12. If the compilation is successful, click the right arrow icon (→) next to the checkmark to upload the sketch to the Arduino Uno R3.
  13. Monitor the output (optional):
  14. If your sketch involves serial communication or you need to debug your code, click the magnifying glass icon in the top right corner of the IDE to open the Serial Monitor.
  15. Ensure the baud rate in the Serial Monitor matches the one specified in your sketch (e.g., Serial.begin(9600);).

After completing these steps, your Arduino Uno R3 should be successfully programmed and running the uploaded sketch. You can now modify the sketch or experiment with different examples to explore various functionalities and applications.

Is Arduino an IDE?

Arduino refers to both a hardware platform and an Integrated Development Environment (IDE).

  • Hardware Platform: Arduino is a family of open-source microcontroller-based development boards designed for electronics projects and prototyping. Examples include the Arduino Uno, Arduino Mega, and Arduino Nano. These boards typically feature a variety of digital and analog input/output pins, a microcontroller (e.g., ATmega328P on the Arduino Uno), and built-in communication interfaces, such as I2C, SPI, and UART.
  • Integrated Development Environment (IDE): The Arduino IDE software application provides an easy-to-use environment for writing, compiling, and uploading code (called sketches) to Arduino boards. The Arduino IDE supports the Arduino programming language, which is based on C/C++ but incorporates simplified syntax and built-in functions, making it more accessible for beginners. The IDE also includes a Serial Monitor for debugging and monitoring serial communication between the Arduino board and the computer.

Is Arduino IDE similar to Python?

The Arduino IDE and Python are related in the sense that they are both software environments used for programming, but they serve different purposes and are based on different programming languages.

  • Arduino IDE: The Arduino Integrated Development Environment (IDE) is a software application specifically designed for programming Arduino boards. The Arduino programming language used in the IDE is based on C/C++, with simplified syntax and built-in functions to make it more accessible for beginners. The Arduino IDE provides functionalities like writing, compiling, and uploading code to Arduino boards and a Serial Monitor for debugging and monitoring serial communication.
  • Python: Python is a high-level, versatile programming language widely used for various applications, such as web development, data analysis, artificial intelligence, and more. It is known for its readability and ease of use, making it a popular choice among beginners and experienced developers alike. Depending on the user's preference, Python programs can be written and executed using different IDEs, text editors, or the command line.

Is Arduino IDE C or C++?

The Arduino IDE supports a programming language based on both C and C++. The Arduino programming language inherits the syntax, data types, and control structures from C/C++, but it also incorporates simplified syntax and built-in functions to make it more accessible for beginners.

When you write a sketch (program) in the Arduino IDE, you can use features from both C and C++ languages, including object-oriented programming (OOP) concepts like classes and objects from C++.

Under the hood, the Arduino IDE uses the AVR-GCC compiler (for boards based on AVR microcontrollers, such as the Arduino Uno) or other appropriate compilers for different microcontroller families. These compilers support both C and C++ languages, allowing you to fully utilize the features of both languages in your Arduino sketches.

This template is a good starting point for your Arduino based project.

What is pinMode in Arduino?

In Arduino, pinMode is a built-in function used to configure a specific digital I/O pin as either an input or an output. This function is essential for setting up the behavior of each pin on the Arduino board before using them in a sketch (program).

The pinMode function takes two arguments:

  1. The pin number: The number of the digital I/O pin you want to configure.
  2. The mode: The desired mode for the pin, either INPUT, OUTPUT, or INPUT_PULLUP.

Here's the syntax for using pinMode:

pinMode(pin, mode);

Typically, you call the pinMode function in the setup() section of your Arduino sketch to configure the pin behavior before the main loop starts executing.

For example, to configure digital pin 13 as an output, you would write:

void setup() {  pinMode(13, OUTPUT); // Set digital pin 13 as an OUTPUT}

And to configure digital pin 2 as an input with an internal pull-up resistor, you would write:

void setup() { pinMode(2, INPUT_PULLUP); // Set digital pin 2 as an INPUT_PULLUP }

Using pinMode correctly is crucial for ensuring the proper operation of your Arduino projects and avoiding potential issues with pin configurations.

Is pinMode necessary in Arduino?

Using pinMode in Arduino is necessary when working with digital I/O pins because it configures the pin behavior as either an input or an output. Properly setting the pin mode ensures that the Arduino board can interact with connected components as intended.

What is the difference between pinMode and digitalWrite?

pinMode and digitalWrite are built-in functions in the Arduino programming language, and they serve different purposes related to digital I/O pins on an Arduino board:

  1. pinMode: This function is used to configure a specific digital I/O pin as either an INPUT or an OUTPUT. It takes two arguments: the pin number and the mode (INPUT, OUTPUT, or INPUT_PULLUP). The pinMode function should be called in the setup() function of the Arduino sketch to configure the pin behavior before executing the main loop.

Syntax: pinMode(pin, mode);

Example:

pinMode(13, OUTPUT); // Set digital pin 13 as an OUTPUT
  1. digitalWrite: This function is used to set the state of a digital output pin to either HIGH (5V) or LOW (0V). It takes two arguments: the pin number and the desired state (HIGH or LOW). The digitalWrite function is typically used in the loop() function or other functions to control devices like LEDs, relays, or other digital components.

Syntax: digitalWrite(pin, value);

Example:

digitalWrite(13, HIGH); // Set digital pin 13 to HIGH (5V)

In summary, the pinMode function configures a digital I/O pin as either an input or an output, while the function sets the state of a digital output pin to HIGH or LOW.

What is Arduino Uno R3 used for?

The Arduino Uno R3 is a versatile, open-source microcontroller board used for a wide range of applications, including electronics projects, prototyping, learning programming and electronics, and building interactive systems. Some common uses for the Arduino Uno R3 include:

  1. Education: The Arduino Uno R3 is a popular choice for students and educators to learn programming and electronics concepts, thanks to its user-friendly programming environment, easy-to-interface with a breadboard, extensive online resources, and active community support.
  2. Hobbyist projects: The Arduino Uno R3 is often used by hobbyists to create various DIY projects, such as home automation systems, robots, interactive art installations, and musical instruments.
  3. Prototyping: The Arduino Uno R3 provides a cost-effective and accessible platform for engineers, designers, and makers to develop and test their ideas before creating custom PCBs or moving on to more advanced microcontroller boards.
  4. Sensor interfacing: The Arduino Uno R3 can be used to interface with a wide variety of sensors, such as temperature, humidity, light, and motion sensors, allowing users to collect data and build monitoring systems for various applications.
  5. Actuator control: The Arduino Uno R3 can control various actuators like motors, servos, relays, and solenoids, enabling the creation of automated systems, robotics, and mechatronic devices.
  6. Communication with other devices: The Arduino Uno R3 supports communication protocols like I2C, SPI, and UART, allowing it to interface with other microcontrollers, computers, or peripherals, such as displays, EEPROMs, or wireless communication modules.

These are just a few examples of what the Arduino Uno R3 can be used for. Its simplicity, accessibility, and flexibility make it a popular choice for a wide range of applications, from beginner-level projects to more complex systems.
