Designing a Guitar Effects Pedal: Modular Boards Inside a Standard Pedal Case

A pedal maker finds a mechanical mismatch in the drilled aluminum shells: controls align with the artwork, but the footswitch connector presses against the lower board. The circuit passes its bench test, yet assembly inside a Hammond 1590B enclosure is blocked.

The maker, a boutique effects-pedal manufacturer, had booked a short production run for its new octave-and-filter pedal. The pedal designer led product engineering. She wanted to keep the analog audio path quiet and make the presets easy to update. The team had designed a single crowded board before deciding to split its functions. That late change made the control positions and case layout the real schedule risk.

Separate the audio path from the controls

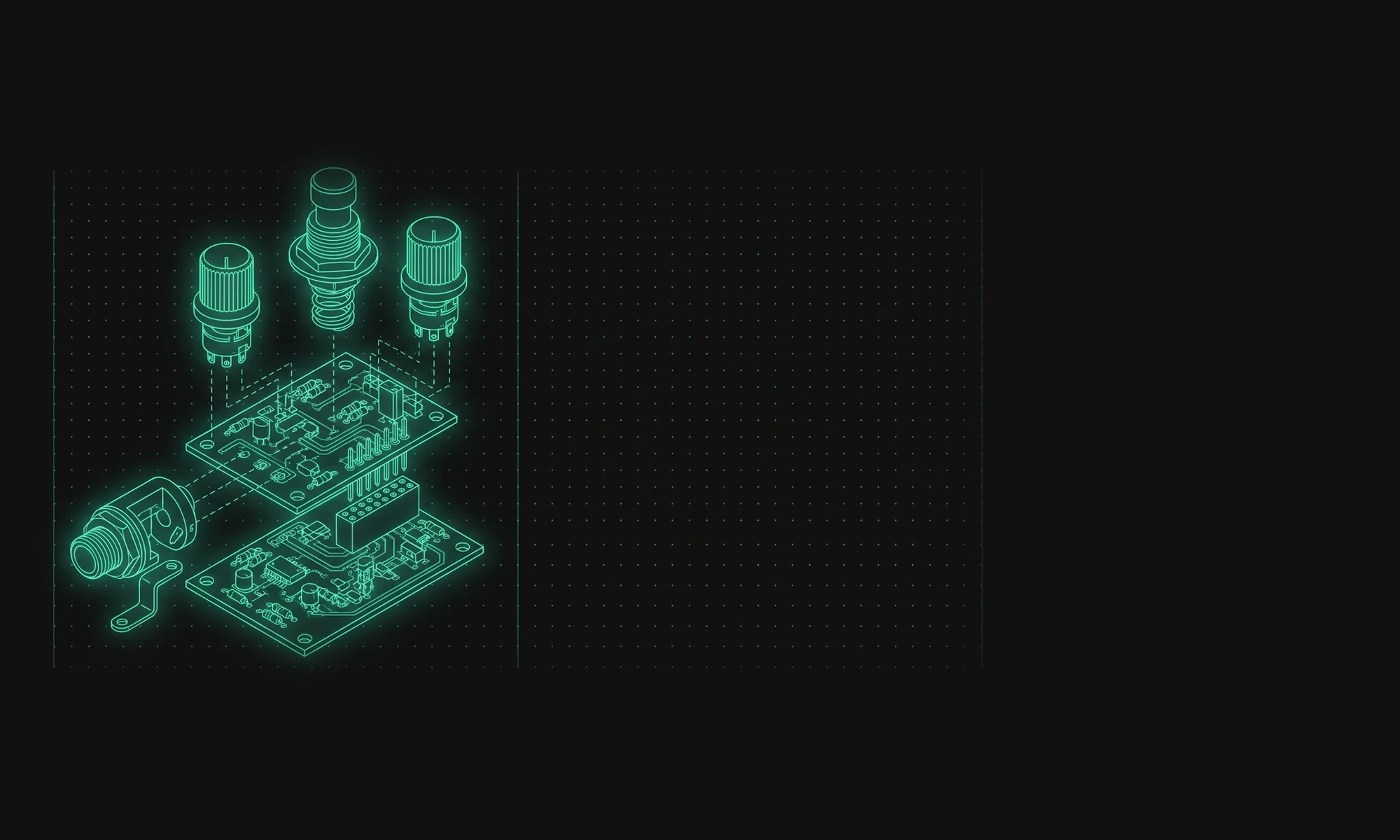

The audio board carried the input buffer, octave filter, tone stages, and output amplifier. It used OPA1652 and TL072 op-amps, a charge-pump supply for the higher analog rail, and a true-bypass relay. The second board held a STM32G0, three rotary encoders, indicator LEDs, and the footswitch interface. A short 10-pin FFC joined the boards.

The pedal designer asked the electronics designer to keep the audio input and output grounds close to their jack returns. The control board carried the digital signals, but its switching edges could not cross the analog input section. The four-layer audio board measured 82 by 48 millimeters; the two-layer control board was 68 by 34. The BOM kept audio components and control parts in separate assembly groups.

The Flux agent developed the schematic and board placements from the pedal's signal requirements. The pedal designer reviewed the op-amp datasheets, checked the charge-pump ratings, and confirmed the FFC pin map. She used design rule checks on both boards and compared the audio-stage simulation with the intended frequency response. A resistor value changed by hand after the first listen test.

Put the controls where a player can reach them

The enclosure was a standard Hammond 1590B die-cast aluminum case, 112 by 60 by 31 millimeters externally. The top needed three 7-millimeter encoder shafts, a 12-millimeter footswitch hole, and two indicator windows. The sides carried 6.35-millimeter input and output jacks plus a 2.1-millimeter power socket.

The mechanical engineer imported the enclosure STEP model and the supplier's drill drawing. The first assembly placed the footswitch board below the audio board, but the relay body overlapped the footswitch nut by 1.8 millimeters. The mechanical engineer moved the control board toward the top edge and changed its standoff positions. He added two 2.5-millimeter nylon standoffs to support the FFC connector during footswitch operation.

The side-jack washers needed a flat surface inside the casting. The mechanical engineer checked their jack nuts, the wall thickness, and the cable bends with the enclosure in 3D. He moved the input jack 3 millimeters toward the rear and rotated the power jack so its barrel cleared the control board. The footswitch sat 9 millimeters from the lower edge, with enough room for a boot and the lock washer.

The pedal designer wanted the case lid to close without compressing the FFC or touching the tallest capacitor. The X-ray view showed 1.4 millimeters above the capacitor and 2.1 millimeters over the FFC bend. The team moved the capacitor 4 millimeters and added a guide slot to keep the cable below the lid. The final board stack kept the analog section above the jack terminals and the control board below the switches.

Three requests from the pedal assembly review

Split this octave-and-filter pedal into an analog audio board and a preset-control board. Keep the input buffer and output stage quiet, preserve true bypass, and connect the boards with a keyed 10-pin FFC.

Place the OPA1652, TL072, charge pump, and relay on the 82 by 48 millimeter audio board. Keep the input return beside its jack, and route the three encoder signals on the separate control board.

Use the Hammond 1590B STEP and drill drawing. Align three encoder shafts and the footswitch with the top artwork, clear both side-jack nuts, and show the FFC bend below the lid.

The first run could use the supplier's existing case

The pedal designer and the mechanical engineer finished the connected review in an afternoon. They checked the circuit stages, control-board interface, drill coordinates, jack nuts, footswitch motion, and lid clearance. The Flux agent kept the BOM and board views aligned as the mechanical engineer changed the standoffs. The pedal designer approved the analog ground route and the switch behavior.

The pedal's electronics package included the four-layer audio PCB, two-layer control PCB, OPA1652, TL072, STM32G0, true-bypass relay, FFC, jacks, and footswitch. Its mechanical package included the 1590B case, top and bottom covers, encoder openings, side-jack cutouts, and board supports. The manufacturer received Gerbers, BOM, pick-and-place files, drill coordinates, and a STEP assembly.

The assembly technician installed the boards without bending the FFC around the capacitor. All controls lined up with the supplier's artwork, the input and output plugs could be tightened, and the lid closed without pressure on the boards. the maker could use its normal die-cast case and drill process instead of commissioning a custom enclosure for the pedal.

The pedal designer added a board-to-case drawing to the product release. It showed the connector orientation, jack nut clearance, and the FFC route. The manufacturing team could repeat the assembly without relying on a photo of the first unit. A later preset revision could change the control board while the analog stages remained unchanged.

The assembly sheet also called out the order for securing the audio PCB, clipping in the control board, and tightening the side jacks before closing the lid.

A pedal-in-a-case checklist

• Separate sensitive audio stages from digital controls before arranging the boards.
• Check op-amp, charge-pump, relay, and connector ratings against their datasheets.
• Import the actual die-cast case and drill drawing before fixing board outlines.
• Verify jack nuts, footswitch travel, encoder alignment, FFC bends, and lid clearance.
• Provide support for small daughter boards and cable connectors.
• Export both board packages and the case drawing under one product revision.
