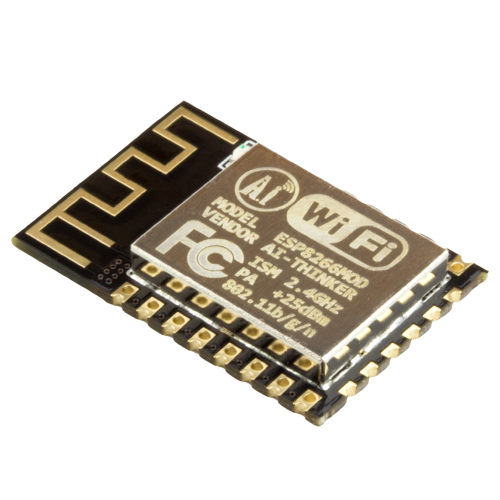

Schematic Symbol for ESP-12F: WiFi 802.11b/g/n Transceiver Module...

Chat

Welcome to Flux

Treat Flux like your intern. Tell it what you'd like to build and it'll get to work. You can also ask it questions, brainstorm ideas, and teach it your preferences. Learn More

Explain project

Write a project description

Find schematic issues

Create a test plan

Operating conditions

Verify Part Details

Part Specifications

Recommend similar parts

Ready.

what will be the pull up ressitor value for the SCl SDA line for this IC

sona

@copilot what will be the pull up ressitor value for the SCl SDA line for this IC

copilot

As your project uses an ESP-12F module and SDA/SDC lines generally refer to I2C interface, and since the ESP-12F implements I2C communication but the pull-up resistor values are not directly mentioned in the module datasheet, we can consider the standards for I2C communication.

Standard I2C devices operate at relatively low speed (100kHz-400kHz) and typically use a pull-up resistor of 4.7kΩ to 10kΩ. If you are using a fast-mode (1MHz) or high-speed (3.4MHz) I2C device, you might need lower values, such as 2.2kΩ - 3.3kΩ. However, you should always refer to the specifications of your specific I2C device or experiment to find the optimal value.

Please note that the actual value can depend on several factors including the supply voltage, bus speed, capacitance of the bus, and the total number of devices connected to the bus. Therefore, it is always a good idea to check with the specific details for the device and possibly do some experimentation to determine the exact value that works best in your specific setup.

sona

explain gpio4 an dgpio5

copilot

GPIO stands for General Purpose Input/Output. GPIO pins on a microcontroller are a basic feature used for communication between different electronic components. In ESP-12F, like many other development boards, these pins can be programmed to function as input or output, and used for a wide range of purposes.

Here is some information about GPIO4 and GPIO5:

GPIO4: It's a general-purpose IO where you can connect peripheral devices like sensors and use it for reading data or controlling output from an ESP-12F. It can source or sink a decent amount of current, up to around 12mA.
GPIO5: Just like GPIO4, GPIO5 can also be used as a general-purpose input/output pin. GPIO5 can be used to interface with sensors, LEDs, switches, or other components.

These GPIO pins can also be used in different protocols (I2C, SPI) if setup correctly, however, this might depend on the specific use-case.

You should configure them as inputs or outputs depending on your needs. If configured as inputs, you can read the state of a button, for example. If configured as outputs, you can drive a LED or a relay, for example.

Always remember to be mindful of the current that you're drawing from your ESP-12F device, and never exceed any pin's maximum current capacity.

Someone is typing...

Describe the functionality of each pin

sona

@copilot Describe the functionality of each pin

copilot

Sure, here is a rough approximation of how each pin on the ESP-12F module operates:

VCC: This is the power supply pin. It should be connected to a 3.3V power source.
GND: This is the ground pin. It should be connected to the ground of your power supply.
EN: This is the chip enable pin. Keep it on high (3.3V) for normal operation. When pulled down to ground, it shuts down the chip, allowing it to use less power.
RST: The reset pin. Connect to ground to reset the module. Normally it should be held high.
TXD0: This is the transmit pin of the built-in UART. Data sent from the ESP8266 to an external device will come out from this pin.
RXD0: This is the receive pin of the built-in UART. Data sent to the ESP8266 from an external device goes into this pin.
ADC: This is the analog to digital converter input pin. It measures voltage from 0 to 1V.
GPIO0-16: These are general purpose input/output pins. They can be used for a variety of functions, including digital read/write or as an SPI and I2C interface.

Some GPIO pins have special functions:
- GPIO0 and GPIO2 have internal pull-ups and are used to set the boot mode.
- GPIO15 has an internal pull-down and is used to set the boot mode.
- GPIO16 can be used to wake up from deep sleep.
MISO: This is the SPI Master-In-Slave-Out pin. It's used when the ESP-12F acts as an SPI slave.
MOSI: This is the SPI Master-Out-Slave-In pin. It's used when the ESP-12F acts as an SPI slave.
SCLK: This is the SPI Clock pin.
CS0: This is the SPI Chip Select pin.

It's important to note that not all pins are 5V tolerant: applying more than 3.6V to any pin can damage the chip.

Remember to always refer to the manufacturer’s data sheet, which is the ultimate source of information about your part, as it could have specific instructions about how to use pins that are not covered in this summary. You can find the datasheet for the ESP-12F here: ESP-12F Datasheet

Someone is typing...

I am using GPIO 15 as CS pin for HSPI from the mikroe connector. But it should ...

sona

@copilot I am using GPIO 15 as CS pin for HSPI from the mikroe connector. But it should be grounded during the boot process. How can I do this?

copilot

It's true, GPIO15 (also known as MTDO) on ESP-12F needs to be pulled low during boot. Otherwise, it may interfere with booting process. To meet both requirements (use as a CS pin and ground at boot), you could use a pull-down resistor connected to GPIO15.

Here's how you could do it:

Connect a 10K ohm resistor (you might adjust the value as per your requirements) between GPIO15 (designator: GPIO15) and the ground (designator: GND).
This keeps the GPIO15 low during boot and ensures the correct boot mode.
Once the ESP-12F is booted, the IO pin (GPIO15) can be used as the chip select (CS) pin for your HSPI interface.

Remember, this pull-down resistor is necessary only for booting process. Once the ESP-12F has booted up, GPIO15 can be dynamically controlled without any issues.

Source(s):

https://docs.flux.ai/ https://www.flux.ai/p/blog

sona

but if that is pulled low than how will iy act like CS pin. will it not be pulled low always

copilot

The chip select (CS) pin will not always be low. Although the pull-down resistor will bring the GPIO15 to low level during boot, the ESP32's GPIOs are able to "override" this after bootup. This means, once the system starts, the I/O pin will function as a normal GPIO.

When the ESP32 wants to interact with the target device, it will bring the GPIO15 (CS) pin low (active). But when the ESP32 is communicating with another device, or not communicating at all, the GPIO15 (CS) pin will remain high (inactive) due to the internal pull-up within the ESP32 (provided you've configured it that way in the code).

So, in essence, the pull-down resistor only affects the state of the GPIO at boot and does not interfere with the normal operation of the GPIO15 as a CS pin. This is how the GPIO15 can act as a CS pin effectively even when it is pulled low during boot.

Source(s):

https://www.flux.ai/p/blog/esp32-pinout-everything-you-need-to-know https://www.flux.ai/p/projects

sona

so can i pull gpio15 to low through the pull down resitor mean while connect CS label to it?

copilot

Yes, you can use GPIO15 as a chip select (CS) line while it is also pulled to ground through a pull down resistor. Here is why:

When the ESP32 boots, the pull down resistor on GPIO15 ensures that it starts low, which is necessary for the boot process. However, after boot, the state of GPIO15 can be controlled programmatically.

In your case, if you want to use GPIO15 as a CS line, it would typically be high (inactive) when you're not communicating with the peripheral, and you would pull it low (active) when you want to start a data transfer. The pull-down resistor doesn't prevent you from driving the line high when you want to deactivate the CS line. The internal driver of the ESP32's GPIO pin is strong enough to "override" the pull-down resistor.

Remember to ensure that your code appropriately manages the state of the GPIO15 line during the SPI communication. For example, you might want to use digitalWrite(15, HIGH); to leave the CS line inactive when not in use, and digitalWrite(15, LOW); when you want to communicate with the SPI device.

Source(s):

https://www.flux.ai/p/blog/esp32-pinout-everything-you-need-to-know https://www.flux.ai/p/projects https://www.flux.ai/p/blog/esp32-pinout-everything-you-need-to-know https://www.flux.ai/p/projects https://docs.flux.ai/faq https://www.flux.ai/p/blog/generative-ai-for-hardware-design
