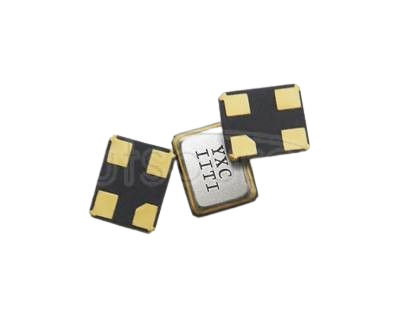

X201632MOB4SI
Controls
Properties
Manufacturer Name
YXC(ζ¬ε
΄ζΆζ―)
Designator Prefix
X
Manufacturer Part Number
X201632MOB4SI
LCSC Part Number
Package or Case Code
CRYSTAL-SMD_4P-L2.0-W1.6-BL-2
Part Type
Crystals
JLCPCB Part Class
Extended Part
Frequency
3 Hz
Crystal Type
Surface Mount Crystal
Load Capacitor
12pF
Assets
- X201632MOB4SI/X201632MOB4SI.pretty/CRYSTAL-SMD_4P-L2.0-W1.6-BL-2.kicad_mod
id=X201632MOB4SI/X201632MOB4SI Footprint
X201632MOB4SI Symbol.svgid=X201632MOB4SI Symbol
- X201632MOB4SI.png
id=X201632MOB4SI
- X201632MOB4SI/X201632MOB4SI.3dshapes/CRYSTAL-SMD_4P-L2.0-W1.6-BL-2.step
id=X201632MOB4SI/X201632MOB4SI Model
Footprint
Default
Thumbnail
3d Model
