Inspect

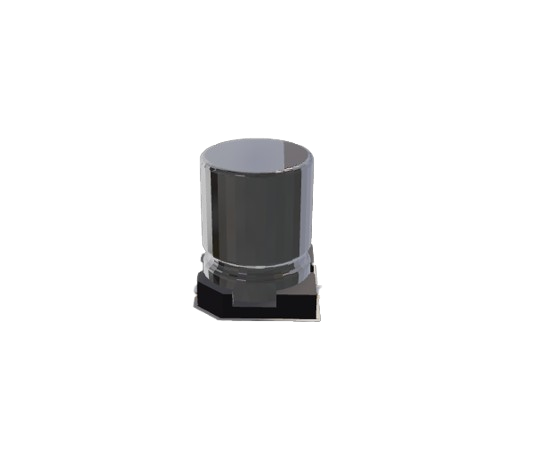

RVT1C100M0405 10UF 16V

RVT1C100M0405 10UF 16V
Description

Created
Last updated by adrian95
2 Contributor(s)
jharwinbarrozo
adrian95

Controls

Properties

Manufacturer Name
DMBJ(振宝佳)
Designator Prefix
C
Manufacturer Part Number
RVT1C100M0405 10UF 16V
Package or Case Code
CAP-SMD_BD4.0-L4.3-W4.3-LS5.0-FD
Part Type
Aluminum Electrolytic Capacitors - SMD
JLCPCB Part Class
Extended Part
Capacitance
10u F

Availability & Pricing

DPNStockQty 1
12.8K$0.0292
