Inspect

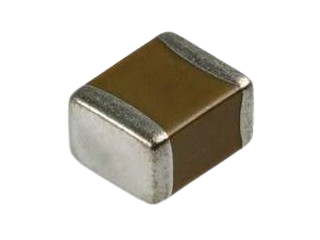

FV43X104K102EGG

FV43X104K102EGG
Description

Created
Last updated by adrian95
3 Contributor(s)
jharwinbarrozo
adrian95
natarius

Controls

Properties

Manufacturer Name
PSA
Designator Prefix
C
Manufacturer Part Number
FV43X104K102EGG
Package or Case Code
C1812
Part Type
Multilayer Ceramic Capacitors MLCC - SMD/SMT
JLCPCB Part Class
Extended Part
Capacitance
100n F
Voltage Rating
1k V
Tolerance
±10 %
Capacitor Type
Multilayer Ceramic Capacitor (MLCC)

Availability & Pricing

DPNStockQty 1
23–54K$0.1235–$0.1642
