Inspect

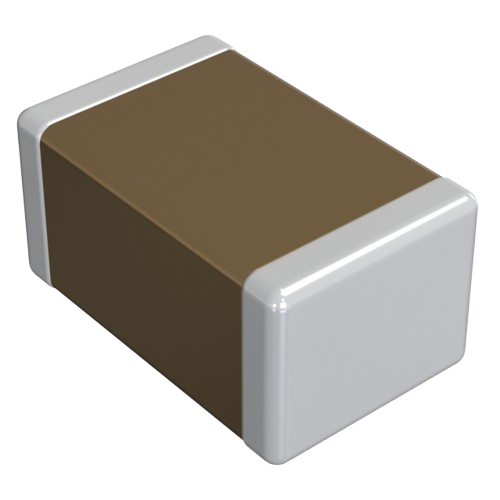

FS55X106K101EHG

FS55X106K101EHG
Description

Created
Last updated by adrian95
2 Contributor(s)
jharwinbarrozo
adrian95

Controls

Properties

Manufacturer Name
PSA(信昌电陶)
Designator Prefix
C
Manufacturer Part Number
FS55X106K101EHG
Package or Case Code
C2220
Part Type
Multilayer Ceramic Capacitors MLCC - SMD/SMT
JLCPCB Part Class
Extended Part
Voltage Rating
100 V
Capacitance
10u F
Tolerance
±10 %

Availability & Pricing

DPNStockQty 1
158K$0.4294

Assets
