Inspect

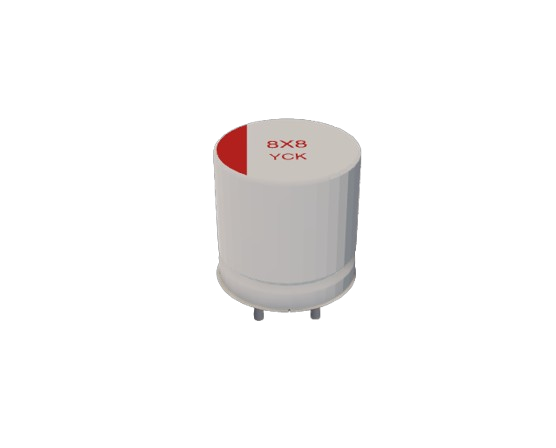

ERF1JM101F12OT

ERF1JM101F12OT
Description

Created
Last updated by adrian95
2 Contributor(s)
jharwinbarrozo
adrian95

Controls

Properties

Manufacturer Name
AISHI(艾华集团)
Designator Prefix
C
Manufacturer Part Number
ERF1JM101F12OT
Package or Case Code
CAP-TH_BD8.0-P3.50-D0.6-FD
Part Type
Aluminum Electrolytic Capacitors - Leaded
JLCPCB Part Class
Extended Part
Capacitance
100u F

Availability & Pricing

DPNStockQty 1
127K$0.0538

Assets
