Conexiones PIC a Pines Through-Hole

rair

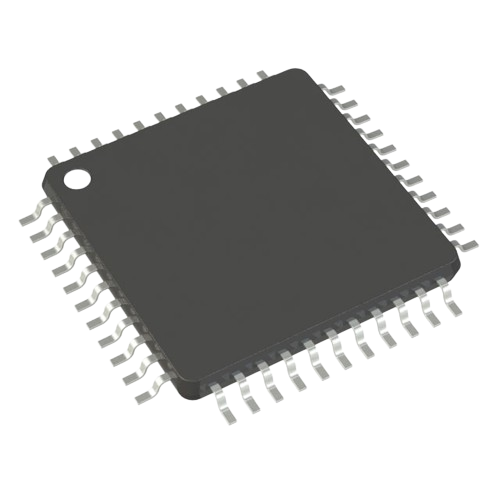

SACAR LINEAS DE CONECCION DEL PIC A PINES TRU HOLD

11 days

flux

0:22

Crafting project details.

Sí, se puede hacer, pero no puedo modificar este proyecto directamente porque aquí no tienes permiso de edición.

Para “sacar” las señales del microcontrolador a pines through-hole, la forma correcta en Flux es trabajar el proyecto como un part project: añadir terminales para los pines que quieras exponer y mantener el número de pin exactamente igual al datasheet; no se deben adivinar números ni nombres de pin

Te dejo un fork listo para abrir y seguir en tu propia copia:

Fork del proyecto para sacar pines a through-hole

Si quieres, también te puedo indicar qué opción conviene más en esa copia:

exponer todos los pines
solo GPIO
solo alimentación, reset y programación
ponerlos en headers de 1xN / 2xN through-hole

Agregar pines THT

Usar header 2.54mm

Revisar RD3
