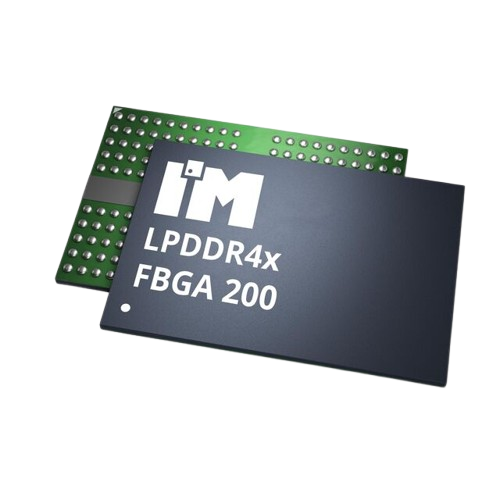

IM8G32L4JCBG-046I
SDRAM - Mobile LPDDR4X Memory IC 8Gbit Parallel 2.133 GHz 200-FBGA (10x15)
The IM8G32L4JCBG-046I is an 8Gb (1GB) LPDDR4X SDRAM memory device designed for high-performance, low-power embedded applications. Organized as 256M × 32 bits, it delivers data rates up to 4266 MT/s, making it suitable for industrial computing, AI edge devices, networking equipment, automotive systems, and other memory-intensive applications. The LPDDR4X architecture reduces power consumption while maintaining high bandwidth and reliable operation across industrial temperature ranges.
Key Features
8Gb (Gigabit) LPDDR4X SDRAM
Memory organization: 256M × 32 bits
High-speed operation up to 4266 MT/s
Low-power LPDDR4X interface for reduced energy consumption
32-bit data bus width
Industrial operating temperature range: –40°C to +95°C
200-ball FBGA package (10 mm × 15 mm)
High bandwidth for demanding embedded applications
Optimized for low-power and thermally constrained designs
Suitable for industrial, automotive, networking, and edge AI systems
Properties
Intelligent Memory
IC
IM8G32L4JCBG-046I
BGA200C65P12X22_1000X1500X100
Integrated Circuit / Memory
2.133G
Hz
-40°C ~ 95°C (TC)
parametric-v1
