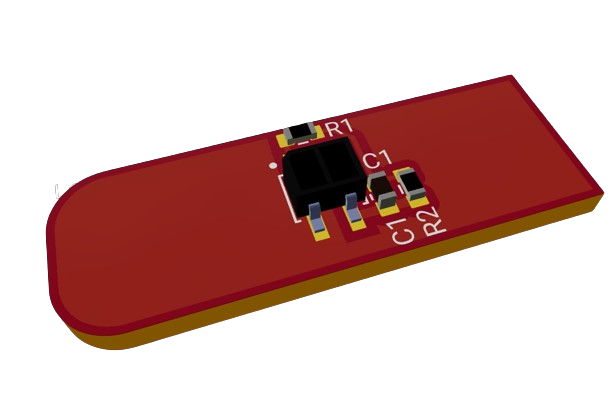

This project describes a circuit involving a QRE1113 opto-reflective sensor module commonly used for industrial sensing applications.
Here are the main components and characteristics
Opto-Reflective Sensor (IC1): It's the key element in the circuit, which is essentially a phototransistor paired with an infrared LED.
Resistors (R1 and R2): The project uses a 47KΩ (R2) pull-up resistor for the sensor output and a 100Ω (R1) resistor, most likely for current limiting.
Capacitor (C1): A 1µF capacitor aids in stability, likely smoothing out power supply noise and decoupling.
Power Supply (VCC): The power input to the circuit is designed to connect via a JST connector.
Output (OPTO_OUT): The processed signal is available at OPTO_OUT.
Under normal circumstances, the sensor's phototransistor allows current based on the amount of light it receives from its paired infrared LED. When an object is nearby, it reflects more light towards the phototransistor, resulting in more current being allowed.
Here's how these components are connected:
Both R1 and R2 are connected to VCC on one side.
The other pin of R1 is connected to one pin of the Opto-Reflective Sensor.
The other pin on R2 is connected to another leg of the Opto-Reflective Sensor, and that point serves as the output (OPTO_OUT) of the circuit.
OPTO_OUT is additionally connected to a capacitor, which is then grounded.
Please note that for the Opto-Reflective Sensor (IC1), the pin names have not been specified. Therefore, I'm assuming a standard configuration where the LED is powered through a current limiting resistor (R1) and the phototransistor is pulled up with R2 to create a digital output. Always refer to the specific datasheet for correct connection guidance.
This project further mentions a license link confirming it's made under the creative commons license and specifies that the components VCC, OPTO_OUT, GND are to be excluded from the Bill of Materials (BOM) and PCB.
