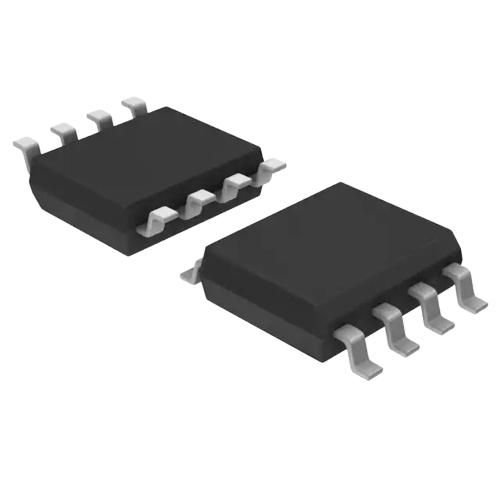

OPA2197IDR
10MHz 5pA Dual channel SOIC-8 Precision Op Amps ROHS
OPA2197IDR
SOIC-8_L4.9-W3.9-P1.27-LS6.0-BL
LCSC Part Number: C139363
JLCPCB Part Class: Extended Part
Manufactured by TI(德州仪器)
Properties
TI(德州仪器)
U
OPA2197IDR
SOIC-8_L4.9-W3.9-P1.27-LS6.0-BL
Precision OpAmps
Extended Part
10M
Hz
1mA (x2 Channels)
A
65mA
A
36
V
-40°C ~ 125°C
