Inspect

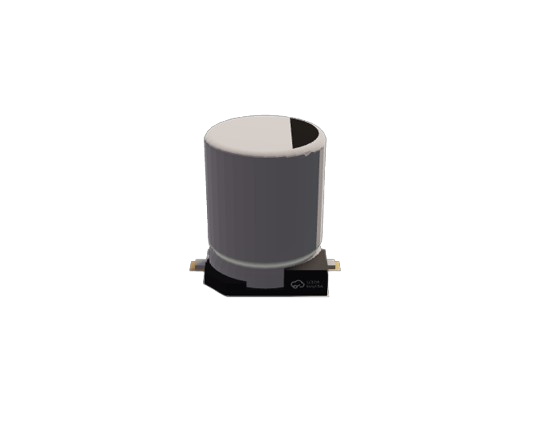

EEEHA1C471UP

EEEHA1C471UP
Description

Created
Last updated by adrian95
2 Contributor(s)
jharwinbarrozo
adrian95

Controls

Properties

Designator Prefix
C
Manufacturer Part Number
EEEHA1C471UP
Package or Case Code
CAP-SMD_BD8.0-L8.3-W8.3-FD
Part Type
Aluminum Electrolytic Capacitors - SMD
Capacitance
470u F
JLCPCB Part Class
Extended Part

Availability & Pricing

DPNStockQty 1
10$0.3587
