CL05A475KP5NRNC

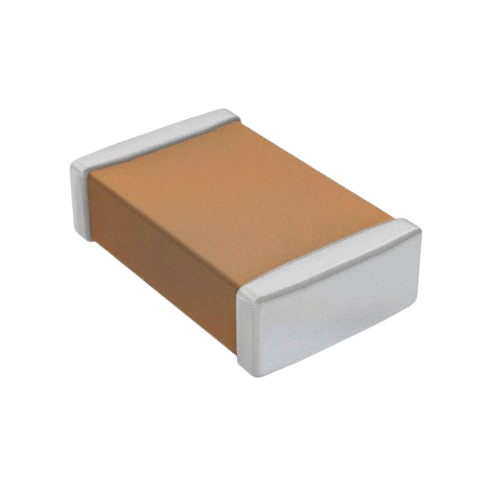

CL05A475KP5NRNC thumbnail
Multilayer Ceramic Capacitors MLCC - SMD/SMT CL05A475KP5NRNC C0402 LCSC Part Number: C368809 JLCPCB Part Class: Extended Part Manufactured by SAMSUNG(三星)

Properties

SAMSUNG(三星)

C

lcsc.com/datasheet/lcsc_datasheet_2304140030_Samsung-Electro-Mechanics-CL05A475KP5NRNC_C368809.pdf

CL05A475KP5NRNC

C368809

lcsc.com/product-detail/Others_Samsung-Electro-Mechanics-CL05A475KP5NRNC_C368809.html

C0402

Multilayer Ceramic Capacitors MLCC - SMD/SMT

Extended Part

4.7u

F

10

V

±10

%

Multilayer Ceramic Capacitors MLCC
