  • RMCF0805JT47K0
    RMCF0805JT47K0
    General Purpose Thick Film Standard Power and High-Power Chip Resistor 47 kOhms ±5% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Automotive AEC-Q200 Thick Film Features: - RMCF – standard power ratings - RMCP – high power ratings - Nickel barrier terminations standard - Power derating from 100% at 70ºC to zero at +155ºC - RoHS compliant, REACH compliant, and halogen free - AEC-Q200 compliant
    jharwinbarrozo
    1.2M
  • 875105359001
    875105359001
    10 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 30mOhm 2000 Hrs @ 105°C #commonpartslibrary #capacitor #aluminumpolymer #radialcan
    jharwinbarrozo
    1.2M
  • CTL1206FYW1T
    CTL1206FYW1T
    Yellow 595nm LED Indication - Discrete 1.7V 1206 (3216 Metric)
    jharwinbarrozo
    1.1M

BWSMA-KE-P001

BWSMA-KE-P001 thumbnail

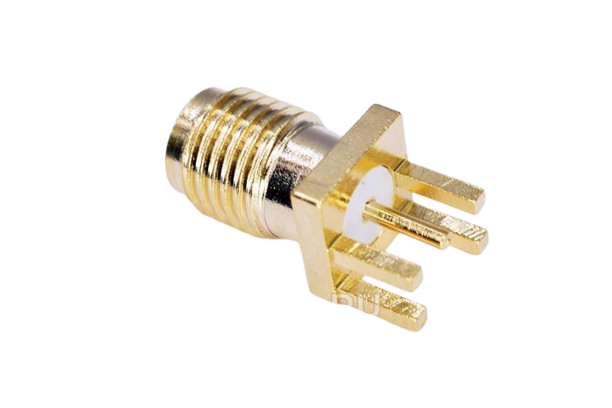

1 Inner Hole SMA Board-End Staggered pins 50Ω 5.2mm SMD ROHS RF Connectors / Coaxial Connectors BWSMA-KE-P001 SMA-SMD_BWSMA-KE-P001 LCSC Part Number: C496550 JLCPCB Part Class: Extended Part Manufactured by BAT WIRELESS(蝙蝠无线)

Properties

BAT WIRELESS(蝙蝠无线)

RF

lcsc.com/datasheet/lcsc_datasheet_2403201208_BAT-WIRELESS-BWSMA-KE-P001_C496550.pdf

BWSMA-KE-P001

C496550

lcsc.com/product-detail/New-Arrivals_BAT-WIRELESS-BWSMA-KE-P001_C496550.html

SMA-SMD_BWSMA-KE-P001

RF Connectors / Coaxial Connectors

Extended Part

Board-End

50Ω

5.2mm
