B3B-XH-A(LF)(SN)

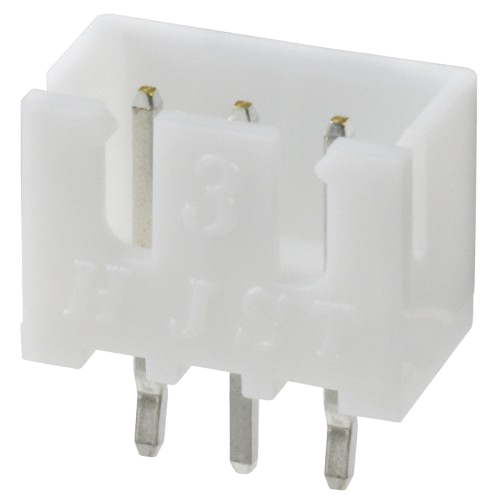

1x3P 3P XH Tin 3 -25℃~+85℃ 3A 1 2.5mm Brass Direct Insert Plugin,P=2.5mm Wire To Board Connector ROHS
B3B-XH-A(LF)(SN)
CONN-TH_3P-P2.50_A2501WV2-3P
LCSC Part Number: C144394
JLCPCB Part Class: Extended Part
Manufactured by JST
Properties
JST
U
B3B-XH-A(LF)(SN)
CONN-TH_3P-P2.50_A2501WV2-3P
Wire To Board / Wire To Wire Connector
Extended Part
Headers and Wire Housings
2.50
mm
3
1
-25°C ~ 85°C
3
A
250
V
