I reviewed the available part metadata and the blocker is the part identity itself:

Current part metadata

Field	Value
Project name / description	RES
MPN	RES
Manufacturer	Not set
Datasheet	Not set

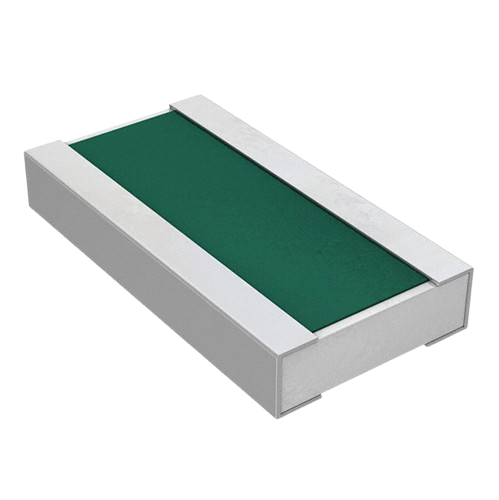

Part type	Resistors
Symbol	2-pin generic terminal-style symbol
PCB land pattern	Generic 2-pad footprint

What I found

There is no official datasheet I can confidently attach from the current metadata.
Web results for "RES" resolve to generic resistor listings and unrelated resistor families, not one uniquely identifiable manufacturer part.
The project review also reports:
- Manufacturer Name is not set
- Datasheet is not set

I can update the Datasheet property for you, but I need a uniquely identifiable part first, such as:

exact manufacturer
full MPN
exact package / size such as 0402, 0603, 0805, 1206
or a product page / official datasheet link

With only RES, attaching any datasheet would risk linking the wrong part.
