Pin Function Grouping

1:31

Considering file search options.

Looking for "For the STM32G031J6M6 SO8 package, list the pin numbers, pin names, and primary functions. I need the package-specific pinout for the 8-pin package." in stm32g031c6.pdf

Looking for "For the STM32G031J6M6 SO8 package, identify all power pins, ground pins, reset pins, debug/programming pins, clock pins, boot pins, and GPIO pins with their pin numbers." in stm32g031c6.pdf

Yes — using the SO8 package pinout from the datasheet, the clean non-duplicated functional grouping is:

Pin Groups

Group	Pins
Power	Pin 2: VDD/VDDA
Ground	Pin 3: VSS/VSSA
Reset / Control	Pin 4: PF2-NRST
Boot / Debug Clock	Pin 8: PA14-BOOT0
Debug Data	Pin 7: PA13
GPIO / Peripheral I/O	Pin 1: PB8
GPIO / Peripheral I/O	Pin 5: PA11[PA9]
GPIO / Peripheral I/O	Pin 6: PA12[PA10]

Notes

I did not repeat pins across groups, per your rule.
So even though some pins are multifunction:
- Pin 8 could be treated as both BOOT0 and SWCLK, but I placed it once under Boot / Debug Clock.
- Pin 7 is PA13 / SWDIO, so I placed it once under Debug Data.
- Pin 4 can also act as other GPIO options in the broader family/package mapping, but for this variant pinout it is best grouped as Reset / Control.
This follows the general grouping rule of assigning each pin to one functional bucket only, with power and ground isolated into dedicated groups

Suggested terminal names

If you want names in the style you gave, I’d use:

Table

Pin	Suggested Name
2	`3v3`
3	`gnd`
4	`nrst`
8	`boot0_swdclk`
7	`swdio`
1	`pb8`
5	`pa11_pa9`
6	`pa12_pa10`

If you want, I can next turn this into a Section + Pin Group + Pin Type table for all 8 pins so you can apply it directly to the part.

Create pin table

Refine power labels

Check datasheet naming

13 days

millan

necesito ayuda con los componentes

HOLA

Something went wrong, sorry. Please try again.

millan

copilot

Something went wrong, sorry. Please try again.

Someone is typing...

Is this schematic correct?

chicky-cyan-wilhuff-tarkin959509

@copilot Is this schematic correct?

Someone is typing...

explain this project.

stevenbc

@copilot explain this project.

copilot

This project involves designing a schematic using the STM32G031J6M6 microcontroller, which is part of the STM32G0 series from STMicroelectronics. The STM32G031J6M6 is based on the ARM® Cortex®-M0+ core, running at up to 64 MHz, and includes 32KB of FLASH memory packaged in an 8-SOIC format. It's designed for a wide range of applications, including but not limited to, general-purpose embedded applications.

The project is licensed under the Creative Commons Attribution 4.0 International license, as indicated by the provided link, and adheres to using components from STMicroelectronics. The designator prefix "U" is mentioned for use in identifying components, typically used for integrated circuits.

Here's a breakdown of the components listed in the schematic:

PB0/PB1/PA8/PA11: These are designated as pins with unspecified terminal and pin types. They represent various GPIO (General-Purpose Input/Output) pins on the microcontroller, with each having a specific functionality depending on the application's requirements.
VSS/VSSA: These pins are for the ground connection (VSS) and analog ground (VSSA), indicating the project includes both digital and analog functionalities.
PA13: Another GPIO pin, which can also serve special functions such as debugging (SWDIO) depending on the application's setup.
PB7/PB8/PB9/PC14-OSC32_IN: Pins with multiple functions, including GPIO and possibly connections for an external 32.768 kHz crystal oscillator (OSC32_IN).
PF2-NRST/PA0/PA1/PA2: Includes the NRST (reset) pin and additional GPIO pins. The NRST pin is critical for initializing the microcontroller.
VDD/VDDA: These are the power supply pins for the digital (VDD) and analog (VDDA) sections of the microcontroller, indicating the project's need to separate power domains for noise reduction.
PA14-BOOT0/PA15/PB5/PB6: Pins with multiple functionalities including BOOT0, which is used to select the boot space of the microcontroller (main flash memory, system memory, or embedded SRAM).
PA12: Another GPIO pin for general use within the project.

Currently, no electrical connections have been defined in the project, suggesting it's in an initial design phase. The next steps would involve planning and establishing connections between these pins and other components (whether they are external or internal to the microcontroller) to fulfill the project's specific functions and requirements. For instance, defining power supply connections, configuring GPIO pins for input or output functionalities, setting up any necessary peripheral devices, and ensuring proper grounding and reset mechanisms are in place.

Someone is typing...

Reviews

Ground
A common return path for electric current. Commonly known as ground.
jharwinbarrozo
20.5M
Net Portal
Wirelessly connects nets on schematic. Used to organize schematics and separate functional blocks. To wirelessly connect net portals, give them same designator. #portal
jharwinbarrozo
43.0M
Power Net Portal
Wirelessly connects power nets on schematic. Identical to the net portal, but with a power symbol. Used to organize schematics and separate functional blocks. To wirelessly connect power net portals, give them the same designator. #portal #power
jharwinbarrozo
11.4M
Generic Resistor
A generic fixed resistor ideal for rapid circuit topology development. Its footprint automatically adapts based on the selected package case code—supporting 0402, 0603, 0805, 1203, and many other standard SMD packages, as well as axial horizontal and vertical configurations. Save precious design time by seamlessly add more information to this part (value, footprint, etc.) as it becomes available. Standard resistor values: 1.0 ohm, 10 ohm, 100 ohm, 1.0k ohm, 10k ohm, 100k ohm, 1.0M ohm 1.1 ohm, 11 ohm, 110 ohm, 1.1k ohm, 11k ohm, 110k ohm, 1.1M ohm 1.2 ohm, 12 ohm, 120 ohm, 1.2k ohm, 12k ohm, 120k ohm, 1.2M ohm 1.3 ohm, 13 ohm, 130 ohm, 1.3k ohm, 13k ohm, 130k ohm, 1.3M ohm 1.5 ohm, 15 ohm, 150 ohm, 1.5k ohm, 15k ohm, 150k ohm, 1.5M ohm 1.6 ohm, 16 ohm, 160 ohm, 1.6k ohm, 16k ohm, 160k ohm, 1.6M ohm 1.8 ohm, 18 ohm, 180 ohm, 1.8K ohm, 18k ohm, 180k ohm, 1.8M ohm 2.0 ohm, 20 ohm, 200 ohm, 2.0k ohm, 20k ohm, 200k ohm, 2.0M ohm 2.2 ohm, 22 ohm, 220 ohm, 2.2k ohm, 22k ohm, 220k ohm, 2.2M ohm 2.4 ohm, 24 ohm, 240 ohm, 2.4k ohm, 24k ohm, 240k ohm, 2.4M ohm 2.7 ohm, 27 ohm, 270 ohm, 2.7k ohm, 27k ohm, 270k ohm, 2.7M ohm 3.0 ohm, 30 ohm, 300 ohm, 3.0K ohm, 30K ohm, 300K ohm, 3.0M ohm 3.3 ohm, 33 ohm, 330 ohm, 3.3k ohm, 33k ohm, 330k ohm, 3.3M ohm 3.6 ohm, 36 ohm, 360 ohm, 3.6k ohm, 36k ohm, 360k ohm, 3.6M ohm 3.9 ohm, 39 ohm, 390 ohm, 3.9k ohm, 39k ohm, 390k ohm, 3.9M ohm 4.3 ohm, 43 ohm, 430 ohm, 4.3k ohm, 43K ohm, 430K ohm, 4.3M ohm 4.7 ohm, 47 ohm, 470 ohm, 4.7k ohm, 47k ohm, 470k ohm, 4.7M ohm 5.1 ohm, 51 ohm, 510 ohm, 5.1k ohm, 51k ohm, 510k ohm, 5.1M ohm 5.6 ohm, 56 ohm, 560 ohm, 5.6k ohm, 56k ohm, 560k ohm, 5.6M ohm 6.2 ohm, 62 ohm, 620 ohm, 6.2k ohm, 62K ohm, 620K ohm, 6.2M ohm 6.8 ohm, 68 ohm, 680 ohm, 6.8k ohm, 68k ohm, 680k ohm, 6.8M ohm 7.5 ohm, 75 ohm, 750 ohm, 7.5k ohm, 75k ohm, 750k ohm, 7.5M ohm 8.2 ohm, 82 ohm, 820 ohm, 8.2k ohm, 82k ohm, 820k ohm, 8.2M ohm 9.1 ohm, 91 ohm, 910 ohm, 9.1k ohm, 91k ohm, 910k ohm, 9.1M ohm #generics #CommonPartsLibrary
jharwinbarrozo
1.5M
Generic Capacitor
A generic fixed capacitor ideal for rapid circuit topology development. You can choose between polarized and non-polarized types, its symbol and the footprint will automatically adapt based on your selection. Supported options include standard SMD sizes for ceramic capacitors (e.g., 0402, 0603, 0805), SMD sizes for aluminum electrolytic capacitors, and through-hole footprints for polarized capacitors. Save precious design time by seamlessly add more information to this part (value, footprint, etc.) as it becomes available. Standard capacitor values: 1.0pF, 10pF, 100pF, 1000pF, 0.01uF, 0.1uF, 1.0uF, 10uF, 100uF, 1000uF, 10000uF 1.1pF, 11pF, 110pF, 1100pF 1.2pF, 12pF, 120pF, 1200pF 1.3pF, 13pF, 130pF, 1300pF 1.5pF, 15pF, 150pF, 1500pF, 0.015uF, 0.15uF, 1.5uF, 15uF, 150uF, 1500uF 1.6pF, 16pF, 160pF, 1600pF 1.8pF, 18pF, 180pF, 1800pF 2.0pF, 20pF, 200pF, 2000pF 2.2pF, 22pF, 220pF, 2200pF, 0.022uF, 0.22uF, 2.2uF, 22uF, 220uF, 2200uF 2.4pF, 24pF, 240pF, 2400pF 2.7pF, 27pF, 270pF, 2700pF 3.0pF, 30pF, 300pF, 3000pF 3.3pF, 33pF, 330pF, 3300pF, 0.033uF, 0.33uF, 3.3uF, 33uF, 330uF, 3300uF 3.6pF, 36pF, 360pF, 3600pF 3.9pF, 39pF, 390pF, 3900pF 4.3pF, 43pF, 430pF, 4300pF 4.7pF, 47pF, 470pF, 4700pF, 0.047uF, 0.47uF, 4.7uF, 47uF, 470uF, 4700uF 5.1pF, 51pF, 510pF, 5100pF 5.6pF, 56pF, 560pF, 5600pF 6.2pF, 62pF, 620pF, 6200pF 6.8pF, 68pF, 680pF, 6800pF, 0.068uF, 0.68uF, 6.8uF, 68uF, 680uF, 6800uF 7.5pF, 75pF, 750pF, 7500pF 8.2pF, 82pF, 820pF, 8200pF 9.1pF, 91pF, 910pF, 9100pF #generics #CommonPartsLibrary
jharwinbarrozo
1.5M
Generic Inductor
A generic fixed inductor suitable for rapid circuit topology development. The footprint automatically adapts based on the selected package, supporting standard SMD sizes (e.g., 0402, 0603, 0805) as well as well-known inductor packages such as SDR1806, PA4320, SRN6028, and SRR1260. Standard inductor values: 1.0 nH, 10 nH, 100 nH, 1.0 µH, 10 µH, 100 µH, 1.0 mH 1.2 nH, 12 nH, 120 nH, 1.2 µH, 12 µH, 120 µH, 1.2 mH 1.5 nH, 15 nH, 150 nH, 1.5 µH, 15 µH, 150 µH, 1.5 mH 1.8 nH, 18 nH, 180 nH, 1.8 µH, 18 µH, 180 µH, 1.8 mH 2.2 nH, 22 nH, 220 nH, 2.2 µH, 22 µH, 220 µH, 2.2 mH 2.7 nH, 27 nH, 270 nH, 2.7 µH, 27 µH, 270 µH, 2.7 mH 3.3 nH, 33 nH, 330 nH, 3.3 µH, 33 µH, 330 µH, 3.3 mH 3.9 nH, 39 nH, 390 nH, 3.9 µH, 39 µH, 390 µH, 3.9 mH 4.7 nH, 47 nH, 470 nH, 4.7 µH, 47 µH, 470 µH, 4.7 mH 5.6 nH, 56 nH, 560 nH, 5.6 µH, 56 µH, 560 µH, 5.6 mH 6.8 nH, 68 nH, 680 nH, 6.8 µH, 68 µH, 680 µH, 6.8 mH 8.2 nH, 82 nH, 820 nH, 8.2 µH, 82 µH, 820 µH, 8.2 mH #generics #CommonPartsLibrary
jharwinbarrozo
15.9k
Terminal
An electrical connector acting as reusable interface to a conductor and creating a point where external circuits can be connected.
natarius
RMCF0805JT47K0
General Purpose Thick Film Standard Power and High-Power Chip Resistor 47 kOhms ±5% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Automotive AEC-Q200 Thick Film Features: - RMCF – standard power ratings - RMCP – high power ratings - Nickel barrier terminations standard - Power derating from 100% at 70ºC to zero at +155ºC - RoHS compliant, REACH compliant, and halogen free - AEC-Q200 compliant
jharwinbarrozo
1.2M
875105359001
10 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 30mOhm 2000 Hrs @ 105°C #commonpartslibrary #capacitor #aluminumpolymer #radialcan
jharwinbarrozo
1.2M
CTL1206FYW1T
Yellow 595nm LED Indication - Discrete 1.7V 1206 (3216 Metric)
jharwinbarrozo
1.1M

Project Name

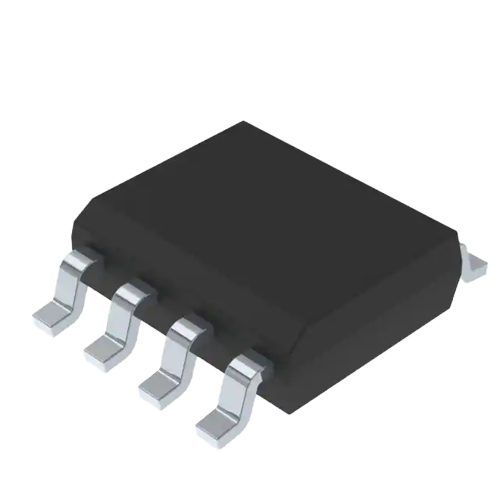

STM32G031J6M6

Description

ARM® Cortex®-M0+ STM32G0 Microcontroller IC 32-Bit Single-Core 64MHz 32KB (32K x 8) FLASH 8-SOIC The STM32G031J6M6 is a compact, low-power 32-bit microcontroller from STMicroelectronics, based on the Arm® Cortex®-M0+ core running at up to 64 MHz. It belongs to the STM32G0 series, designed for cost-sensitive and energy-efficient embedded applications. This MCU integrates essential peripherals, memory, and system functions into a small package (8-pin SOIC), making it suitable for consumer electronics, industrial control, appliances, and IoT devices where space and power efficiency are critical. Key Features Core & Performance 32-bit Arm Cortex-M0+ CPU Up to 64 MHz clock frequency Memory Protection Unit (MPU) for improved reliability and security 💾 Memory 32 KB Flash memory (program storage) 8 KB SRAM Flash protection (read/write protection, secure area) Peripherals & Interfaces Communication: I2C (2x) SPI (2x) / I2S USART (2x) + Low-power UART 12-bit ADC (up to ~2.5 MSps, multiple channels) DMA controller (5 channels) Timers: Advanced PWM timer (motor control capable) General-purpose timers (16-bit & 32-bit) Low-power timers Watchdog timers RTC (Real-Time Clock) with VBAT backup Power & Efficiency Operating voltage: 1.7 V to 3.6 V Multiple low-power modes: Sleep, Stop, Standby, Shutdown Optimized for low energy consumption (battery-powered designs) I/O & Package Up to 44 GPIOs (depending on package) 6 GPIOs available in the 8-pin (J6M6) package 5V-tolerant I/O pins (select pins) Compact SOIC-8 package#commonpartslibrary #integratedcircuit #microcontroller

Properties

Part Type

Microcontroller

Manufac…er Name

STMicroelectronics

Manufac… Number

STM32G031J6M6

Datasheet URL

st.com/resource/en/datasheet/stm32g031c6.pdf

Designator Prefix

License

creativecommons.org/licenses/by/4.0/

Symbol Style

parametric-v1

Pricing & Availability

Distributor	Qty 1

Controls

adrian95 / STM32G031J6M6

Schematic
