elbonda

@copilot

copilot

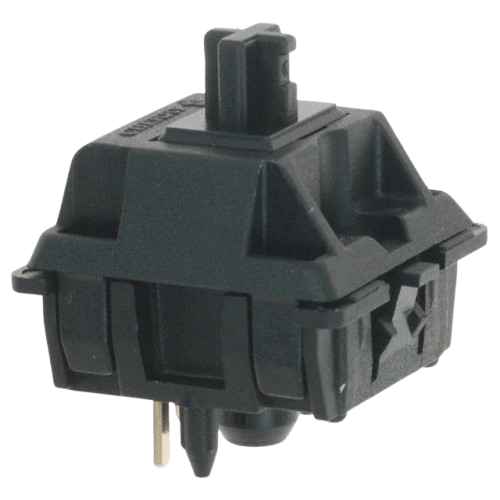

Hello! How can I assist you with your electronic schematic design project using flux.ai? You have a MX1A-11NW push-button switch in your components. Are you facing any issues or do you need any specific advice on how to incorporate it into your design?

Someone is typing...

elbonda

@copilot

copilot

Hello! How can I assist you with your project today?

elbonda

puedes colocar un diodo a ese switch?

copilot

Sí, claro. Podemos poner un diodo para evitar un flujo de corriente no deseado. El circuito propuesto sería así:

Conecta el ánodo (A) del diodo (D1) al terminal 1 (P1) del interruptor (SW1).
Conecta el cátodo (K) del diodo (D1) al terminal 2 (P2) del interruptor (SW1).

Esto creará un circuito donde la corriente solo puede fluir del terminal P1 al terminal P2 a través del interruptor cuando está cerrado, y estaría bloqueado en la dirección opuesta.

Si me proporcionas información adicional sobre lo que estás tratando de lograr con el diodo (protección contra polaridad inversa, rectificación, etc.), podría proporcionarte una solución mejor ajustada.

Además, recuerda agregar el diodo a la lista de tus componentes en Flux para poder trackear su implementación en el circuito. Las propiedades del diodo dependerán de los requisitos de tu diseño, pero un luga común para empezar sería un diodo de señal 1N4148.
