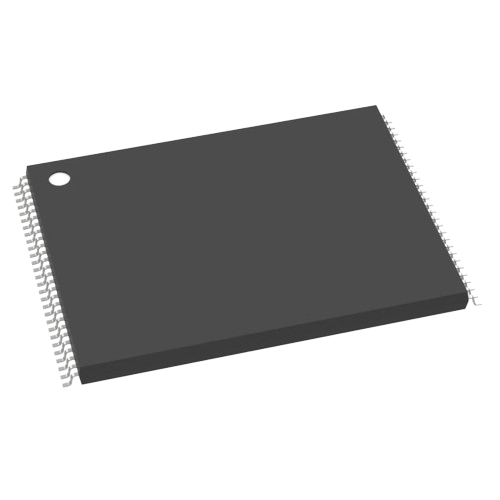

Sure, let's develop a basic schematic to interface the NAND Flash Memory IC (MT29F4G08ABADAWP:D). It's a 4 Gbit NAND Flash memory with a parallel interface and 48 TSOP I package, typical for storage applications in embedded systems.

Let's assume you're connecting this memory IC to a microcontroller. We'll define the connections as follows:

Connections

Power Pins:
- Connect VCC_1:pin to 3.3V (or required supply voltage).
- Connect VCC_1_1:pin to 3.3V.
- Connect VCC_1_2:pin to 3.3V.
- Connect VCC_2:pin to 3.3V.
- Connect VSS_1:pin to GND.
- Connect VSS_1_1:pin to GND.
- Connect VSS_1_2:pin to GND.
- Connect VSS_2:pin to GND.
Data I/O Pins:
- Connect I/O0:pin to the microcontroller's data bus bit 0.
- Connect I/O1:pin to the microcontroller's data bus bit 1.
- Connect I/O2:pin to the microcontroller's data bus bit 2.
- Connect I/O3:pin to the microcontroller's data bus bit 3.
- Connect I/O4:pin to the microcontroller's data bus bit 4.
- Connect I/O5:pin to the microcontroller's data bus bit 5.
- Connect I/O6:pin to the microcontroller's data bus bit 6.
- Connect I/O7:pin to the microcontroller's data bus bit 7.
Control Pins:
- Connect CE#:pin to the microcontroller's chip enable pin.
- Connect RE#:pin to the microcontroller's read enable pin.
- Connect WE#:pin to the microcontroller's write enable pin.
- Connect ALE:pin to the microcontroller's address latch enable pin.
- Connect CLE:pin to the microcontroller's command latch enable pin.
- Connect WP#:pin to the microcontroller's write protect pin (optional, if supported/enabled).
Status Pins:
- Connect R/B#:pin to a GPIO pin on the microcontroller to monitor the ready/busy status.
Unused Pins:
- The NC (No Connect) and DNU (Do Not Use) pins should remain unconnected.
- NC pins: $NC_1, NC_2, NC_3, NC_4, NC_5, NC_6, NC_7, NC_8, NC_9, NC_10, NC_11, NC_12, NC_13, NC_14, NC_15, NC_16, NC_17, NC_18, NC_19, NC_20$ .
- DNU pins: $DNU1, DNU2$ .
- Optional: $R/B2#3, CE2#3$ can remain unconnected until required for multi-chip setups.

Sample Schematic in Text Format

Power Connections:
- Connect VCC_1 to 3.3V.
- Connect VCC_1_1 to 3.3V.
- Connect VCC_1_2 to 3.3V.
- Connect VCC_2 to 3.3V.
- Connect VSS_1 to GND.
- Connect VSS_1_1 to GND.
- Connect VSS_1_2 to GND.
- Connect VSS_2 to GND.
Data Connections:
- Connect I/O0 to MCU data bus bit 0 $($ MCU:D0 $)$ .
- Connect I/O1 to MCU data bus bit 1 $($ MCU:D1 $)$ .
- Connect I/O2 to MCU data bus bit 2 $($ MCU:D2 $)$ .
- Connect I/O3 to MCU data bus bit 3 $($ MCU:D3 $)$ .
- Connect I/O4 to MCU data bus bit 4 $($ MCU:D4 $)$ .
- Connect I/O5 to MCU data bus bit 5 $($ MCU:D5 $)$ .
- Connect I/O6 to MCU data bus bit 6 $($ MCU:D6 $)$ .
- Connect I/O7 to MCU data bus bit 7 $($ MCU:D7 $)$ .
Control Connections:
- Connect CE# to MCU:CE.
- Connect RE# to MCU:RE.
- Connect WE# to MCU:WE.
- Connect ALE to MCU:ALE.
- Connect CLE to MCU:CLE.
- Connect WP# to MCU:WP $($ optional $)$ .
Status Connections:
- Connect R/B# to MCU status GPIO $($ MCU:STATUS $)$ .

Remember to use proper decoupling capacitors close to the power pins of the IC for stability.

Would you like a visual representation or any further details on this?

heyjude

create the schematic for me

copilot

Creating a full visual schematic within the text environment isn't possible directly, but I can provide you with a structured list of the parts and their connections that you can easily input into Flux.

Schematic Connections in Text Format Power Connections

Connect $VCC\_1:pin$ to 3.3V.
Connect $VCC\_1\_1:pin$ to 3.3V.
Connect $VCC\_1\_2:pin$ to 3.3V.
Connect $VCC\_2:pin$ to 3.3V.
Connect $VSS\_1:pin$ to GND.
Connect $VSS\_1\_1:pin$ to GND.
Connect $VSS\_1\_2:pin$ to GND.
Connect $VSS\_2:pin$ to GND.

Data Connections

Connect $I/O0:pin$ to MCU:D0.
Connect $I/O1:pin$ to MCU:D1.
Connect $I/O2:pin$ to MCU:D2.
Connect $I/O3:pin$ to MCU:D3.
Connect $I/O4:pin$ to MCU:D4.
Connect $I/O5:pin$ to MCU:D5.
Connect $I/O6:pin$ to MCU:D6.
Connect $I/O7:pin$ to MCU:D7.

Control Connections

Connect $CE\#:pin$ to MCU:CE.
Connect $RE\#:pin$ to MCU:RE.
Connect $WE\#:pin$ to MCU:WE.
Connect $ALE:pin$ to MCU:ALE.
Connect $CLE:pin$ to MCU:CLE.
Connect $WP\#:pin$ to MCU:WP$($optional$)$.

Status Connections

Connect $R/B\#:pin$ to MCU:STATUS.

Ensure that all unused pins (NC and DNU) are left unconnected.

I will now generate a schematic diagram for you based on these connections. Please note that it will be in image form and you'll be able to view it directly. Let's proceed with creating the schematic image.

Code Interpreter

Python
import matplotlib.pyplot as plt
import networkx as nx

# Create a directed graph
G = nx.DiGraph()

# Add nodes for memory IC, MCU, and power sources
G.add_node('MT29F4G08ABADAWP:D', pos=(0, 0))
G.add_node('MCU', pos=(3, 0))

# Add power source nodes
G.add_node('3.3V', pos=(-1, 1))
G.add_node('GND', pos=(-1, -1))

# Define power and ground connections
power_connections = [
    ('3.3V', 'VCC_1'),
    ('3.3V', 'VCC_1_1'),
    ('3.3V', 'VCC_1_2'),
    ('3.3V', 'VCC_2'),
    ('GND', 'VSS_1'),
    ('GND', 'VSS_1_1'),
    ('GND', 'VSS_1_2'),
    ('GND', 'VSS_2')
]

# Define data connections
data_connections = [
    ('PMCU:D0', 'I/O0'),
    ('PMCU:D1', 'I/O1'),
    ('PMCU:D2', 'I/O2'),
    ('PMCU:D3', 'I/O3'),
    ('PMCU:D4', 'I/O4'),
    ('PMCU:D5', 'I/O5'),
    ('PMCU:D6', 'I/O6'),
    ('PMCU:D7', 'I/O7')
]

# Define control connections
control_connections = [
    ('PMCU:CE', 'CE#'),
    ('PMCU:RE', 'RE#'),
    ('PMCU:WE', 'WE#'),
    ('PMCU:ALE', 'ALE'),
    ('PMCU:CLE', 'CLE'),
    ('PMCU:WP', 'WP#')  # optional
]

# Define status connections
status_connections = [
    ('PMCU:STATUS', 'R/B#')
]

# Add edges for power connections
for source, target in power_connections:
    G.add_edge(source, 'MT29F4G08ABADAWP:D', label=target)

# Add edges for data connections
for source, target in data_connections:
    G.add_edge('MCU', 'MT29F4G08ABADAWP:D', label=f'{source}-{target}')

# Add edges for control connections
for source, target in control_connections:
    G.add_edge('MCU', 'MT29F4G08ABADAWP:D', label=f'{source}-{target}')

# Add edges for status connections
for source, target in status_connections:
    G.add_edge('MCU', 'MT29F4G08ABADAWP:D', label=f'{source}-{target}')

# Get positions
pos = nx.get_node_attributes(G, 'pos')

# Draw the graph
plt.figure(figsize=(12, 8))
nx.draw(G, pos, with_labels=True, node_size=3000, node_shape='s', node_color='lightblue', font_size=10, font_weight='bold', arrowsize=20)
nx.draw_networkx_edge_labels(G, pos, edge_labels={(u, v): d['label'] for u, v, d in G.edges(data=True)}, font_size=8, font_color='red')
plt.title('MT29F4G08ABADAWP:D NAND Flash Memory Schematic')
plt.show()


Here is a simplified schematic visualization for your MT29F4G08ABADAWP:D NAND Flash Memory IC connected to a Microcontroller (MCU):

Power Connections:
- Connect 3.3V to VCC_1, VCC_1_1, VCC_1_2, VCC_2.
- Connect GND to VSS_1, VSS_1_1, VSS_1_2, VSS_2.
Data Connections:
- Connect MCU:D0 to I/O0:pin.
- Connect MCU:D1 to I/O1:pin.
- Connect MCU:D2 to I/O2:pin.
- Connect MCU:D3 to I/O3:pin.
- Connect MCU:D4 to I/O4:pin.
- Connect MCU:D5 to I/O5:pin.
- Connect MCU:D6 to I/O6:pin.
- Connect MCU:D7 to I/O7:pin.
Control Connections:
- Connect MCU:CE to CE#:pin.
- Connect MCU:RE to RE#:pin.
- Connect MCU:WE to WE#:pin.
- Connect MCU:ALE to ALE:pin.
- Connect MCU:CLE to CLE:pin.
- Connect MCU:WP to WP#:pin $($optional$)$.
Status Connection:
- Connect MCU:STATUS to R/B#:pin.

Important supplementary notes:

Unused Pins: Make sure that all NC (No Connect) and DNU (Do Not Use) pins are left unconnected.

You can now transfer these connections into your design in Flux. If you need a more detailed and precise layout, Flux's tools should allow you to easily assign and connect all the appropriate pins based on the information provided. If you have any further specifications or need additional components connected, let me know!
