explain this project.

harshap

@copilot explain this project.

copilot

This project appears to be in the early stages of designing an adjustable linear voltage regulator circuit using the LM317HVT-NOPB IC from Texas Instruments. The IC is capable of outputting a voltage from 1.2V to 57V and can handle up to 1.5A.

Here are the components listed in the project:

LM317HVT-NOPB (U): This is the Linear Voltage Regulator IC. It has 3 pins:
- ADJ: This is the adjustment pin which is usually connected to the ground via a resistive divider. This pin governs the output voltage.
- VI: This is the voltage input pin, and it's here you would inject your source voltage.
- VO: This is the voltage output pin, from which you get your regulated output voltage.

Please note that no connections have been defined yet, although the pin names and component designators have been specified.

A typical linear regulator circuit using the LM317 chip includes a couple of resistors and capacitors for setting the output voltage and smoothing out the regulator's output, respectively.

Since no connections are made yet, the next step would be to define the connections and add additional components such as resistors, capacitors, and any other required components based on your desired regulator circuitry and your overall project needs.

Remember that while designing a voltage regulator circuit, the value of resistors and capacitors will depend on the desired output voltage and current requirements as well as the characteristics of your input supply.

For a complete circuit, you will also need to consider proper thermal design, as the LM317 can carry up to 1.5 Amp and might require a heat sink for dissipation. The heat sink design will depend on the voltage differences (input-output) and the load current.

Someone is typing...

Check that all reset/enable have an external pull-up or pull-down resistors. Rep...

jsuarezch

@copilot Check that all reset/enable have an external pull-up or pull-down resistors. Report action items in an ordered list.

copilot

I see that your project involves an LM317HVT-NOPB, which is a linear voltage regulator IC. As it turns out, this component doesn't have any reset or enable pins which would require pull-up or pull-down resistors.

However, if you add more components to your project that do have reset or enable lines, remember to include pull-up or pull-down resistors to maintain the stability of these lines. This is often done to prevent unintended state changes due to electrical noise. A common value for these resistors is around 10k Ω, but the specific value can change depending on the rest of your circuit's design.

Here's the action list as per your request:

Verify if any newly added components to the project have reset or enable pins.
For each reset or enable pin, determine whether a pull-up or pull-down resistor is appropriate based on the pin's active state (active HIGH indicates a pull-up resistor; active LOW indicates a pull-down resistor).
Add the required pull-up or pull-down resistors to your schematic. A common starting point for their values is 10k Ω, but you should adjust this value based on your specific design requirements.
Make necessary modifications in the Flux layout accordingly.
Validate the above modifications by rerunning the design checks/rules in Flux.

Someone is typing...

explain this project.

rdelafg

@copilot explain this project.

copilot

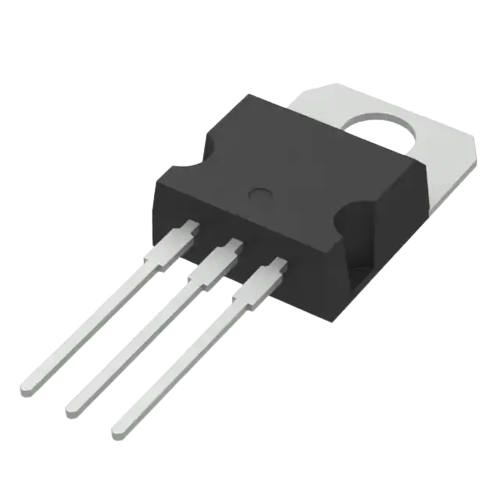

This project involves the design of a circuit using the LM317HVT-NOPB, which is a linear voltage regulator IC from Texas Instruments. The LM317HVT-NOPB is capable of outputting an adjustable voltage ranging from 1.2V to 57V, with a maximum output current of 1.5A. It comes in a TO-220-3 package, which is common for power devices that require moderate levels of heat dissipation. This regulator is part of the #CommonPartsLibrary, indicating it is a widely used component in various power management applications.

Project Summary:

Component Used: Linear Voltage Regulator IC, LM317HVT-NOPB.
Adjustability: This voltage regulator can output an adjustable voltage in the range of 1.2V to 57V.
Output Current: Up to 1.5A.
Package: TO-220-3, suitable for applications requiring moderate heat dissipation.
License: The project is under the $\text{Creative Commons Attribution 4.0 International License}$ [https://creativecommons.org/licenses/by/4.0/].
Manufacturer: Texas Instruments.
Designator Prefix for IC: U, which is typically used for integrated circuits.

Project Components:

ADJ (Adjust Pin):
- Pins: 1
- Terminal Type: INPUT
- Pin Number: 1
- Pin Type: Unspecified
- Designator Prefix: P
VI (Voltage Input Pin):
- Pins: 1
- Terminal Type: powerIn
- Pin Number: 3
- Pin Type: Unspecified
- Designator Prefix: P
VO (Voltage Output Pin):
- Pins: 1
- Terminal Type: powerOut
- Pin Number: 2
- Pin Type: Unspecified
- Designator Prefix: P

Key Notes:

The project is at an initial stage, with the LM317HVT-NOPB identified as the core component for a variable voltage power supply.
No electrical connections have been made yet in this schematic.
The framing of the project suggests a focus on establishing the proper connections for power input, adjustable voltage setting, and power output, as laid out by the component pins description.

To proceed with the project, electrical connections would need to be defined, including the feedback loop for the ADJ pin to set the desired output voltage, input power connections, and output connections. Additionally, considering the regulator's adjustability feature, external components like resistors will likely be needed to set the output voltage accurately.
