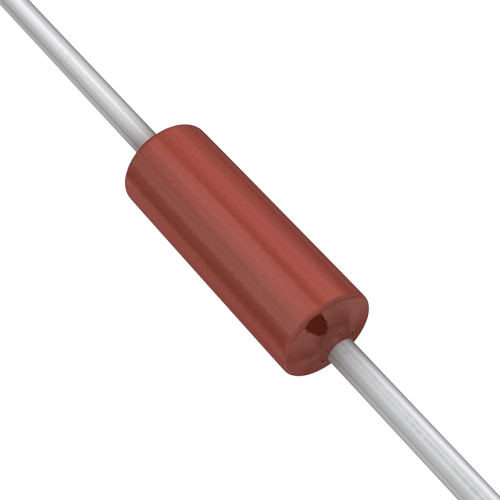

CMF60150K00FHEK

CMF60150K00FHEK
Description

Created
Last updated by adrian95
1 Contributor(s)
adrian95

Controls

Properties

Resistance
150k Ω
Part Type
Resistor
Manufacturer Name
Vishay Dale
Manufacturer Part Number
CMF60150K00FHEK
Designator Prefix
R

Availability & Pricing

DPNStockQty 1
10$2.854
10$2.4306
14.3K$0.84
11K$0.1314
