create a design to interface lv25p and la55p with ads8861 for 1msps , another ads8861 fo 10ksps, mcp3202 for 100ksps and mcp3202 for 50ksps it shuld have 4 sampling frequency otions and give to an stm32h742iit6 with sd card storage a usb b tyt[pe fort for programming and data logging and nrf7002 and nrf5340 for bluetooth and wifi and add lora and a battery management system

flux

You want a new STM32H742IIT6-based data-acquisition and wireless logging board with LV25-P/LA55-P inputs, 4 selectable sampling rates, SD, USB-B, Wi‑Fi/Bluetooth, LoRa, and battery management.
  • I’ve prepared the plan for that design.
  • This page is a part project, so the best next step is to start it in a new project here: Create new project
  • After opening it, click Start on the plan bar.
Use SPI ADCs
Add input protection
Define power tree
slaconsay

slaconsay

Create me a DSP Audio board. A guitar effects pedal with 6 potentiometers. The board should be based on STM32 H7
Sign up to send
explain this project.
willworknow

willworknow

@copilot explain this project.
1y

copilot

Sure! This project involves the STM32H743XIH6 microcontroller, which is an ARM® Cortex®-M7 32-bit microcontroller by STMicroelectronics. The STM32H7 series is known for high performance, integrating a high clock frequency of 480 MHz and abundant flash memory (2MB in this case).
Key points:
  • Microcontroller: STM32H743XIH6
  • Package: 240+25-TFBGA (14x14) (a small ball grid array package, suitable for high-density PCB designs)
Design Breakdown Power Pins:
  • VDD: Multiple pins for core voltage (typically 3.3V).
  • VSS: Ground pins.
  • VDDA/VSSA: Analog supply and ground, respectively.
  • VBAT: Backup battery supply for the RTC (Real-Time Clock) and standby domain.
  • VCAP1/VCAP2/VCAP3: Capacitor pins for internal voltage regulators.
GPIOs:
  • The microcontroller has a diverse set of bi-directional pins (labeled PAx, PBx, PCx, etc.), which are used for interfacing with peripherals. These pins can function as general I/O or be configured for specific alternate functions such as UART, SPI, I2C, etc.
  • BOOT0: Used to select the boot mode during reset.
  • NRST: Reset pin.
  • PDR_ON: Power-down reset on.
Not Connected (NC):
  • Some pins are marked as NC (not connected), meaning they are not used in this design.
Tasks To Do
Since "No electrical connections have been made in this project yet", you'll need to:
  1. Power Connections: Ensure all VDD, VSS, VDDA, and VSSA pins are appropriately connected to their respective power supplies.
  2. Capacitors: Place capacitors on VCAP1/2/3 pins as recommended by the manufacturer’s datasheet.
  3. Backup Supply: Connect VBAT to a battery or a backup power source.
  4. IO Configuration: Determine the functions (GPIO, UART, SPI, etc.) needed and configure the respective pins.
  5. Boot and Reset: Connect BOOT0 and NRST pins logically to facilitate programming and reset functionalities.
Example: Power Connections
For instance, the connections for the power pins might look something like:
- Connect external 3.3V to all VDD pins.
- Connect GND to all VSS pins.
- Connect specific capacitors to VCAP1, VCAP2, and VCAP3 as per the datasheet (typically 1uF).
- Connect 3.3V analog supply to VDDA and ground to VSSA.
- Connect a 3V coin cell battery to VBAT.
Example: GPIO Setup
For GPIO configuration, assume we want some pins for UART communication:
- PA2 $USART2\_TX$ to TX of UART device.
- PA3 $USART2\_RX$ to RX of UART device.
More specific connections will depend on your application requirements.
Assumptions
Given the lack of specific details about the end application, the initial assumptions are based on typical use cases of STM32H7 microcontrollers. Please provide further information if there are specific peripherals, communication protocols, or functionalities you need to integrate.
Do these explanations align with your project intentions, or are there specific aspects you would like more detail on?
1y
Someone is typing...
2

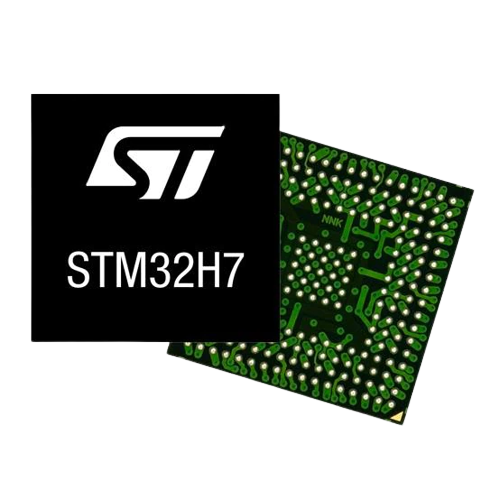

STM32H743XIH6

STM32H743XIH6 thumbnail
ARM® Cortex®-M7 STM32H7 Microcontroller IC 32-Bit 480MHz 2MB (2M x 8) FLASH 240+25-TFBGA (14x14) #microcontrollers #stm32 #commonpartslibrary

Properties

Microcontroller

STMicroelectronics

STM32H743XIH6

st.com/resource/en/datasheet/stm32h743bi.pdf
