You can be brand‑new. We’ll take it step‑by‑step and you’ll get working results quickly. Based on Flux knowledge base guidance, I’ll keep this beginner‑friendly with small, testable milestones.
Quick starter plan
  1. Hello‑world with one Hall sensor
  • Parts: A3213ELHLT‑T, one pull‑up 10k Resistor, one bypass 100nF Capacitor, optional output filter 10nF Capacitor.
  • Wire on a breadboard to a 3.3 V or 5 V MCU board:
    • VDD to 3.3 V or 5 V; GND to GND.
    • VOUT to a digital input, with 10 kΩ pull‑up to your logic rail.
    • Place 0.01–0.1 µF between VDD and GND right at the sensor. Optional 0.01 µF from VOUT to GND for noise.
  • Why: Per the A3213 datasheet, VDD operates from 2.4–5.5 V and the output is a current‑sinking transistor that “is capable of sinking up to 1 mA,” so a pull‑up is required; it also recommends a 0.01–0.1 µF bypass at VDD and notes an optional 0.01 µF on VOUT.
  1. Add the second Hall for quadrature
  • Mount both sensors on the same radius and offset their sensing centers by about 3.93 mm along the tangent (your 80 mm PCD with 16 magnets). Test that A leads B in one direction and lags in the other. Use simple code to count edges and determine direction.
  1. Make the small 12 × 25 mm sensor PCB
  • Include the two A3213s, two 10 kΩ pull‑ups, two 100 nF bypass caps, optional 10 nF output caps, and a 4‑pin connector like S4B‑PH‑K‑S(LF)(SN) for V+, GND, A, B.
  • Keep traces short from sensor to connector; put the bypass caps next to each sensor. Add mounting slots to fine‑tune the 3.93 mm offset on first build.
  1. Load cell “hello‑world” with your ADC
  • ADC: ADS1232IPW.
  • Supplies (datasheet): AVDD and DVDD each 2.7–5.3 V (recommended operating conditions).
  • Connect the S‑type bridge ratiometrically:
    • Bridge Exc+ to REFP, Exc− to REFN; place 0.1 µF directly between REFP and REFN at the ADC.
    • Bridge Sense+ to AINP1, Sense− to AINN1.
    • To the MCU: DRDY/DOUT and SCLK; set pins for gain and data rate (start with G=128, 10 SPS).
  • Performance anchor (datasheet): noise‑free resolution is 18.4 bits at 10 SPS, 17.2 bits at 80 SPS (AVDD=VREF=5 V, G=128).
  • Best‑practice note from the knowledge base: if you add input RC filters, match the time constants on both differential legs so common‑mode noise cancels properly.
Minimal tools you’ll need
  • A 3.3 V (or 5 V) microcontroller dev board, a solderless breadboard, jumper wires, a USB power source, and a basic multimeter.
Your next tiny steps
  • Tell me which logic rail you’ll use on the sensor board (3.3 V or 5 V).
  • I’ll give you a one‑page wiring diagram for the single‑sensor test and a few lines of sample code to see pulses.
  • When you’re ready, say “create the dual‑Hall 12×25 mm PCB,” and I’ll draft the board with the parts above and the JST‑PH connector, ready for you to review.
29 days
Is this project private?
29 days

1:13

General
Chat History
Project
Help
Knowledge Base

Evaluating project privacy inquiries.

Determining privacy and sharing settings.

Using Knowledge Base Tool.

Reading docs for: "How to check if a Flux project is private, how to view and change project sharing permissions to public/private, and where the controls are in the UI."

Following output guidelines.

Here’s what the Flux documentation says about private vs public projects:
“Projects and parts are considered private when they can be accessed only by you or individually selected people. To keep projects private, the option ‘PRIVATE - Only you can view an edit’ must be selected in the share dialog. You can still add people individually through the Advanced menu.
To quickly find out if a project is private, look for a padlock icon next to the share button.
Note: new projects are private by default.” Source
Ask how to check
Ask about collaborators
Ask about changing visibility
Ask about components visibility
Ask about org-wide access
29 days

Ready.


please explain what U4 does.

@copilot please explain what U4 does.
1y
The component U4U4 in your project is an XC7S25-1CSGA324I, which is a Spartan-7 FPGA from AMD. Here are some key functions and applications of this component:
  • Programmable Logic Device: FPGAs are programmable logic devices that can be configured to perform complex logic operations and algorithms. They are used to implement digital circuits and can be reprogrammed to adapt to new tasks.
  • High-Speed Operations: The Spartan-7 series is designed for high-speed and efficient processing, making it suitable for applications involving real-time data processing, signal processing, and communications.
  • I/O Support: This FPGA provides extensive I/O capabilities, allowing for the interfacing with various peripherals and devices. It supports numerous pins that can be configured for input or output operations.
  • Memory Interface: The FPGA can interface with external memory devices like DDR memory, which is crucial for applications that require large amounts of data storage and fast data retrieval.
  • Low Power Consumption: The Spartan-7 family is known for its low power consumption, which is advantageous in power-sensitive applications, such as portable or battery-operated devices.
  • Security Features: It includes features for secure boot and encryption, beneficial in applications where data security is a concern.
Given these features, the XC7S25-1CSGA324I FPGA in your project likely serves as the brain of the Spartan AI Accelerator, handling complex computations required for AI tasks while interfacing with other components like I/O and memory. If you have more specific applications in your design, feel free to share!
1y
Someone is typing...
explain this project.

@copilot explain this project.
1y

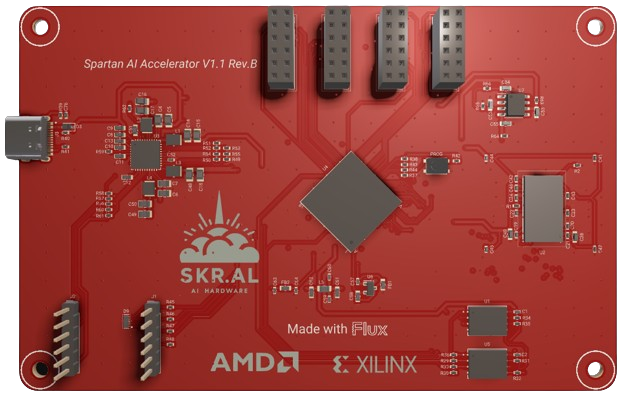

The project is called the "Spartan AI Accelerator," designed to enhance artificial intelligence processing capabilities using an AMD Spartan-7 FPGA. The project is optimized for size, cost, and performance, leveraging the FPGA's capabilities to handle efficient AI tasks while supporting extensive I/O and DDR memory interfacing for high-speed computations.
Key Components:
    • Central processing unit for AI tasks. It handles various I/O and connects to DDR memory for high-speed computations.
    • Provides fast DDR memory access essential for complex AI algorithms.
  • Flash Memory: S25FL128SAGNFI000
    • Used for storing firmware and accelerating boot processes of the FPGA.
  • Voltage Regulator: AP2303MPTR-G1
    • Provides stable power supply necessary for FPGA and memory operation.
  • Inductors and Capacitors:
    • Various capacitors (from 0.1μF to 100μF) and inductors (1μH) are used for power smoothing, decoupling, and stabilization across the PCB.
  • Connectors:
    • Includes multiple connectors and nets for interfacing with external devices, likely facilitating high-speed communication and data processing.
  • Protection and Connectivity:
    • ESD diodes like the ESD8104MUTAG ensure device protection against electrostatic discharge, especially important in high-speed data transfer interfaces like USB and Type-C connectors like TYPE-C-31-M-12.
Design:
  • The project contains numerous resistors configured mostly in standard values like 10kΩ or 56kΩ for pull-ups or pull-downs, which are common practice in designing stable and reliable digital circuits connected to FPGAs.
  • The involvement of nets, ions, and pins shows a complex circuit designed to interface with different components, handling multiple signals at high bandwidths.
Additional Functionalities:
  • Power and signal conditioning components like LDOs, GPIOs managed by elements such as DA9062-00AM2 are included to ensure the FPGA functions correctly under different loads and logic levels.
The Spartan AI Accelerator's architecture enables it to perform efficiently across AI tasks by combining high-speed logic processing with robust support circuitry, enhancing its capability as a compact, cost-effective AI computation module.
1y
Someone is typing...
4
please explain what R59, C12, U3, XADCVREF, C11, C58 do.

@copilot please explain what R59, C12, U3, XADCVREF, C11, C58 do.
1y
Certainly! Let's break down the components and their roles in your Spartan AI Accelerator project:
  • R59 (200k-ohm resistor): Connected to the IREF pin of the PMIC (U3), typically used as a reference current setting. This resistor value might define a specific current output or function for the PMIC.
  • C12 (470nF capacitor): Connected to VBBAT pin of U3, this capacitor is likely used for stabilizing the input voltage by filtering out noise or transient signals that might affect the PMIC's performance.
  • U3 (PMIC - DA9062-00AM2): This is a Power Management IC from Renesas, used for providing various voltage levels. It includes multiple LDOs, buck converters, and other control functions. It is central to managing the power distribution and regulation in your circuit.
  • XADCVREF (Reference Voltage Net): This is commonly a reference voltage for ADC (Analog-to-Digital Converter) operations. It provides a stable reference against which analog signals are measured.
  • C11 (2.2uF capacitor): Typically used for decoupling/filtering purposes. In this case, it's connected to the VREF pin of the PMIC, ensuring a stable reference voltage output without voltage ripple.
  • C58 (10uF capacitor): Often larger capacitors like this are used for smoothing and removing low-frequency noise from power lines, especially important for sensitive circuits like those needing ADC reference voltage stability.
What these components collectively do:
This set of components forms part of the power management and regulation section in your design. Together, they ensure that your power supply is stable, filtered, and noise-free, which is critical for reliable and accurate operation, particularly in systems leveraging ADCs or other precision modules. Does that make sense for your design intent? Any particular part you need more insights on?
1y
Someone is typing...
2
How work this device?

@copilot How work this device?
1y
The Spartan AI Accelerator is designed around the AMD Spartan-7 FPGA, facilitating efficient AI processing with optimized size, cost, and performance. The core functionalities are centered on the integration and interaction between various components:
  1. FPGA (Field Programmable Gate Array): The main component is the XC7S25-1CSGA324I, responsible for processing and handling AI tasks. FPGAs are highly flexible and can be programmed to perform complex algorithms efficiently.
  2. Memory Interfacing: The design includes the MT41K256M16TW-107:P DDR memory, which supports high-speed data transfer and storage, critical for AI computations that demand rapid access to large datasets.
  3. Power Management: The design incorporates voltage regulators like the AP2303MPTR-G1 and references like the REF3012AIDBZR to ensure stable power delivery to sensitive components.
  4. Peripheral Connections: Various nets, such as QSPI interfaces for non-volatile memory (S25FL128SAGNFI000), allow for the storage of configuration and data.
  5. Protection and Filtering: Components like the ESD8104MUTAG provide electrostatic discharge protection to safeguard the device against voltage spikes in I/O connections.
  6. External Interfaces: The design includes connectors for external interaction, including USB and other interfaces for programming and communication.
This device is aimed at providing a flexible platform for AI acceleration, supporting extensive I/O and high-speed computation typical of AI workloads.
If you have specific questions about functionality or need details about a particular component's role, feel free to ask!
1y
Someone is typing...
5
DDR_A6
DDR_BA1
DDR_A8
DDR_A14
DDR_RESETN
DDR_A1
